Brida Prensar Codo 90 3000 Psi VITILLO

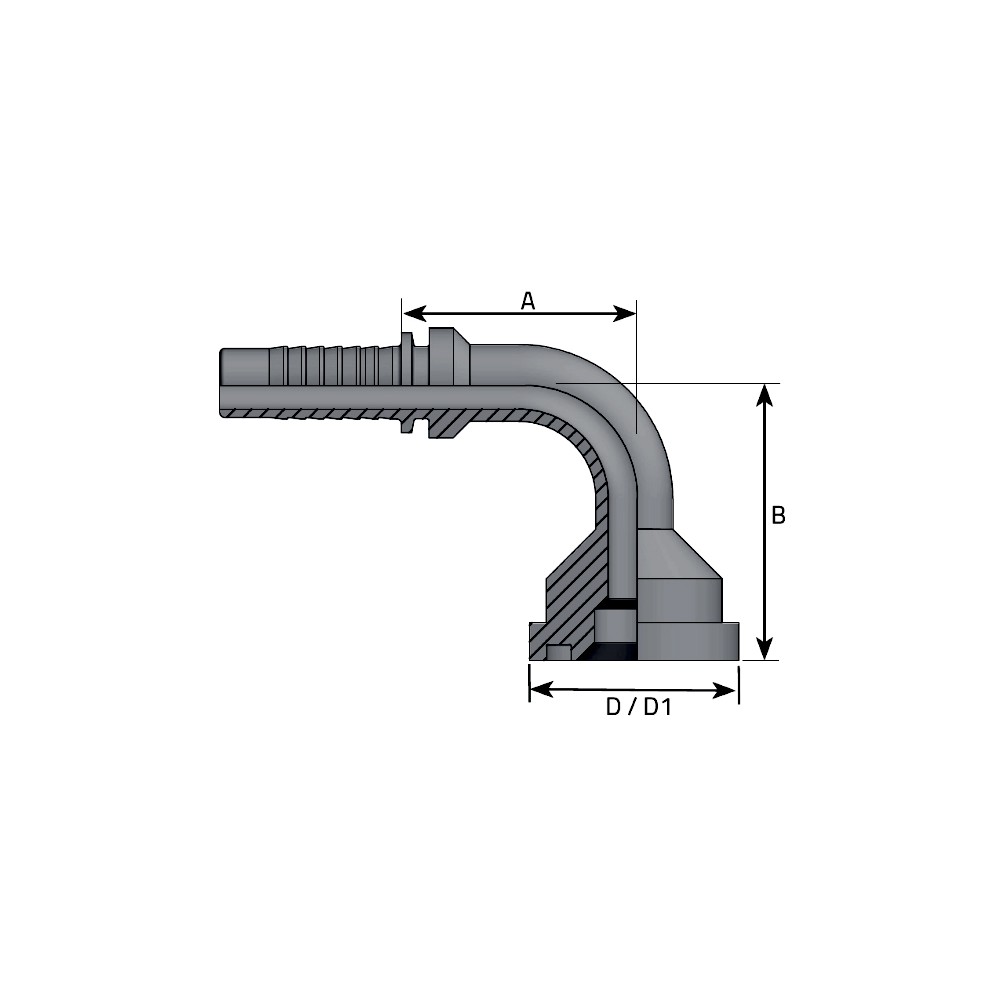

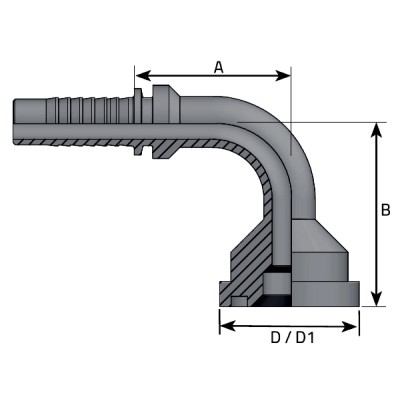

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo	Diametro	Diametro 1	Para Manguera	Nota
06630-08-08	F90L0808I	13	39 mm	43 mm	350 bar 5075 psi	1/2"	30,2 mm	12,8 mm 1/2"	—
06630-08-10	F90L0810I	13	39 mm	47 mm	350 bar 5075 psi	5/8"	34 mm	12,8 mm 1/2"	*
06630-08-12	F90L0812I	13	39 mm	50 mm	350 bar 5075 psi	3/4"	38,1 mm	12,8 mm 1/2"	—
06630-10-08	F90L1008I	16	49 mm	49 mm	350 bar 5075 psi	1/2"	30,2 mm	16 mm 5/8"	—
06630-10-12	F90L1012I	16	49 mm	55 mm	350 bar 5075 psi	3/4"	38,1 mm	16 mm 5/8"	—
06630-12-08	F90L1208I	20	57 mm	52 mm	350 bar 5075 psi	1"	30,2 mm	19 mm 3/4"	—
06630-12-12	F90L1212I	20	57 mm	58 mm	350 bar 5075 psi	3/4"	38,1 mm	19 mm 3/4"	—
06630-12-16	F90L1216I	25	57 mm	62 mm	350 bar 5075 psi	1"	44,5 mm	25,4 mm 1"	—
06630-16-12	F90L1612I	25	77 mm	60 mm	280 bar 4060 psi	3/4"	38,1 mm	25,4 mm 1"	—
06630-16-16	F90L1616I	25	77 mm	64 mm	280 bar 4060 psi	1"	44,5 mm	25,4 mm 1"	—
06630-16-20	F90L1620I	25	77 mm	70 mm	280 bar 4060 psi	1" 1/4	50,8 mm 2"	25,4 mm 1"	—
06630-20-16	F90L2016I	32	89 mm	82 mm	210 bar 3045 psi	1"	44,5 mm	31,8 mm 1" 1/4	—
06630-20-20	—	32	89 mm	87 mm	210 bar 3045 psi	1" 1/4	50,8 mm 2"	31,8 mm 1" 1/4	—
06630-20-24	F90L2024I	32	89 mm	88 mm	210 bar 3045 psi	1" 1/2	60,3 mm	31,8 mm 1" 1/4	—
06630-24-24	F90L2424I	38	101 mm	102 mm	185 bar 2683 psi	1" 1/2	60,3 mm	38,1 mm 1" 1/2	—
06630-24-32	F90L2432I	38	101 mm	118 mm	185 bar 2683 psi	2"	71,4 mm	38,1 mm 1" 1/2	—
06630-32-32	F90L3232I	50	144 mm	120 mm	170 bar 2466 psi	2"	71,4 mm	50,8 mm 2"	—
06630-32-40	—	—	—	—	—	—	—	50,8 mm 2"	—
