Ref.	Ref. Vitillo	D.N.	A	P. Trabajo	Diametro	Hexágono	Para Manguera	Rosca
06323-03-14	FE0314S6	5	1"	420 bar 6100 psi	6 mm	19 mm	4,8 mm 3/16"	M 14
06323-03-16	FE0316S8	5	1"	420 bar 6100 psi	8 mm	19 mm	4,8 mm 3/16"	M 16
06323-04-14	FE0414S6	6	1"	450 bar 6500 psi	6 mm	17 mm	6,4 mm 1/4"	M 14
06323-04-16	FE0416S8	6	26 mm	450 bar 6500 psi	8 mm	19 mm	6,4 mm 1/4"	M 16
06323-04-18	FE0418S10	6	26 mm	450 bar 6500 psi	10 mm	22 mm	6,4 mm 1/4"	M 18
06323-04-20	FE0420S12	6	26 mm	450 bar 6500 psi	12 mm	24 mm	6,4 mm 1/4"	M 20
06323-05-18	FE0518S10	8	26,5 mm	350 bar 5075 psi	10 mm	22 mm	7,9 mm 5/16"	M 18
06323-05-20	FE0520S12	8	26 mm	350 bar 5075 psi	12 mm	24 mm	7,9 mm 5/16"	M 20
06323-06-18	FE0618S10	10	26,5 mm	450 bar 6500 psi	10 mm	22 mm	9,5 mm 3/8"	M 18
06323-06-20	FE0620S12	10	26,5 mm	450 bar 6500 psi	12 mm	24 mm	9,5 mm 3/8"	M 20
06323-06-22	FE0622S14	10	27 mm	450 bar 6500 psi	14 mm	27 mm	9,5 mm 3/8"	M 22
06323-08-22	FE0822S14	13	27,5 mm	420 bar 6100 psi	14 mm	27 mm	12,8 mm 1/2"	M 22
06323-08-24	FE0824S16	13	32 mm	420 bar 6100 psi	16 mm	30 mm	12,8 mm 1/2"	M 24
06323-10-24	FE1024S16	16	35 mm	420 bar 6100 psi	16 mm	30 mm	16 mm 5/8"	M 24
06323-10-30	FE1030S20	16	37 mm	350 bar 5075 psi	20 mm	36 mm	16 mm 5/8"	M 30
06323-12-30	FE1230S20	10	37,5 mm	350 bar 5075 psi	20 mm	36 mm	9,5 mm 3/4"	M 30
06323-12-36	FE1236S25	20	38,5 mm	350 bar 5075 psi	25 mm	46 mm	19 mm 3/4"	M 36
06323-16-36	FE1636S25	25	39,5 mm	280 bar 4060 psi	25 mm	46 mm	25,4 mm 1"	M 36
06323-16-42	FE1642S30	25	40,5 mm	280 bar 4060 psi	30 mm	50 mm	25,4 mm 1"	M 42
06323-20-42	FE2042S30	32	41,5 mm	210 bar 3045 psi	30 mm	50 mm	31,8 mm 1" 1/4	M 42
06323-20-52	FE2052S38	32	47 mm	210 bar 3045 psi	38 mm	60 mm	31,8 mm 1" 1/4	M 52
06323-24-52	FE2452S38	38	47 mm	185 bar 2683 psi	38 mm	60 mm	38,1 mm 1" 1/2	M 52

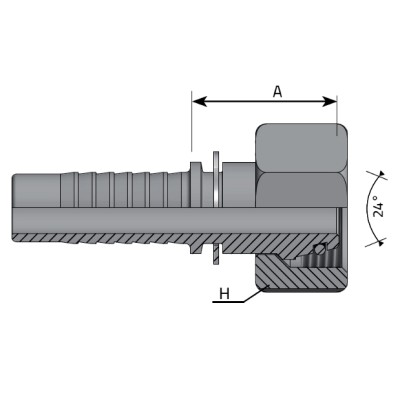

Hembra Recta Prensar 24 Serie S VITILLO
