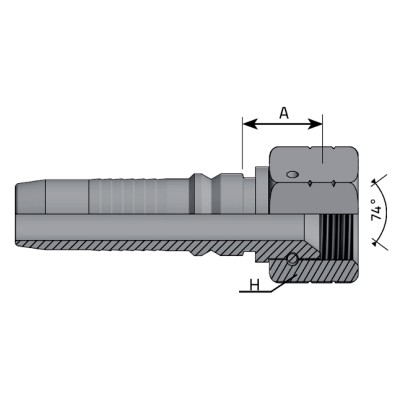

Hembra Recta Prensar INTERLOCK JIC VITILLO

Ref.	Ref. Vitillo	D.N.	A	P. Trabajo	Hexágono	Para Manguera	Rosca
H6220-12-12	KFDJ1212	20	20,5 mm	420 bar 6100 psi	32 mm	19 mm 3/4"	1" 1/16
H6220-12-14	KFDJ1214	20	20,5 mm	420 bar 6100 psi	36 mm	19 mm 3/4"	1" 3/16
H6220-12-16	KFDJ1216	20	20,5 mm	420 bar 6100 psi	41 mm	19 mm 3/4"	1" 5/16
H6220-16-16	KFDJ1616	25	22 mm	414 bar 6004 psi	41 mm	25,4 mm 1"	1" 5/16
H6220-16-20	KFDJ1620	25	26 mm	414 bar 6004 psi	50 mm	25,4 mm 1"	1" 5/8
H6220-20-20	KFDJ2020	32	27,5 mm	414 bar 6004 psi	50 mm	31,8 mm 1" 1/4	1" 5/8
H6220-20-24	KFDJ2024	32	29,5 mm	414 bar 6004 psi	55 mm	31,8 mm 1" 1/4	1" 7/8
H6220-24-24	KFDJ2424	38	29,5 mm	345 bar 5004 psi	55 mm	38,1 mm 1" 1/2	1" 7/8
H6220-32-32	KFDJ3232	50	33 mm	345 bar 5004 psi	70 mm	50,8 mm 2"	2" 1/2
