Ref.	Ref. Vitillo	D.N.	A	P. Trabajo	Hexágono	Para Manguera	Rosca
06210-03-04	MJ0304	5	27 mm	415 bar 6010 psi	12 mm	4,8 mm 3/16"	7/16"
06210-03-05	MJ0305	5	27 mm	415 bar 6010 psi	12 mm	4,8 mm 3/16"	1/2"
06210-04-04	MJ0404	6	27 mm	450 bar 6500 psi	12 mm	6,4 mm 1/4"	7/16"
06210-04-05	MJ0405	6	27 mm	450 bar 6500 psi	14 mm	6,4 mm 1/4"	1/2"
06210-04-06	MJ0406	6	28 mm	450 bar 6500 psi	15 mm	6,4 mm 1/4"	9/16"
06210-05-05	MJ0505	8	27 mm	350 bar 5075 psi	14 mm	7,9 mm 5/16"	1/2"
06210-05-06	—	8	28 mm	350 bar 5075 psi	15 mm	7,9 mm 5/16"	9/16"
06210-05-07	MJ0507	8	29,5 mm	—	17 mm	7,9 mm 5/16"	5/8"
06210-05-08	MJ0508	8	29,5 mm	350 bar 5075 psi	19 mm	7,9 mm 5/16"	3/4"
06210-06-06	MJ0606	10	28 mm	450 bar 6500 psi	15 mm	9,5 mm 3/8"	9/16"
06210-06-07	MJ0607	10	29,5 mm	—	17 mm	9,5 mm 3/8"	5/8"
06210-06-08	MJ0608	10	30,5 mm	415 bar 6010 psi	19 mm	9,5 mm 3/8"	3/4"
06210-06-10	MJ0610	10	34,5 mm	350 bar 5075 psi	24 mm	9,5 mm 3/8"	7/8"
06210-08-08	MJ0808	13	31 mm	415 bar 6010 psi	19 mm	12,8 mm 1/2"	3/4"
06210-08-10	MJ0810	13	35 mm	350 bar 5075 psi	24 mm	12,8 mm 1/2"	7/8"
06210-08-12	MJ0812	13	39,5 mm	350 bar 5075 psi	27 mm	12,8 mm 1/2"	1" 1/16
06210-10-10	MJ1010	16	35 mm	350 bar 5075 psi	24 mm	16 mm 5/8"	7/8"
06210-10-12	MJ1012	16	39,5 mm	350 bar 5075 psi	27 mm	16 mm 5/8"	1" 1/16
06210-12-10	MJ1210	20	37 mm	350 bar 5075 psi	27 mm	19 mm 3/4"	7/8"
06210-12-12	MJ1212	20	40,5 mm	350 bar 5075 psi	27 mm	19 mm 3/4"	1" 1/16
06210-12-14	MJ1214	20	41,5 mm	280 bar 4060 psi	32 mm	19 mm 3/4"	1" 3/16
06210-12-16	MJ1216	20	41,5 mm	280 bar 4060 psi	34 mm	19 mm 3/4"	1" 5/16
06210-16-12	MJ1612	25	41,5 mm	280 bar 4060 psi	32 mm	25,4 mm 1"	1" 1/16
06210-16-16	MJ1616	25	42,5 mm	280 bar 4060 psi	34 mm	25,4 mm 1"	1" 5/16
06210-16-20	MJ1620	25	45 mm	280 bar 4060 psi	42 mm	25,4 mm 1"	1" 5/8
06210-20-20	MJ2020	32	45,5 mm	210 bar 3045 psi	42 mm	31,8 mm 1" 1/4	1" 5/8
06210-20-24	MJ2024	32	52,5 mm	140 bar 2030 psi	50 mm	31,8 mm 1" 1/4	1" 7/8
06210-24-24	MJ2424	38	52,5 mm	140 bar 2030 psi	50 mm	38,1 mm 1" 1/2	1" 7/8
06210-32-32	MJ3232	50	62 mm	105 bar 1520 psi	65 mm	50,8 mm 2"	2" 1/2

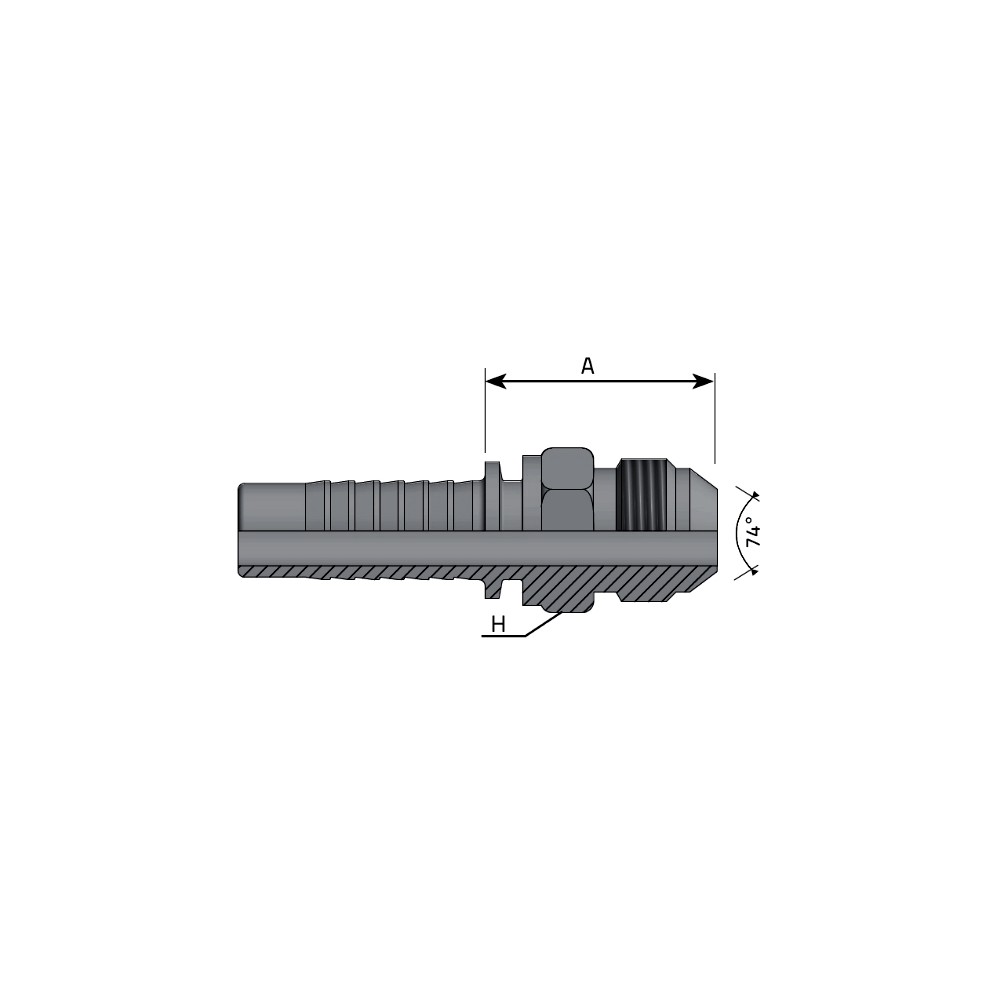

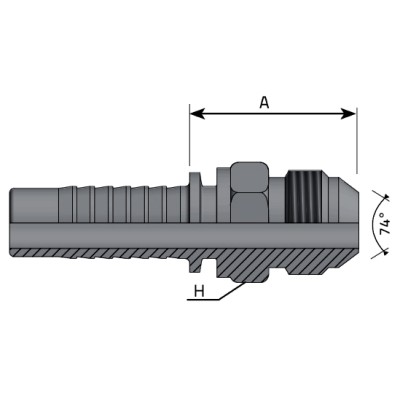

Macho Prensar JIC VITILLO
