Weo Espiga Codo 90

Weo Espiga Codo 90 CEJN

Forma
Codo 90º
Material
Acero Zincado
Temperatura
-30ºC / +100ºC (-22ºF / +212ºF)

Documentos Adjuntos

ESPIGAS MANGUERAS

You might also like

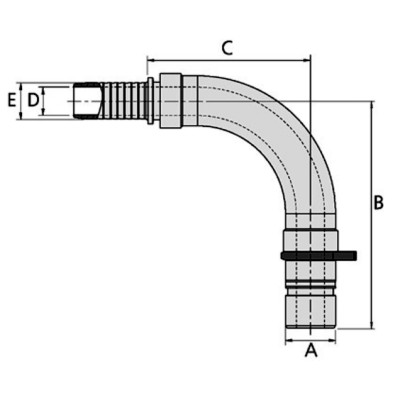

Ref.
Ref. CEJN
A
B
C
P. Trabajo
Diametro
Para Manguera
147140404 14 714 0404 10 mm 51 mm 34 mm 350 bar
5075 psi 		4,5 mm 6,4 mm
1/4"
147140604 14 714 0604 13 mm 56 mm 34 mm 350 bar
5075 psi 		4,5 mm 6,4 mm
1/4"
147140605 14 714 0605 13 mm 60 mm 39 mm 350 bar
5075 psi 		5,6 mm 7,9 mm
5/16"
147140606 14 714 0606 13 mm 60 mm 39 mm 350 bar
5075 psi 		7 mm 9,5 mm
3/8"
147140806 14 714 0806 16 mm 61 mm 39 mm 350 bar
5075 psi 		7 mm 12,8 mm
1/2"
147140808 14 714 0808 10 mm 69 mm 48 mm 350 bar
5075 psi 		9 mm 12,8 mm
1/2"
147141208 14 714 1208 23 mm 79 mm 48 mm 350 bar
5075 psi 		9 mm 12,8 mm
1/2"
147141210 14 714 1210 23 mm 105,5 mm 75 mm 350 bar
5075 psi 		13 mm 16 mm
5/8"
147141212 14 714 1212 23 mm 104,5 mm 75 mm 350 bar
5075 psi 		14,5 mm 19 mm
3/4"
