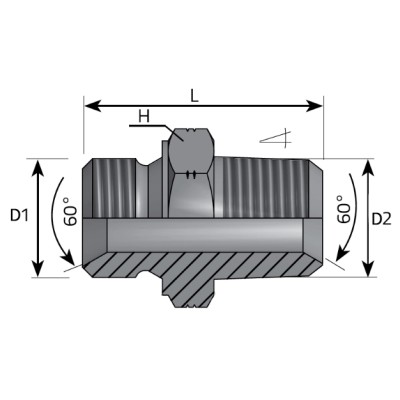

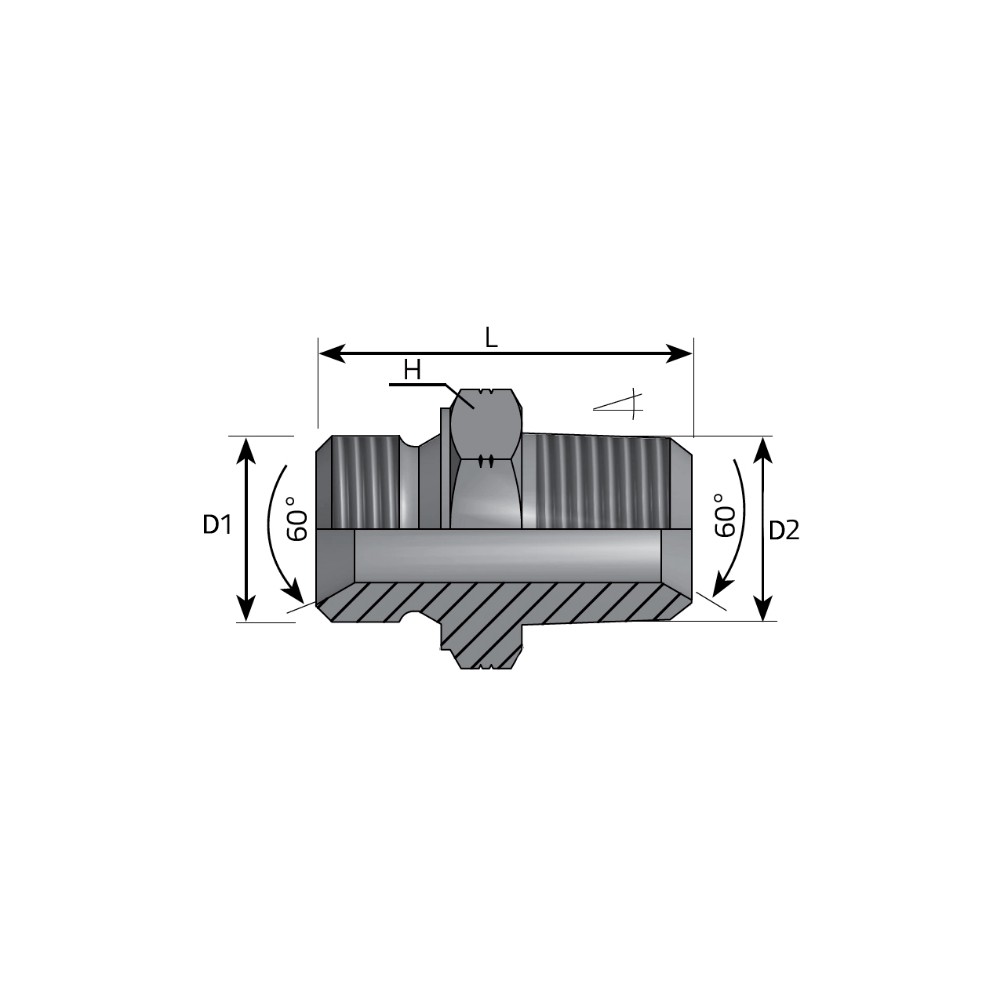

Adaptador Macho BSP Macho NPT
- Conector
- Conector Doble
- Rosca
- BSP 60º, NPT
| Ref. | ||||
|---|---|---|---|---|
| 080703-02-02 | 14 mm |
25,5 mm
1" |
1/8" | 1/8" |
| 080703-02-04 | 17 mm | 31,5 mm | 1/8" | 1/4" |
| 080703-04-02 | — | — | 1/4" | 1/8" |
| 080703-04-04 | 19 mm | 32 mm | 1/4" | 1/4" |
| 080703-04-06 | 19 mm | 34,5 mm | 1/4" | 3/8" |
| 080703-06-04 | 22 mm | 34,5 mm | 3/8" | 1/4" |
| 080703-06-06 | 22 mm | 34,5 mm | 3/8" | 3/8" |
| 080703-06-08 | 22 mm | 40 mm | 3/8" | 1/2" |
| 080703-08-06 | 27 mm | 37 mm | 1/2" | 3/8" |
| 080703-08-08 | 27 mm | 43 mm | 1/2" | 1/2" |
| 080703-08-12 | 27 mm | 42,2 mm | 1/2" | 3/4" |
| 080703-12-08 | 32 mm | 46 mm | 3/4" | 1/2" |
| 080703-12-12 | 32 mm | 46 mm | 3/4" | 3/4" |
| 080703-12-16 | 41 mm | 57 mm | 3/4" | 1" |
| 080703-16-12 | 40,8 mm | 49 mm | 1" | 3/4" |
| 080703-16-16 | 41 mm | 55 mm | 1" | 1" |
| 080703-16-20 | 46 mm | 55,5 mm | 1" | 1" 1/4 |
| 080703-20-16 | — | — | 1" 1/4 | 1" |
| 080703-20-20 | 50 mm | 59,5 mm | 1" 1/4 | 1" 1/4 |
| 080703-24-24 | 55 mm | 58 mm | 1" 1/2 | 1" 1/2 |
| 080703-32-32 | 70 mm | 67 mm | 2" | 2" |
