Ref. COVASA	Ref. Vitillo	P. Trabajo	Hexágono	Hexagono 1	Largo (L)	Largo (L1)	Largo (L2)	Rosca (D1)	Rosca (D2)	Nota
081427-04-02	AFGJ04MG02R	310 bar 4495 psi	14 mm	15 mm	34 mm	8 mm	—	7/16"	1/8"	—
081427-04-04	AFGJ04MG04R	275 bar 3988 psi	19 mm	15 mm	37,5 mm	12 mm	—	7/16"	1/4"	—
081427-05-02	AFGJ05MG02R	275 bar 3988 psi	14 mm	17 mm	35,5 mm	8 mm	—	1/2"	1/8"	—
081427-05-06	AFGJ05MG06R	210 bar 3045 psi	22 mm	17 mm	41 mm	12 mm	12 mm	1/2"	3/8"	—
081427-06-04	AFGJ06MG04R	275 bar 3988 psi	19 mm	19 mm	39,8 mm	12 mm	—	9/16"	1/4"	—
081427-06-06	AFGJ06MG06R	210 bar 3045 psi	22 mm	19 mm	41,8 mm	12 mm	—	9/16"	3/8"	—
081427-06-08	AFGJ06MG08R	210 bar 3045 psi	27 mm	19 mm	45,3 mm	14 mm	—	9/16"	1/2"	—
081427-08-04	AFGJ08MG04R	275 bar 3988 psi	19 mm	24 mm	42,1 mm	12 mm	—	3/4"	1/4"	—
081427-08-06	AFGJ08MG06R	275 bar 3988 psi	22 mm	24 mm	44,1 mm	12 mm	—	3/4"	3/8"	—
081427-08-08	AFGJ08MG08R	210 bar 3045 psi	27 mm	24 mm	47,6 mm	14 mm	—	3/4"	1/2"	—
081427-10-06	AFGJ10MG06R	210 bar 3045 psi	22 mm	27 mm	48,1 mm	12 mm	—	7/8"	3/8"	—
081427-10-08	AFGJ10MG08R	210 bar 3045 psi	27 mm	27 mm	51,6 mm	14 mm	—	7/8"	1/2"	—
081427-10-12	AFGJ10MG12R	210 bar 3045 psi	32 mm	27 mm	55,1 mm	16 mm	—	7/8"	3/4"	—
081427-12-08	AFGJ12MG08R	210 bar 3045 psi	27 mm	32 mm	51,7 mm	14 mm	—	1" 1/16	1/2"	*
081427-12-12	AFGJ12MG12R	210 bar 3045 psi	32 mm	32 mm	55,2 mm	16 mm	—	1" 1/16	3/4"	*
081427-12-16	AFGJ12MG16R	170 bar 2466 psi	41 mm	32 mm	58,7 mm	18 mm	—	1" 1/16	1"	*
081427-16-12	AFGJ16MG12R	170 bar 2466 psi	32 mm	41 mm	58,9 mm	16 mm	—	1" 5/16	3/4"	*
081427-16-16	AFGJ16MG16R	170 bar 2466 psi	50 mm	41 mm	62 mm	18 mm	—	1" 5/16	1"	*
081427-16-20	AFGJ16MG20R	170 bar 2466 psi	50 mm	41 mm	66,9 mm	20 mm	—	1" 5/16	1" 1/4	*
081427-20-20	AFGJ20MG20R	140 bar 2030 psi	50 mm	50 mm	67,3 mm	20 mm	—	1" 5/8	1" 1/4	*
081427-24-20	AFGJ24MG20R	105 bar 1520 psi	50 mm	55 mm	74,3 mm	20 mm	—	1" 7/8	1" 1/4	*
081427-24-24	AFGJ24MG24R	105 bar 1520 psi	55 mm	55 mm	77,5 mm	26 mm	—	1" 7/8	1" 1/2	*

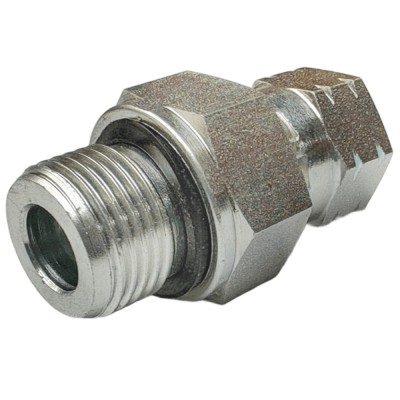

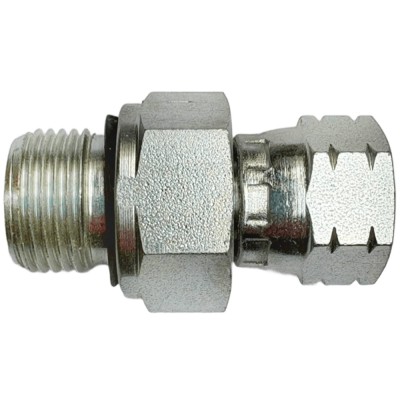

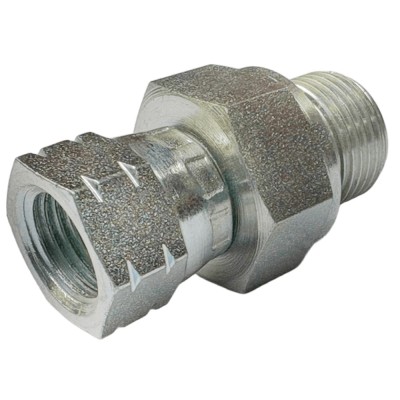

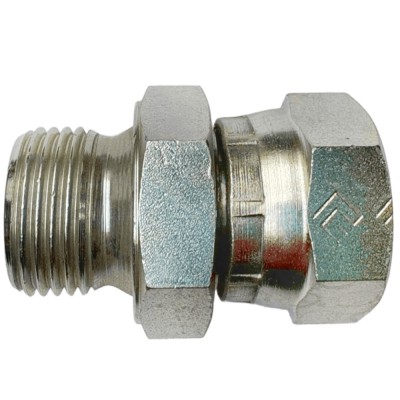

Adaptador Macho BSP Tuerca Loca JIC VITILLO
