Adaptador Macho BSPP - Macho JIC VITILLO

Adaptador Macho JIC - Macho BSPP Forma E

Conector: Macho
Rosca: BSPP, JIC 37º

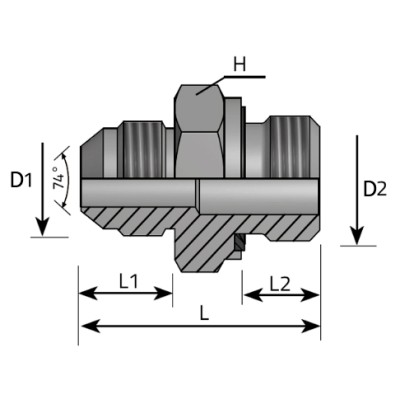

Ref. COVASA	Ref. Vitillo	P. Trabajo	Hexágono	Largo (L)	Largo (L1)	Largo (L2)	Rosca (D1)	Rosca (D2)
080733-04-02	AMJ04MG02R	345 bar	14 mm	30,5 mm	14 mm	8 mm	7/16"	1/8"
080733-04-04	AMJ04MG04R	345 bar	19 mm	34,5 mm	14 mm	12 mm	7/16"	1/4"
080733-04-06	AMJ04MG06R	310 bar	22 mm	36 mm	14 mm	12 mm	7/16"	3/8"
080733-04-08	AMJ04MG06R	240 bar	27 mm	39,5 mm	14 mm	14 mm	7/16"	1/2"
080733-05-02	—	—	—	—	—	—	1/8"	1/2"
080733-05-04	AMJ05MG04R	345 bar	19 mm	34,5 mm	14 mm	12 mm	1/2"	1/4"
080733-05-06	AMJ05MG06R	310 bar	22 mm	36 mm	14 mm	12 mm	1/2"	3/8"
080733-06-04	AMJ06MG04R	345 bar	19 mm	34,5 mm	14,1 mm	12 mm	9/16"	1/4"
080733-06-06	AMJ06MG06R	310 bar	22 mm	36 mm	14,1 mm	12 mm	9/16"	3/8"
080733-06-08	AMJ06MG08R	240 bar	27 mm	40 mm	14,1 mm	14 mm	9/16"	1/2"
080733-08-04	AMJ08MG04R	310 bar	22 mm	38 mm	16,7 mm	12 mm	3/4"	1/4"
080733-08-06	AMJ08MG06R	310 bar	22 mm	38,5 mm	16,7 mm	12 mm	3/4"	3/8"
080733-08-08	AMJ08MG08R	240 bar	27 mm	42,5 mm	16,7 mm	14 mm	3/4"	1/2"
080733-08-12	AMJ08MG12R	240 bar	32 mm	46 mm	16,7 mm	16 mm	3/4"	3/4"
080733-10-06	AMJ10MG06R	240 bar	24 mm	42,5 mm	19,3 mm	12 mm	7/8"	3/8"
080733-10-08	AMJ10MG08R	240 bar	27 mm	45 mm	19,3 mm	14 mm	7/8"	1/2"
080733-10-08C/J	—	—	—	—	—	—	1/2"	7/8"
080733-10-12	AMJ10MG12R	240 bar	32 mm	48,5 mm	19,3 mm	16 mm	7/8"	3/4"
080733-12-06	AMJ12MG06R	240 bar	30 mm	46,5 mm	21,9 mm	12 mm	1" 1/16	3/8"
080733-12-08	AMJ12MG08R	240 bar	30 mm	49 mm	21,9 mm	14 mm	1" 1/16	1/2"
080733-12-12	AMJ12MG12R	240 bar	32 mm	51 mm	21,9 mm	16 mm	1" 1/16	3/4"
080733-12-16	AMJ12MG16R	210 bar	41 mm	54,5 mm	21,9 mm	18 mm	1" 1/16	1"
080733-16-12	AMJ16MG12R	210 bar	36 mm	53,5 mm	23,1 mm	16 mm	1" 5/16	3/4"
080733-16-16	AMJ16MG16R	210 bar	41 mm	55,5 mm	23,1 mm	18 mm	1" 5/16	1"
080733-16-20	AMJ16MG20R	210 bar	50 mm	60 mm	23,1 mm	20 mm	1" 5/16	1" 1/4
080733-20-16	AMJ20MG16R	170 bar	46 mm	59 mm	24,3 mm	18 mm	1" 5/8	1"
080733-20-20	AMJ20MG20R	170 bar	50 mm	61 mm	24,3 mm	20 mm	1" 5/8	1" 1/4
080733-20-24	AMJ20MG24R	140 bar	55 mm	64 mm	24,3 mm	22 mm	1" 5/8	1" 1/2
080733-24-16	AMJ24MG16R	140 bar	50 mm	62 mm	27,5 mm	18 mm	1" 7/8	1"
