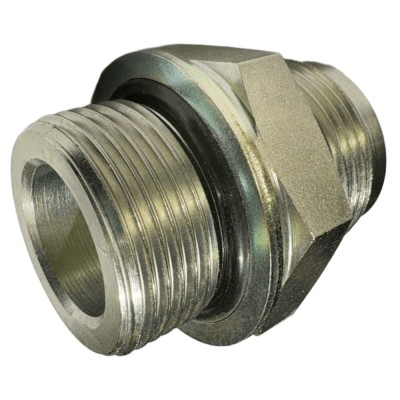

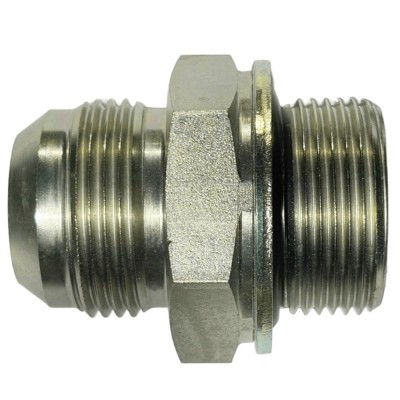

Adaptador Macho JIC 37º

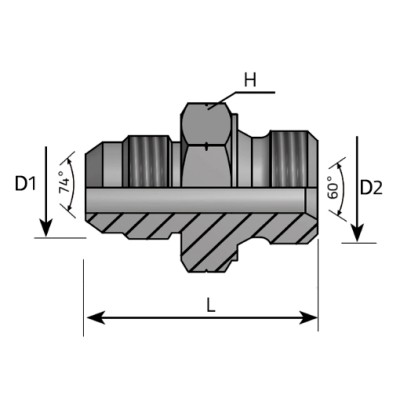

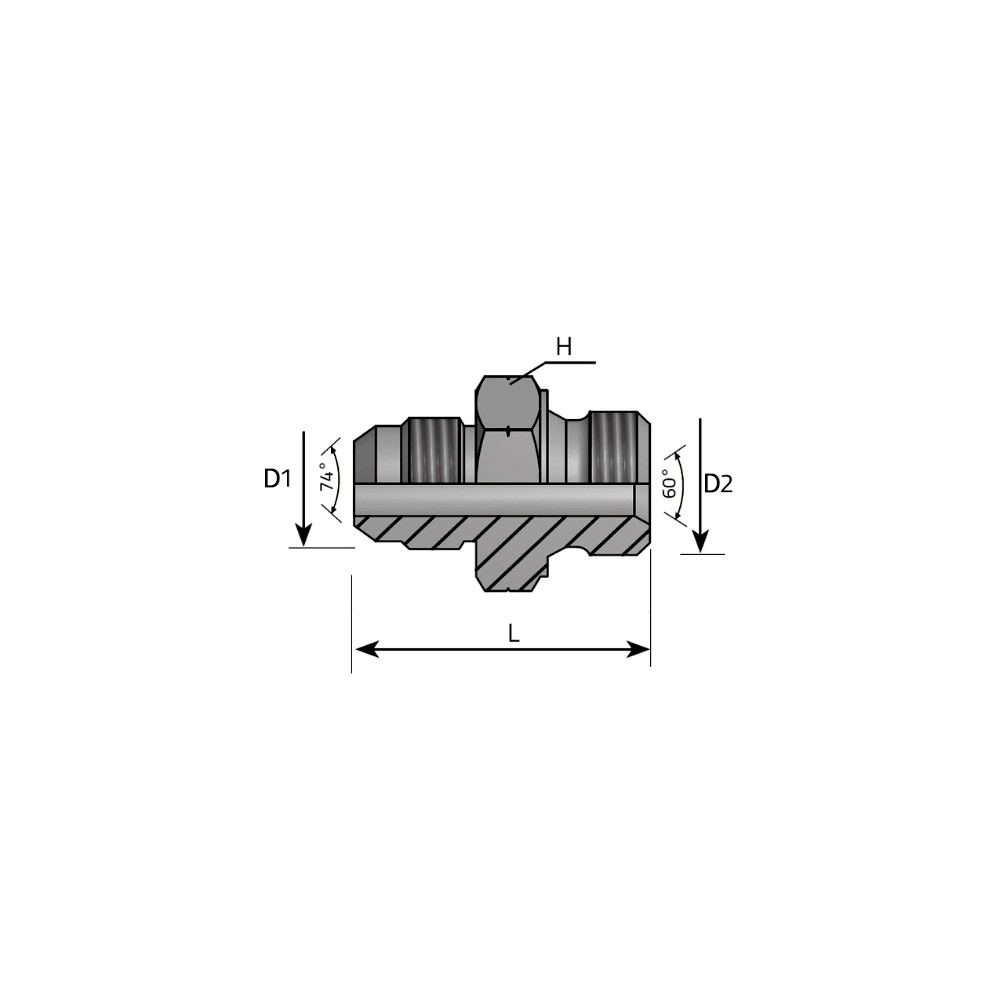

Imagen	Ref. CVS	Hexágono	Rosca (D1)	Rosca (D2)	Largo (L)
	080734-04-10	14 mm	7/16"	10/100	30 mm
	080734-04-12	17 mm	7/16"	12/150	33 mm
	080734-04-14	19 mm	7/16"	14/150	31,2 mm
	080734-05-12	17 mm	1/2"	12/150	33 mm
	080734-05-14	19 mm	1/2"	14/150	34,5 mm
	080734-05-16	21,8 mm	1/2"	16/150	35 mm
	080734-05-18	23 mm	1/2"	18/150	36 mm
	080734-05-20	27 mm	1/2"	20/150	37,2 mm
	080734-06-14	19 mm	9/16"	14/150	34,1 mm
	080734-06-16	22 mm	9/16"	16/150	35,1 mm
	080734-06-18	24 mm	9/16"	18/150	34 mm
	080734-06-20	27 mm	9/16"	20/150	38 mm
	080734-07-18	24 mm	5/8"	18/150	38,5 mm
	080734-07-20	27 mm	5/8"	20/150	39 mm
	080734-08-18	24 mm	3/4"	18/150	39,5 mm
	080734-08-20	27 mm	3/4"	20/150	41 mm
	080734-08-22	27 mm	3/4"	22/150	42,8 mm
	080734-10-20	27 mm	7/8"	20/150	43 mm
	080734-10-22	27 mm	7/8"	22/150	44,5 mm
	080734-12-18	27 mm	1" 1/16	18/150	47 mm
	080734-12-22	27 mm	1" 1/16	22/150	50 mm
	080734-12-26	32 mm	1" 1/16	26/150	52,1 mm
	080734-16-26	36 mm	1" 5/16	26/150	50,8 mm 2"
	080734-16-33	41 mm	1" 5/16	33/200	53 mm
	080734-20-42	50 mm	1" 5/8	42/200	58 mm
