Adaptador Macho JIC - Macho SAE VITILLO

Adaptador Macho - Macho UNF - JIC

Rosca: JIC 37º, UNF
Conector: Macho

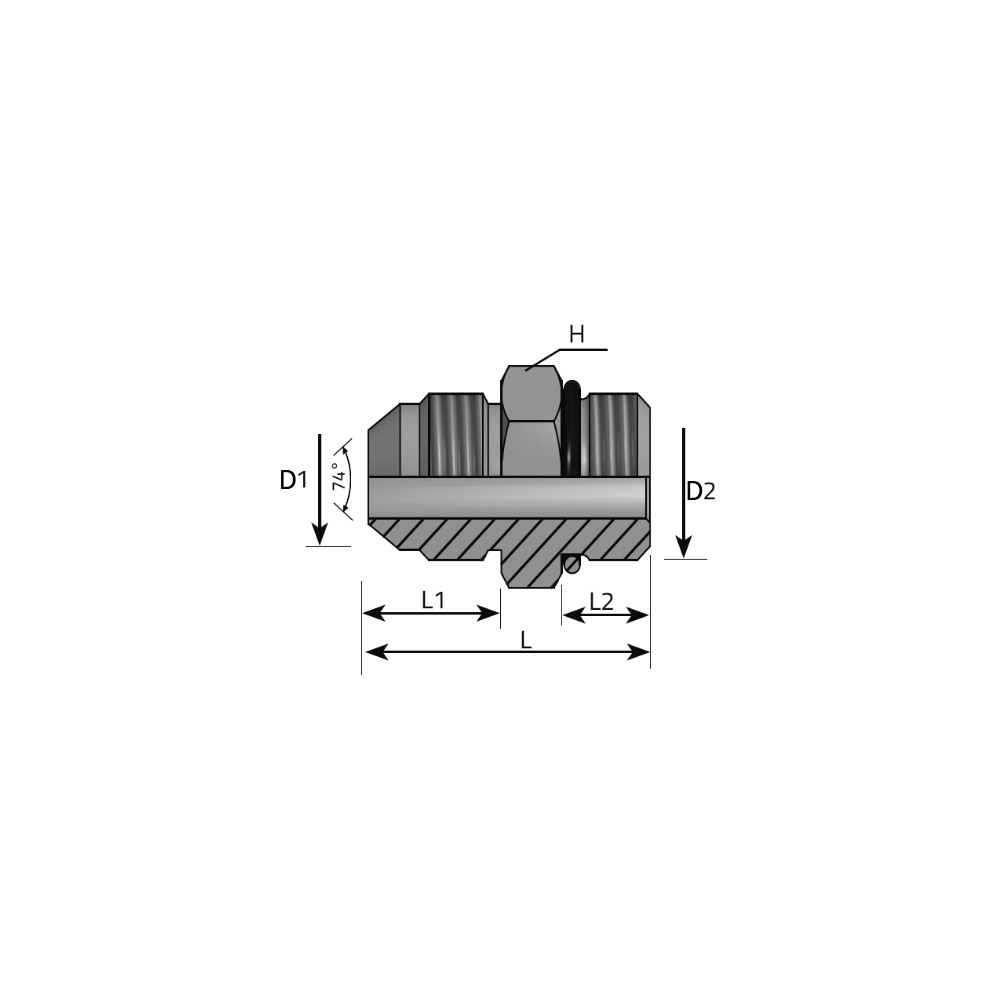

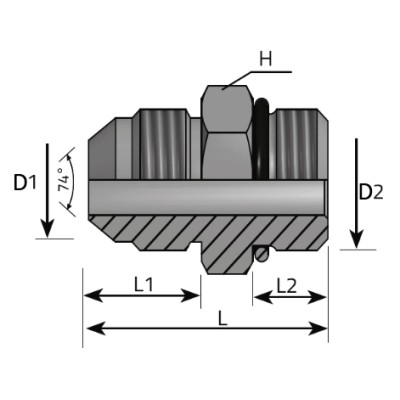

Imagen	Ref. CVS	Ref. Vitillo	Hexágono	Rosca (D1)	Rosca (D2)	P. Trabajo	Largo (L)	Largo (L1)	Largo (L2)
	080731-04-04	AMJ04MU04	14 mm	7/16"	7/16"	345 bar 5004 psi	31 mm	14 mm	9,1 mm
	080731-04-05	AMJ04MU05	17 mm	7/16"	1/2"	345 bar 5004 psi	31 mm	14 mm	9,1 mm
	080731-04-06	AMJ04MU06	17 mm	7/16"	9/16"	345 bar 5004 psi	33 mm	14 mm	10 mm
	080731-05-05	AMJ05MU05	17 mm	1/2"	1/2"	345 bar 5004 psi	31 mm	14 mm	9,1 mm
	080731-06-06	AMJ06MU06	17 mm	9/16"	9/16"	345 bar 5004 psi	33 mm	14,1 mm	10 mm
	080731-06-08	AMJ06MU08	22 mm	9/16"	3/4"	310 bar 4495 psi	35 mm	14,1 mm	11,1 mm
	080731-06-10	AMJ06MU10	27 mm	9/16"	7/8"	240 bar 3480 psi	38 mm	14,1 mm	12,7 mm
	080731-08-08	AMJ08MU08	22 mm	3/4"	3/4"	310 bar 4495 psi	37,6 mm	16,7 mm	11,1 mm
	080731-08-10	AMJ08MU10	27 mm	3/4"	7/8"	240 bar 3480 psi	40,5 mm	16,7 mm	12,7 mm
	080731-08-12	AMJ08MU12	32 mm	3/4"	1" 1/16	240 bar 3480 psi	45 mm	16,7 mm	15,1 mm
	080731-10-08	AMJ10MU08	24 mm	7/8"	3/4"	240 bar 3480 psi	41,5 mm	19,3 mm	11,1 mm
	080731-10-10	AMJ10MU10	27 mm	7/8"	7/8"	240 bar 3480 psi	43 mm	19,3 mm	12,7 mm
	080731-10-12	AMJ10MU12	32 mm	7/8"	1" 1/16	240 bar 3480 psi	47,5 mm	19,3 mm	15,1 mm
	080731-12-08	AMJ12MU08	30 mm	1" 1/16	3/4"	240 bar 3480 psi	45 mm	21,9 mm	12,7 mm
	080731-12-10	AMJ12MU10	30 mm	1" 1/16	7/8"	240 bar 3480 psi	50,5 mm	21,9 mm	12,7 mm
	080731-12-12	AMJ12MU12	32 mm	1" 1/16	1" 1/16	240 bar 3480 psi	50 mm	21,9 mm	15,1 mm
	080731-12-16	AMJ12MU16	41 mm	1" 1/16	1" 5/16	210 bar 3045 psi	50,5 mm	21,9 mm	15,1 mm
	080731-16-16	AMJ16MU16	41 mm	1" 5/16	1" 5/16	210 bar 3045 psi	41 mm	23,1 mm	15,1 mm
	080731-16-20	AMJ16MU20	50 mm	1" 5/16	1" 5/8	170 bar 2466 psi	54 mm	23,1 mm	15,1 mm
	080731-20-16	AMJ20MU16	46 mm	1" 5/8	1" 5/16	170 bar 2466 psi	54 mm	24,3 mm	15,1 mm
	080731-20-20	AMJ20MU20	50 mm	1" 5/8	1" 5/8	170 bar 2466 psi	55 mm	24,3 mm	15,1 mm
	080731-24-24	AMJ24MU24	55 mm	1" 7/8	1" 7/8	140 bar 2030 psi	60 mm	27,5 mm	15,1 mm
