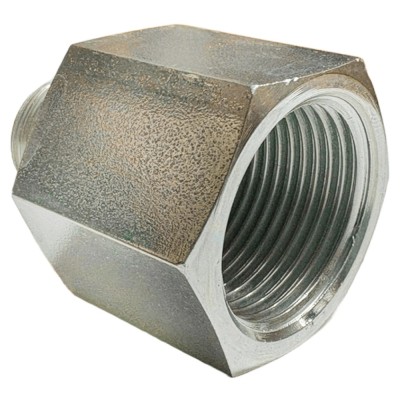

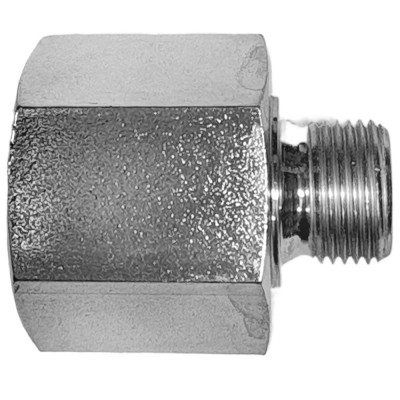

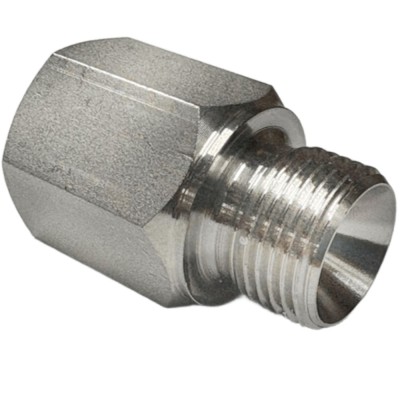

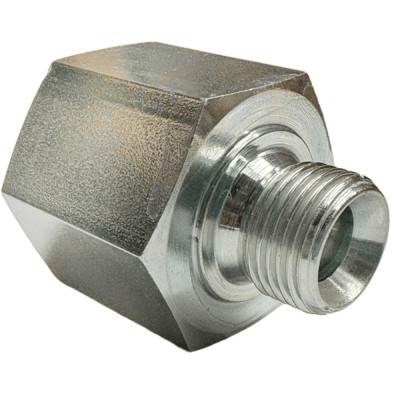

Adaptador Suplemento Macho - Hembra BSP VITILLO

Reductor Macho BSPP - Hembra Fija BSPP

Conector: Hembra, Macho
Rosca: BSPP

Ref. COVASA	Ref. Vitillo	P. Trabajo	Hexágono	Largo (L)	Largo (L1)	Largo (L2)	Rosca (D1)	Rosca (D2)
080800-02-02	APMFG0230.5	350 bar	14 mm	30,5 mm	9,5 mm	—	1/8"	1/8"
080800-02-04	ARMFL0204	350 bar	19 mm	29 mm	9,5 mm	—	1/8"	1/4"
080800-02-06	ARMFL0206	350 bar	22 mm	31,5 mm	9,5 mm	—	1/8"	3/8"
080800-04-02	ARMFL0402	350 bar	19 mm	32 mm	11 mm	—	1/4"	1/8"
080800-04-04	APMFG0433	350 bar	19 mm	33 mm	11 mm	—	1/4"	1/4"
080800-04-06	ARMFL0406	350 bar	22 mm	33 mm	11 mm	—	1/4"	3/8"
080800-04-08	ARMFL0408	315 bar	27 mm	38 mm	11 mm	—	1/4"	1/2"
080800-06-04	ARMFL0604	350 bar	22 mm	35 mm	12,5 mm	—	3/8"	1/4"
080800-06-06	APMFG0635	350 bar	22 mm	35 mm	12,5 mm	—	3/8"	3/8"
080800-06-06-39	—	350 bar	22	39 mm	12,5 mm	26,5 mm	3/8"	3/8"
080800-06-06-42	—	350 bar	22	42 mm	—	29,5 mm	3/8"	3/8"
080800-06-06-54	—	350 bar	22 mm	54 mm	—	41,5 mm	3/8"	3/8"
080800-06-08	ARMFL0608	315 bar	27 mm	40 mm	12,5 mm	—	3/8"	1/2"
080800-06-12	ARMFL0612	250 bar	32 mm	41,5 mm	12,5 mm	—	3/8"	3/4"
080800-08-04	ARMFL0804	315 bar	27 mm	41 mm	14 mm	—	1/2"	1/4"
080800-08-06	ARMFL0806	315 bar	27 mm	41 mm	14 mm	—	1/2"	3/8"
080800-08-08	APMFG0840	315 bar	27 mm	40 mm	14 mm	—	1/2"	1/2"
080800-08-08-45	—	315 bar	27 mm	45 mm	14 mm	31	—	1/2"
080800-08-08-50	—	315 bar	27 mm	50 mm	14 mm	36 mm	1/2"	1/2"
080800-08-08-60	—	315 bar	27 mm	60 mm	14 mm	46 mm	1/2"	1/2"
080800-08-12	ARMFL0812	250 bar	32 mm	46 mm	14 mm	—	1/2"	3/4"
080800-08-16	ARMFL0816	200 bar	41 mm	53,5 mm	14 mm	—	1/2"	1"
080800-12-06	ARMFL1206	250 bar	32 mm	42 mm	16 mm	—	3/4"	3/8"
080800-12-08	ARMFL1208	250 bar	32 mm	43 mm	16 mm	—	3/4"	1/2"
080800-12-12	APMFG1248	250 bar	32 mm	48 mm	16 mm	—	3/4"	3/4"
080800-12-12-57	—	250 bar	32 mm	57 mm	16 mm	41 mm	—	3/4"
080800-12-12-67	—	250 bar	32 mm	67 mm	16 mm	51 mm	3/4"	3/4"
080800-12-12-72	—	250 bar	32 mm	72 mm	—	—	3/4"	3/4"
080800-12-16	ARMFL1216	200 bar	41 mm	49 mm	16 mm	—	3/4"	1"
080800-12-20	ARMFL1220	160 bar	50 mm	51 mm	16 mm	—	3/4"	1" 1/4
080800-16-08	ARMFL1608	200 bar	41 mm	49,5 mm	18 mm	—	1"	1/2"
080800-16-12	ARMFL1612	200 bar	41 mm	64 mm	18 mm	—	1"	3/4"
080800-16-16	APMFG1654	200 bar	41 mm	54 mm	18 mm	—	1"	1"
080800-16-16-80	—	200 bar	41 mm	80 mm	—	62 mm	1"	1"
080800-16-20	ARMFL1620	160 bar	50 mm	54 mm	18 mm	—	1"	1" 1/4
080800-16-24	ARMFL1624	125 bar	55 mm	54 mm	18 mm	—	1"	1" 1/2
080800-20-12	ARMFL2012	160 bar	50 mm	48 mm	20 mm	—	1" 1/4	3/4"
080800-20-16	ARMFL2016	160 bar	50 mm	61 mm	20 mm	—	1" 1/4	1"
080800-20-20	APMFG2062	160 bar	50 mm	62 mm	20 mm	—	1" 1/4	1" 1/4
080800-20-24	ARMFL2024	125 bar	55 mm	61 mm	20 mm	—	1" 1/4	1" 1/2
080800-20-32	ARMFL2032	80 bar	70 mm	61 mm	20 mm	—	1" 1/4	2"
080800-24-16	ARMFL2416	125 bar	55 mm	62 mm	21 mm	—	1" 1/2	1"
080800-24-20	ARMFL2420	125 bar	55 mm	62 mm	21 mm	—	1" 1/2	1" 1/4
080800-24-24	APMFG2465	125 bar	55 mm	65 mm	22 mm	—	1" 1/2	1" 1/2
080800-24-32	ARMFL2432	80 bar	70 mm	62 mm	21 mm	—	1" 1/2	2"
080800-32-20	ARMFL3220	80 bar	70 mm	57 mm	25 mm	—	2"	1" 1/4
080800-32-24	ARMFL3224	80 bar	70 mm	57 mm	25 mm	—	2"	1" 1/2
080800-32-32	APMFG3257	80 bar	70 mm	57 mm	25 mm	—	2"	2"
080801-02-04	—	630 bar	19 mm	—	8 mm	23 mm	1/8"	1/4"
08080L-06-06	—	—	—	41 mm	—	—	3/8"	3/8"
