Ref. COVASA	Ref. Vitillo	D.N.	A	B	P. Trabajo	Diametro	Diametro 1	Para Manguera
06661-08-08	F45P0808I	13	64 mm	23 mm	415 bar 6010 psi	1/2"	31,7 mm	12,8 mm 1/2"
06661-08-12	F45P0812I	13	69 mm	28 mm	415 bar 6010 psi	3/4"	41,3 mm	12,8 mm 1/2"
06661-10-08	F45P1008I	16	60 mm	26 mm	350 bar 5075 psi	1/2"	31,7 mm	16 mm 5/8"
06661-10-12	F45P1012I	16	66 mm	30 mm	350 bar 5075 psi	3/4"	41,3 mm	16 mm 5/8"
06661-12-08	F45P1208I	20	64 mm	28 mm	350 bar 5075 psi	1/2"	31,7 mm	19 mm 3/4"
06661-12-12	F45P1212I	20	70 mm	32 mm	350 bar 5075 psi	3/4"	41,3 mm	19 mm 3/4"
06661-12-16	F45P1216I	20	74 mm	35 mm	350 bar 5075 psi	1"	47,6 mm	19 mm 3/4"
06661-16-12	F45P1612I	25	86 mm	35 mm	280 bar 4060 psi	3/4"	41,3 mm	25,4 mm 1"
06661-16-16	F45P1616I	25	89 mm	32 mm	280 bar 4060 psi	1"	47,6 mm	25,4 mm 1"
06661-16-20	F45P1620I	25	94 mm	36 mm	280 bar 4060 psi	1" 1/4	54 mm	25,4 mm 1"
06661-20-16	F45P2016I	32	100 mm	36 mm	210 bar 3045 psi	1"	47,6 mm	31,8 mm 1" 1/4
06661-20-20	F45P2020I	32	104 mm	43 mm	210 bar 3045 psi	1" 1/4	54 mm	31,8 mm 1" 1/4
06661-20-24	F45P2024I	32	107 mm	44 mm	210 bar 3045 psi	1" 1/2	63,5 mm	31,8 mm 1" 1/4
06661-24-24	F45P2424I	38	118 mm	41 mm	185 bar 2683 psi	1" 1/2	63,5 mm	38,1 mm 1" 1/2
06661-24-32	F45P2432I	38	119 mm	52 mm	185 bar 2683 psi	2"	79,4 mm	38,1 mm 1" 1/2
06661-32-32	F45P3232I	50	153 mm	59 mm	172 bar 2495 psi	2"	79,4 mm	50,8 mm 2"

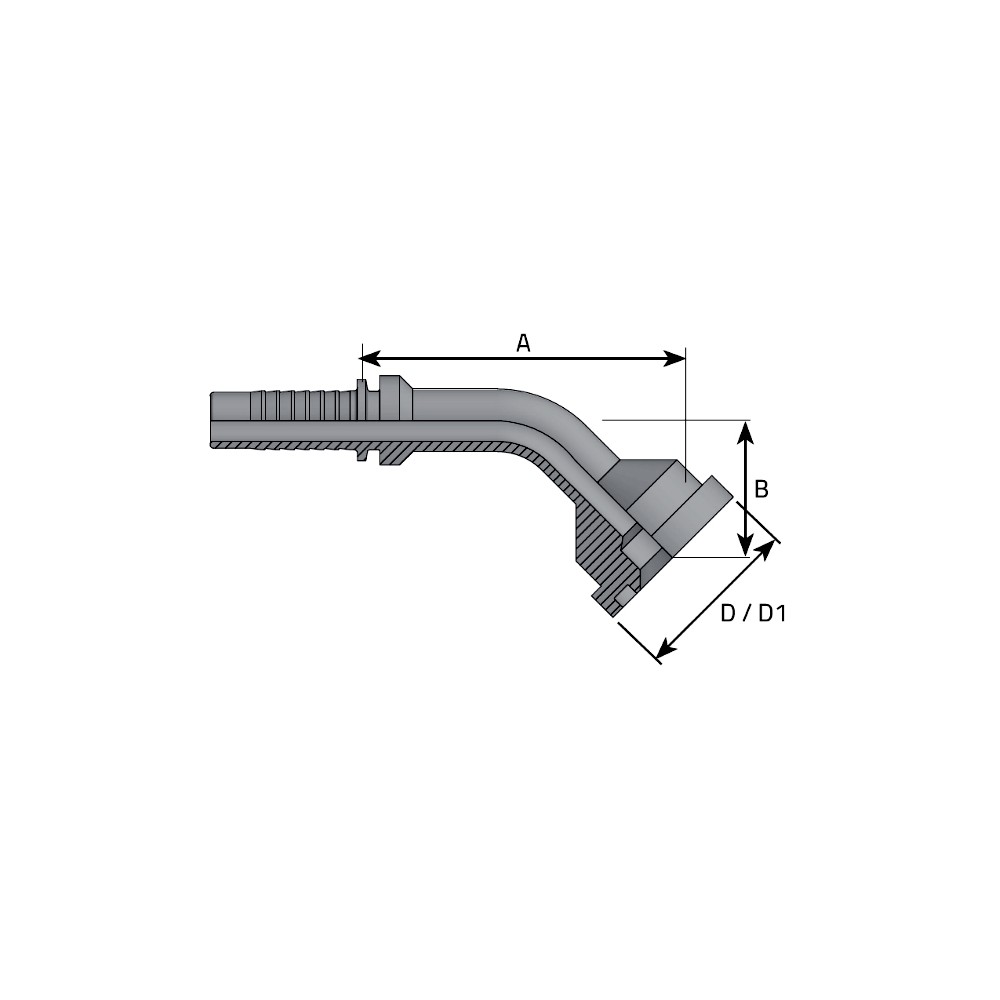

Brida Prensar Codo 45º 6000 PSI VITILLO
