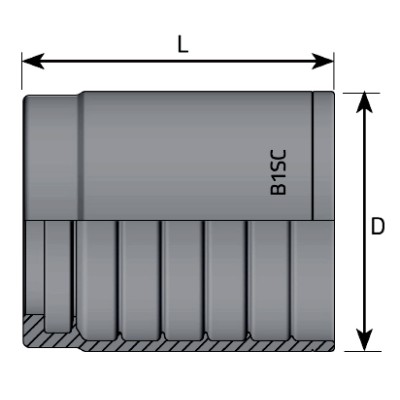

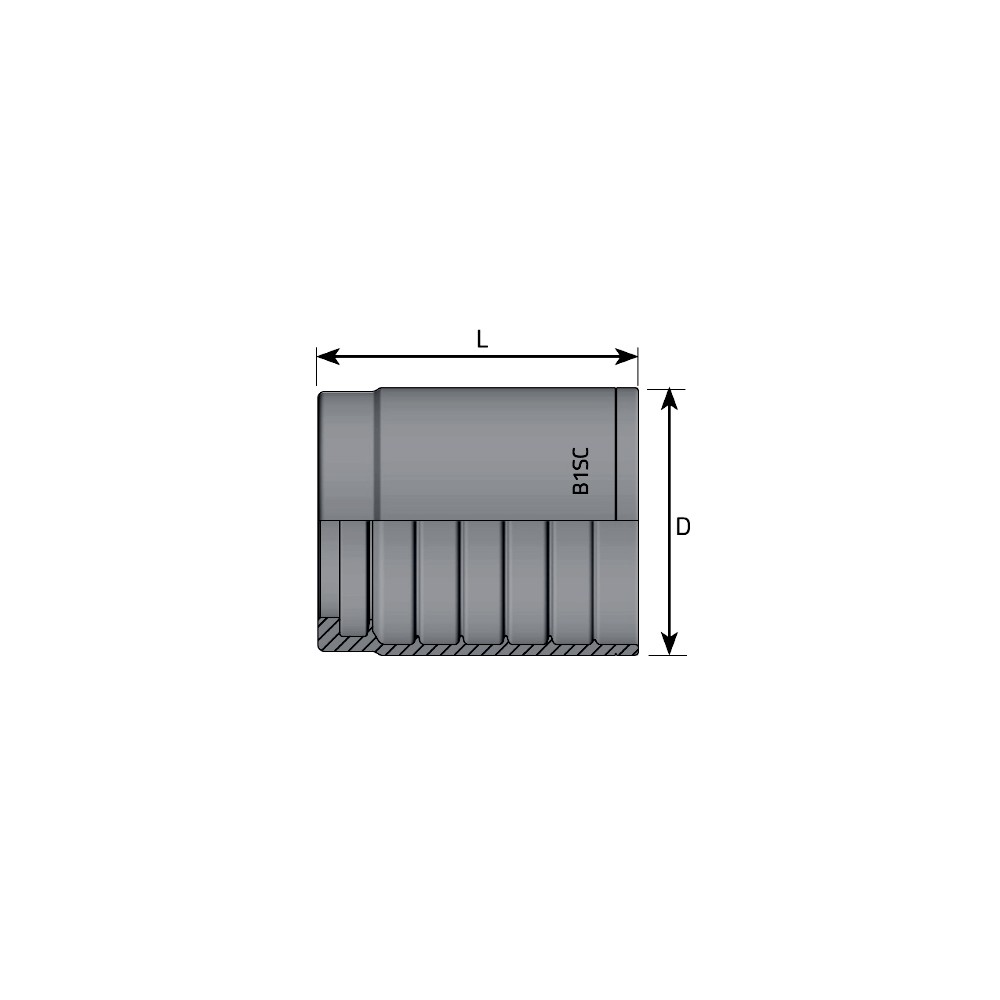

Casquillo Prensar UNIF (R1T-1SC-2SC) VITILLO

Casquillo para 1SN/2SN/2SC

Conector
Espiga
Pelar
No
Tipo
Estándar
Imagen Ref. CVS
Ref. Vitillo
D.N.
Para Manguera
Diametro
Largo (L)
Casquillo Prensar UNIF (R1T-1SC-2SC)
060636-04 B1SC04 6 6,4 mm
1/4"
20 mm 30 mm
Casquillo Prensar UNIF (R1T-1SC-2SC)
060636-05 B1SC05 8 7,9 mm
5/16"
22 mm 30 mm
Casquillo Prensar UNIF (R1T-1SC-2SC)
060636-06 B1SC06 10 9,5 mm
3/8"
24 mm 32 mm
Casquillo Prensar UNIF (R1T-1SC-2SC)
060636-08 B1SC08 13 12,8 mm
1/2"
28 mm 34 mm
Casquillo Prensar UNIF (R1T-1SC-2SC)
060636-10 B1SC10 16 16 mm
5/8"
32 mm 37 mm
Casquillo Prensar UNIF (R1T-1SC-2SC)
060636-12 B1SC12 20 19 mm
3/4"
35 mm 42 mm
Casquillo Prensar UNIF (R1T-1SC-2SC)
060636-16 B1SC16 25 25,4 mm
1"
43 mm 51 mm
Total: 0,0

No Skive - Sin pelar

Identificación: Código impreso o rayas
