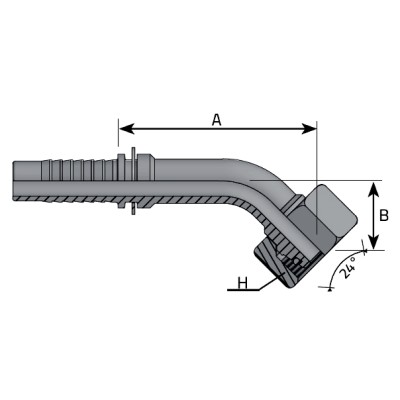

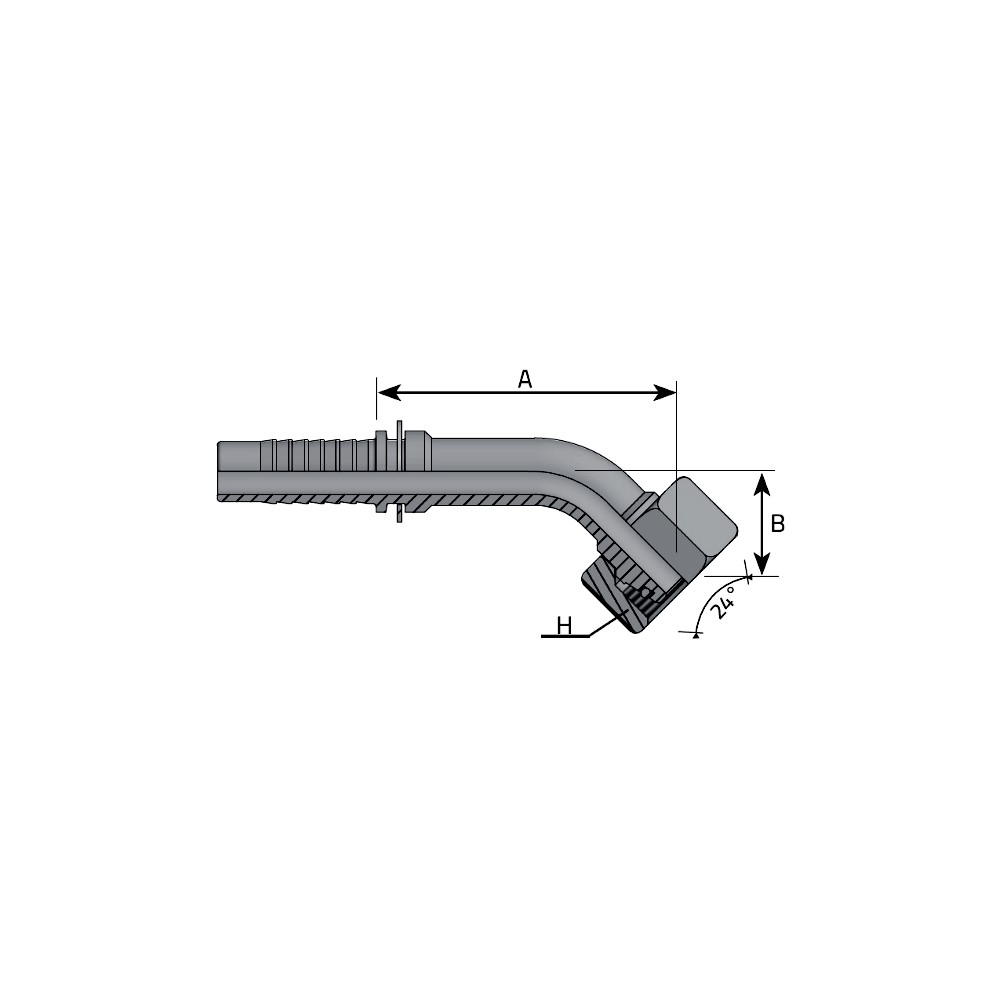

Codo 45º Prensar 24º Serie L (mm) VITILLO

Hembra Métrica a 45º con O-Ring Cono 24º - Serie L. ***Refs. 06362-04-12,06362-06-16 con Tuerca Prensada.

Conector: Hembra
Rosca: DIN
Tipo: Estándar

Ref. COVASA	Ref. Vitillo	D.N.	A	B	P. Trabajo	Diametro	Hexágono	Para Manguera	Rosca
06362-03-12	F45E0312L6	5	37 mm	15 mm	250 bar	6 mm	14 mm	4,8 mm 3/16"	M 12
06362-03-14	F45E0314L8	5	37 mm	15 mm	250 bar	8 mm	17 mm	4,8 mm 3/16"	M 14
06362-04-12	F45E0412L6	6	40 mm	17 mm	250 bar	6 mm	17 mm	6,4 mm 1/4"	M 12
06362-04-14	F45E0414L8	6	50 mm	17 mm	250 bar	8 mm	17 mm	6,4 mm 1/4"	M 14
06362-04-16	F45E0416L10	6	48,5 mm	17 mm	250 bar	10 mm	19 mm	6,4 mm 1/4"	M 16
06362-04-18	F45E0418L12	6	48,5 mm	17 mm	250 bar	12 mm	22 mm	6,4 mm 1/4"	M 18
06362-05-14	F45E0514L8	8	51 mm	23 mm	250 bar	8 mm	19 mm	7,9 mm 5/16"	M 14
06362-05-16	F45E0516L10	8	52 mm	17 mm	250 bar	10 mm	19 mm	7,9 mm 5/16"	M 16
06362-05-18	F45E0518L12	8	50 mm	20 mm	250 bar	12 mm	22 mm	7,9 mm 5/16"	M 18
06362-06-16	F45E0616L10	10	55 mm	20 mm	250 bar	10 mm	19 mm	10 mm 3/8"	M 16
06362-06-18	F45E0618L12	10	57 mm	17 mm	250 bar	12 mm	22 mm	10 mm 3/8"	M 18
06362-06-22	F45E0622L15	10	59 mm	19 mm	250 bar	15 mm	27 mm	10 mm 3/8"	M 22
06362-08-18	F45E0818L12	13	65 mm	27 mm	250 bar	12 mm	22 mm	12,8 mm 1/2"	M 18
06362-08-22	F45E0822L15	13	64 mm	22 mm	250 bar	15 mm	27 mm	12,8 mm 1/2"	M 22
06362-08-26	F45E0826L18	13	65 mm	26 mm	160 bar	18 mm	32 mm	12,8 mm 1/2"	M 26
06362-10-26	F45E1026L18	16	61,5 mm	28 mm	160 bar	18 mm	32 mm	16 mm 5/8"	M 26
06362-10-30	F45E1030L22	16	63,5 mm	—	160 bar	22 mm	36 mm	16 mm 5/8"	M 30
06362-12-26	F45E1226L18	20	63 mm	33,5 mm	160 bar	18 mm	32 mm	19 mm 3/4"	M 26
06362-12-30	F45E1230L22	20	63 mm	27 mm	160 bar	22 mm	36 mm	19 mm 3/4"	M 30
06362-16-36	F45E1636L28	25	85,5 mm	38,5 mm	100 bar	28 mm	41 mm	25,4 mm 1"	M 36
06362-20-45	F45E2045L35	32	104,5 mm	35 mm	100 bar	35 mm	50 mm	31,8 mm 1" 1/4	M 45
06362-24-52	F45E2452L42	38	119 mm	45 mm	100 bar	42 mm	60 mm	38,1 mm 1" 1/2	M 52
