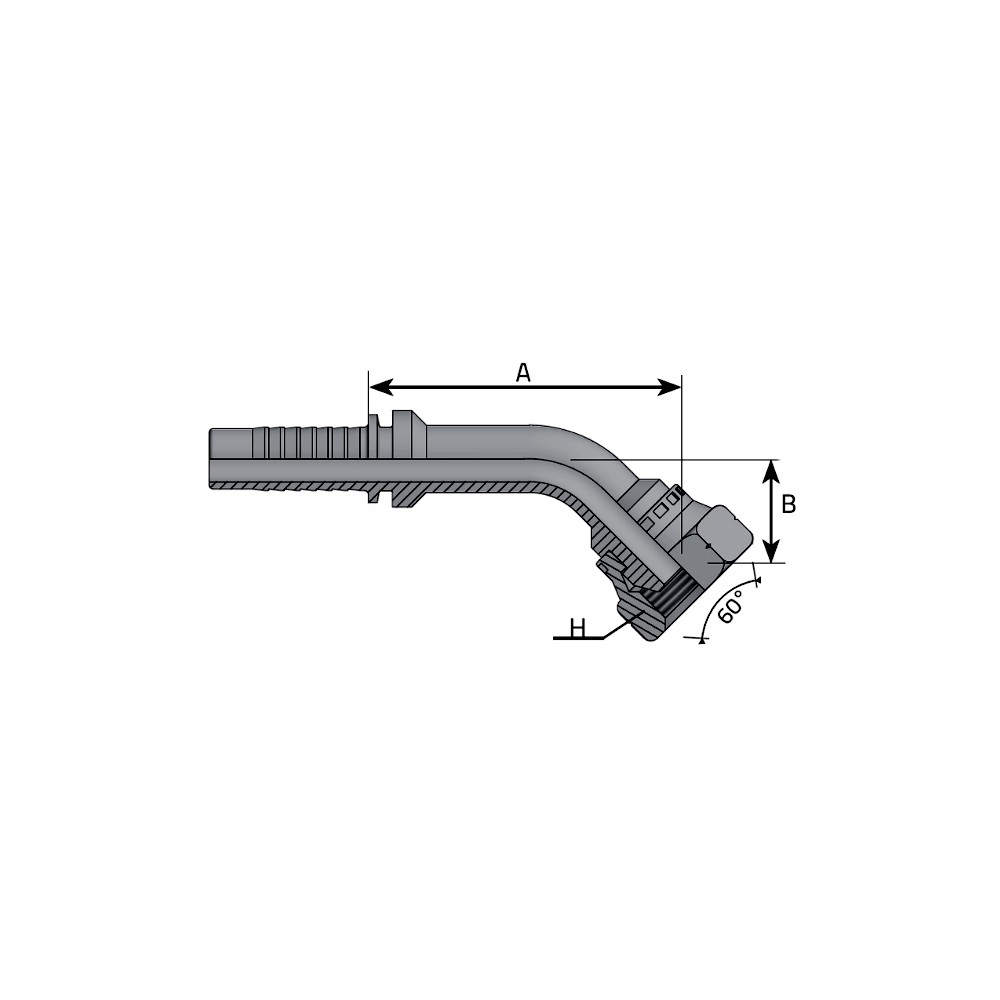

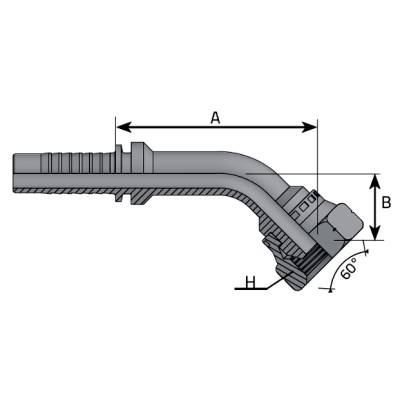

Codo 45º Prensar 60º VITILLO

Hembra Giratoria a 45º Métrica Cono 60º

Forma: Codo 45º
Rosca: Métrica 24º
Conector: Hembra
Tipo: Estándar

Imagen	Ref. CVS	Ref. Vitillo	D.N.	Para Manguera	A	B	Hexágono	P. Trabajo	Rosca	Nota
	06360-03-10	F45M0310	5	4,8 mm 3/16"	40 mm	17 mm	15 mm	350 bar 5075 psi	M 10
	06360-03-12	F45M0312	5	4,8 mm 3/16"	40 mm	17 mm	17 mm	350 bar 5075 psi	M 12
	06360-04-10	F45M0410	6	6,4 mm 1/4"	40 mm	17 mm	15 mm	350 bar 5075 psi	M 10
	06360-04-12	F45M0412	6	6,4 mm 1/4"	40 mm	17 mm	17 mm	350 bar 5075 psi	M 12
	06360-04-14	F45M0414	6	6,4 mm 1/4"	40 mm	17 mm	19 mm	350 bar 5075 psi	M 14
	06360-04-16	F45M0416	6	6,4 mm 1/4"	43 mm	20 mm	22 mm	350 bar 5075 psi	M 16
	06360-04-18	F45M0418	6	6,4 mm 1/4"	43 mm	20 mm	22 mm	350 bar 5075 psi	M 18
	06360-05-14	F45M0514	8	7,9 mm 5/16"	40 mm	17 mm	19 mm	350 bar 5075 psi	M 14
	06360-05-16	F45M0516	8	7,9 mm 5/16"	43 mm	20 mm	22 mm	350 bar 5075 psi	M 16
	06360-05-18	F45M0518	8	7,9 mm 5/16"	43 mm	20 mm	22 mm	350 bar 5075 psi	M 18
	06360-06-14	F45M0614	10	9,5 mm 3/8"	55 mm	20 mm	19 mm	350 bar 5075 psi	M 14
	06360-06-16	F45M0616	10	9,5 mm 3/8"	55 mm	20 mm	22 mm	350 bar 5075 psi	M 16
	06360-06-18	F45M0618	10	9,5 mm 3/8"	55 mm	20 mm	22 mm	350 bar 5075 psi	M 18
	06360-06-20	F45M0620	10	9,5 mm 3/8"	58 mm	23 mm	27 mm	315 bar 4568 psi	M 20
	06360-06-22	F45M0622	10	9,5 mm 3/8"	58 mm	23 mm	27 mm	315 bar 4568 psi	M 22
	06360-08-18	F45M0818	13	12,8 mm 1/2"	65 mm	23 mm	24 mm	315 bar 4568 psi	M 18
	06360-08-20	F45M0820	13	12,8 mm 1/2"	65 mm	23 mm	27 mm	315 bar 4568 psi	M 20
	06360-08-22	F45M0822	13	12,8 mm 1/2"	65 mm	23 mm	27 mm	315 bar 4568 psi	M 22
	06360-08-24	F45M0824	13	12,8 mm 1/2"	66 mm	21 mm	30 mm	250 bar 3620 psi	M 24
	06360-08-26	F45M0826	13	12,8 mm 1/2"	66 mm	21 mm	32 mm	250 bar 3625 psi	M 26
	06360-10-26	F45M1026	16	16 mm 5/8"	64 mm	26 mm	32 mm	250 bar 3625 psi	M 26
	06360-10-27	F45M1027	16	16 mm 5/8"	64 mm	26 mm	32 mm	250 bar 3625 psi	M 27
	06360-12-26	F45M1226	20	19 mm 3/4"	63 mm	29 mm	32 mm	250 bar 3625 psi	M 26
	06360-12-27	F45M1227	20	19 mm 3/4"	63 mm	29 mm	32 mm	250 bar 3625 psi	M 27
	06360-12-30	F45M1230	20	19 mm 3/4"	65 mm	31 mm	36 mm		M 30	*
	06360-16-38	F45M1638	25	25,4 mm 1"	90 mm	41 mm	46 mm		M 38	*
	06360-20-45	F45M2045	32	31,8 mm 1" 1/4	103 mm	45 mm	50 mm		M 45	*
	06360-24-52	F45M2452	38	38,1 mm 1" 1/2	119 mm	53 mm	55 mm		M 52	*
