Imagen	Ref. CVS	Ref. Vitillo	D.N.	Para Manguera	A	B	Hexágono	P. Trabajo	Rosca
	06336-04-14	F90K0414	6	6,4 mm 1/4"	23 mm	27 mm	19 mm	350 bar 5075 psi	M 14
	06336-04-16	F90K0416	6	6,4 mm 1/4"	23 mm	27 mm	22 mm	250 bar 3625 psi	M 16
	06336-05-16	F90K0516	8	7,9 mm 5/16"	31,5 mm	32 mm	22 mm	250 bar 3625 psi	M 16
	06336-06-14	F90K0614	10	9,5 mm 3/8"	33 mm	35 mm	19 mm	250 bar 3625 psi	M 14
	06336-06-16	F90K0616	10	9,5 mm 3/8"	33 mm	35 mm	22 mm	250 bar 3625 psi	M 16
	06336-06-18	F90K0618	10	9,5 mm 3/8"	33 mm	36,5 mm	24 mm	250 bar 3625 psi	M 18
	06336-08-18	F90K0818	13	12,8 mm 1/2"	39 mm	41 mm	24 mm	250 bar 3625 psi	M 18
	06336-08-20	F90K0820	13	12,8 mm 1/2"	39 mm	43,5 mm	27 mm	200 bar 2900 psi	M 20
	06336-08-22	F90K0822	13	12,8 mm 1/2"	39 mm	43,5 mm	27 mm	200 bar 2900 psi	M 22
	06336-08-24	F90K0824	13	12,8 mm 1/2"	39 mm	50 mm	32 mm	200 bar 2900 psi	M 24
	06336-10-22	F90K1022	16	16 mm 5/8"	49 mm	50 mm	27 mm	200 bar 2900 psi	M 22
	06336-10-24	F90K1024	16	16 mm 5/8"	49 mm	55 mm	32 mm	200 bar 2900 psi	M 24
	06336-12-30	F90K1230	20	19 mm 3/4"	53,5 mm	62,5 mm	36 mm	160 bar 2320 psi	M 30
	06336-16-33	F90K1633	25	25,4 mm 1"	73 mm	69,5 mm	41 mm	160 bar 2320 psi	M 33
	06336-20-36	F90K2036	32	31,8 mm 1" 1/4	89 mm	88 mm	46 mm	125 bar 1810 psi	M 36
	06336-24-42	F90K2442	38	38,1 mm 1" 1/2	101 mm	106,5 mm	50 mm	100 bar 1450 psi	M 42
Total: 0,0

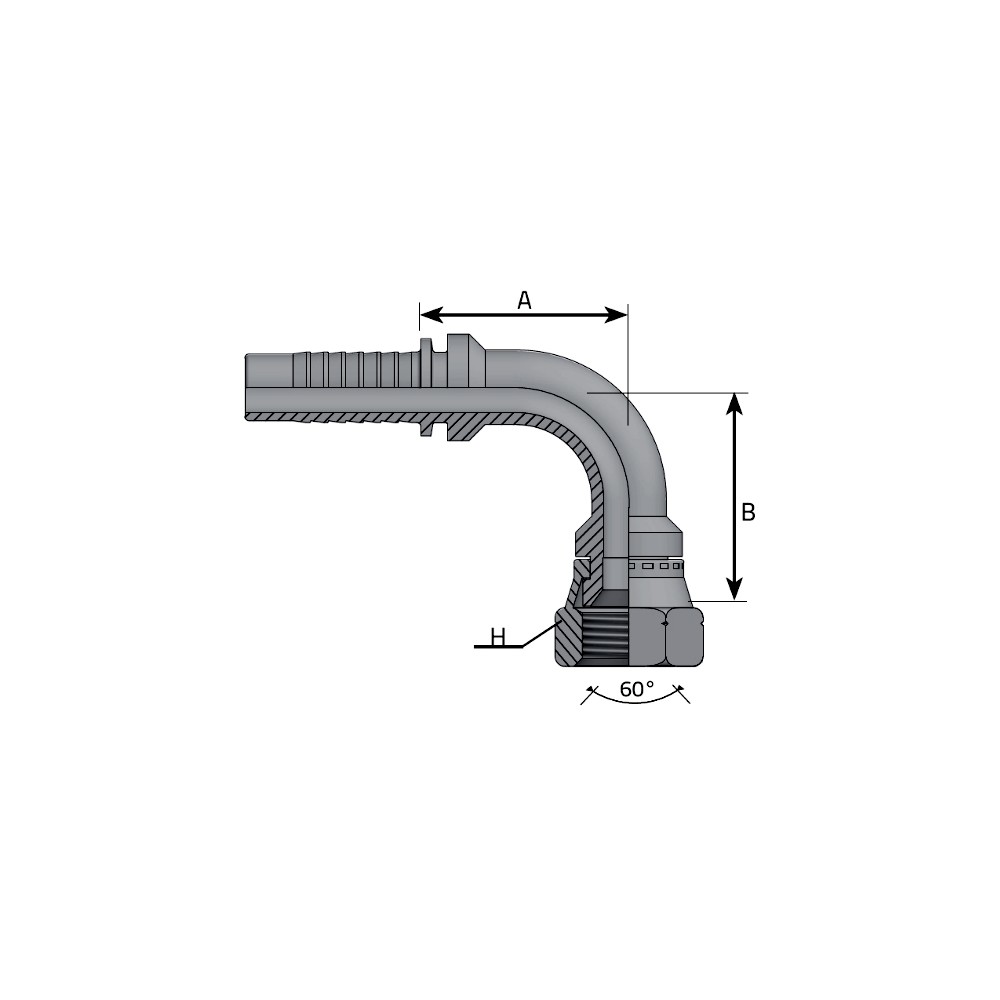

Codo 90º Komatsu VITILLO
