Ref. COVASA	Ref. Vitillo	P. Trabajo	Hexágono	Hexagono 1	Largo (L)	Largo (L1)	Rosca (D1)	Rosca (D2)
086321-04-04	LMJ04MOU04	310 bar 4495 psi	14 mm	14 mm	23,5 mm	26 mm	7/16"	7/16"
086321-04-05	LMJ04MOU05	275 bar 3988 psi	14 mm	17 mm	24,5 mm	29,5 mm	7/16"	1/2"
086321-04-06	LMJ04MOU05	275 bar 3988 psi	14 mm	17 mm	27 mm	31,5 mm	7/16"	9/16"
086321-05-05	LMJ05MOU05	275 bar 3988 psi	14 mm	17 mm	25 mm	27,5 mm	1/2"	1/2"
086321-06-06	LMJ06MOU06	275 bar 3988 psi	14 mm	17 mm	27,5 mm	31,5 mm	9/16"	9/16"
086321-06-08	LMJ06MOU08	275 bar 3988 psi	19 mm	22 mm	28,5 mm	36,5 mm	9/16"	3/4"
086321-08-08	LMJ08MOU08	275 bar 3988 psi	19 mm	22 mm	32 mm	36,5 mm	3/4"	3/4"
086321-08-10	LMJ08MOU10	210 bar 3045 psi	22 mm	27 mm	34 mm	43 mm	3/4"	7/8"
086321-08-12	LMJ08MOU12	210 bar 3045 psi	27 mm	32 mm	37 mm	49 mm	3/4"	1" 1/16
086321-10-08	LMJ10MOU08	210 bar 3045 psi	22 mm	22 mm	37 mm	39,5 mm	7/8"	3/4"
086321-10-10	LMJ10MOU10	210 bar 3045 psi	22 mm	27 mm	37 mm	43 mm	7/8"	7/8"
086321-10-12	LMJ10MOU12	210 bar 3045 psi	27 mm	32 mm	39,5 mm	49 mm	7/8"	1" 1/16
086321-12-08	LMJ12MOU08	210 bar 3045 psi	27 mm	22 mm	42 mm	42 mm	1" 1/16	3/4"
086321-12-10	LMJ12MOU10	210 bar 3045 psi	27 mm	27 mm	42 mm	45,5 mm	1" 1/16	7/8"
086321-12-12	LMJ12MOU12	210 bar 3045 psi	27 mm	32 mm	42 mm	49 mm	1" 1/16	1" 1/16
086321-12-16	LMJ12MOU16	170 bar 2466 psi	33 mm	41 mm	44,5 mm	52 mm	1" 1/16	1" 5/16
086321-16-12	LMJ12MOU16	170 bar 2466 psi	33 mm	32 mm	46 mm	52 mm	1" 5/16	1" 1/16
086321-16-16	LMJ16MOU16	170 bar 2466 psi	33 mm	41 mm	46 mm	52 mm	1" 5/16	1" 5/16
086321-16-20	LMJ16MOU20	140 bar 2030 psi	41 mm	50 mm	51 mm	57 mm	1" 5/16	1" 5/8
086321-20-20	LMJ20MOU20	140 bar 2030 psi	41 mm	50 mm	55 mm	57 mm	1" 5/8	1" 5/8

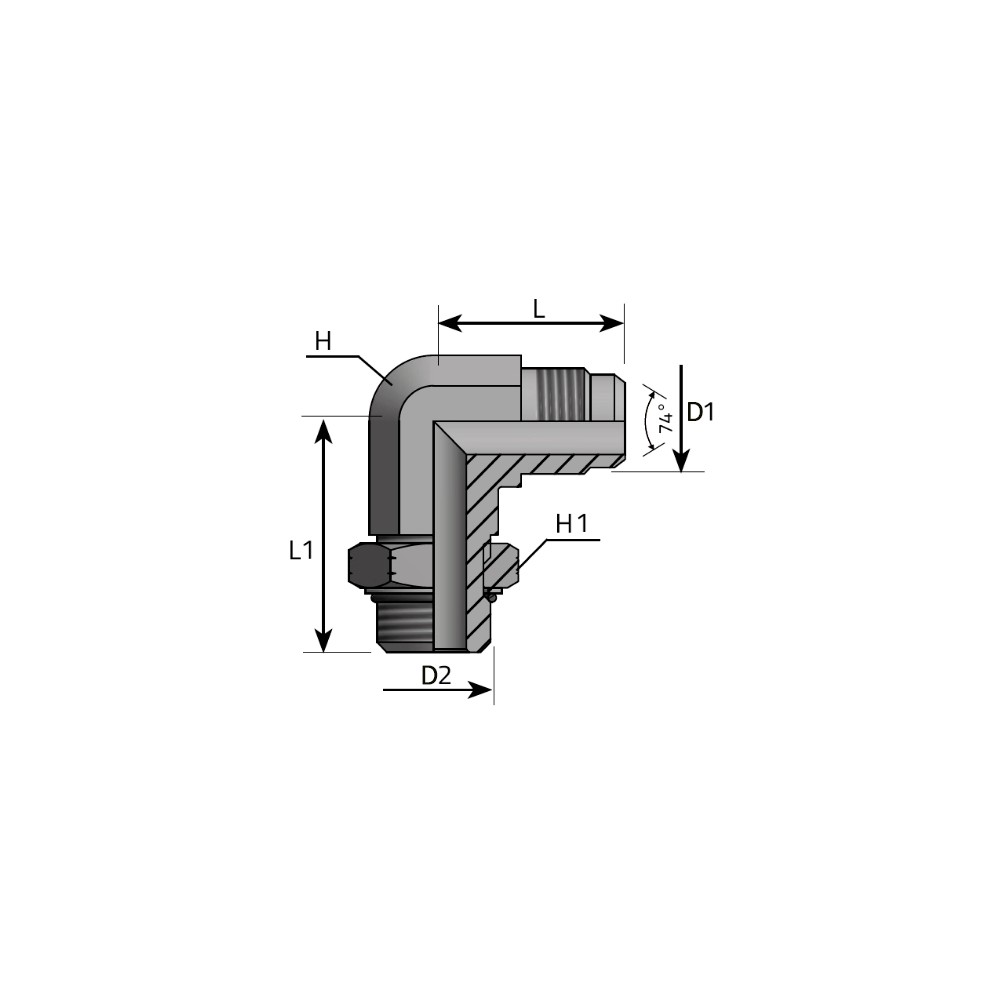

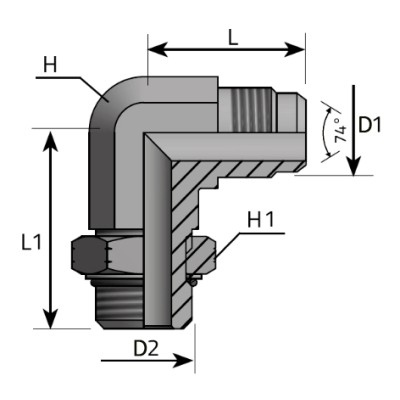

Codo 90º Macho JIC 37º - Macho SAE UNIF Orientable VITILLO
