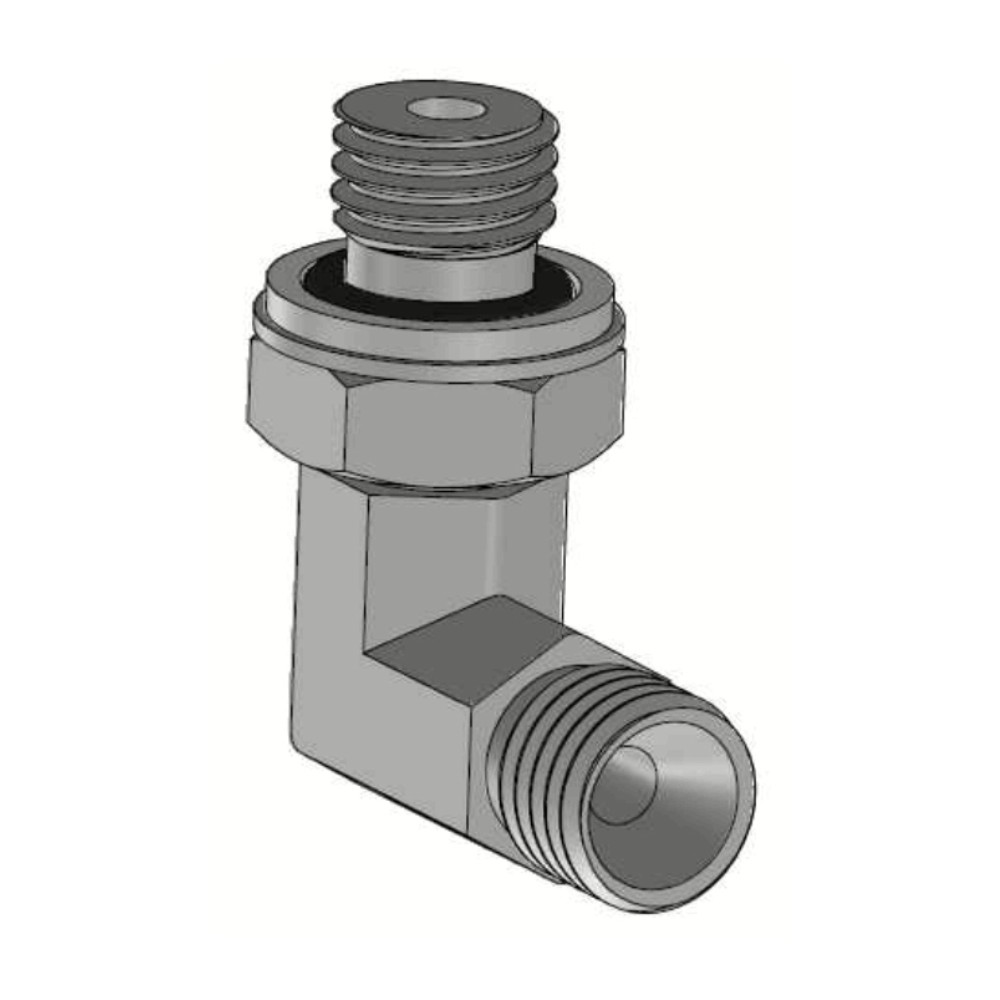

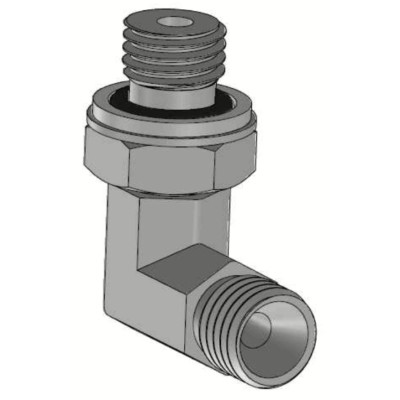

Codo 90º Macho Orientable BSP Gas 60º Forjado

Codo 90º orientable macho - macho

Imagen	Ref. CVS	Hexagono 1	Hexágono	Rosca (D1)	Rosca (D2)	P. Trabajo	Largo (L)	Largo (L1)
	086310-02-02	14 mm	14 mm	1/8"	1/8"	350 bar 5075 psi	22 mm	26 mm
	086310-04-04	19 mm	14 mm	1/4"	1/4"	350 bar 5075 psi	26 mm	34 mm
	086310-06-04	19 mm	19 mm	3/8"	1/4"	350 bar 5075 psi	29 mm	34 mm
	086310-06-06	22 mm	19 mm	3/8"	3/8"	350 bar 5075 psi	29 mm	37 mm
	086310-08-06	22 mm	22 mm	1/2"	3/8"	315 bar 4568 psi	36,5 mm	37 mm
	086310-08-08	27 mm	22 mm	1/2"	1/2"	315 bar 4568 psi	36,5 mm	45 mm
	086310-12-08	27 mm	27 mm	3/4"	1/2"	250 bar 3625 psi	42 mm	48,5 mm
	086310-12-12	36 mm	27 mm	3/4"	3/4"	250 bar 3625 psi	42 mm	48,5 mm
	086310-16-12	36 mm	33 mm	1"	3/4"	200 bar 2900 psi	50 mm	48,5 mm
	086310-16-16	41 mm	33 mm	1"	1"	200 bar 2900 psi	50 mm	53 mm
