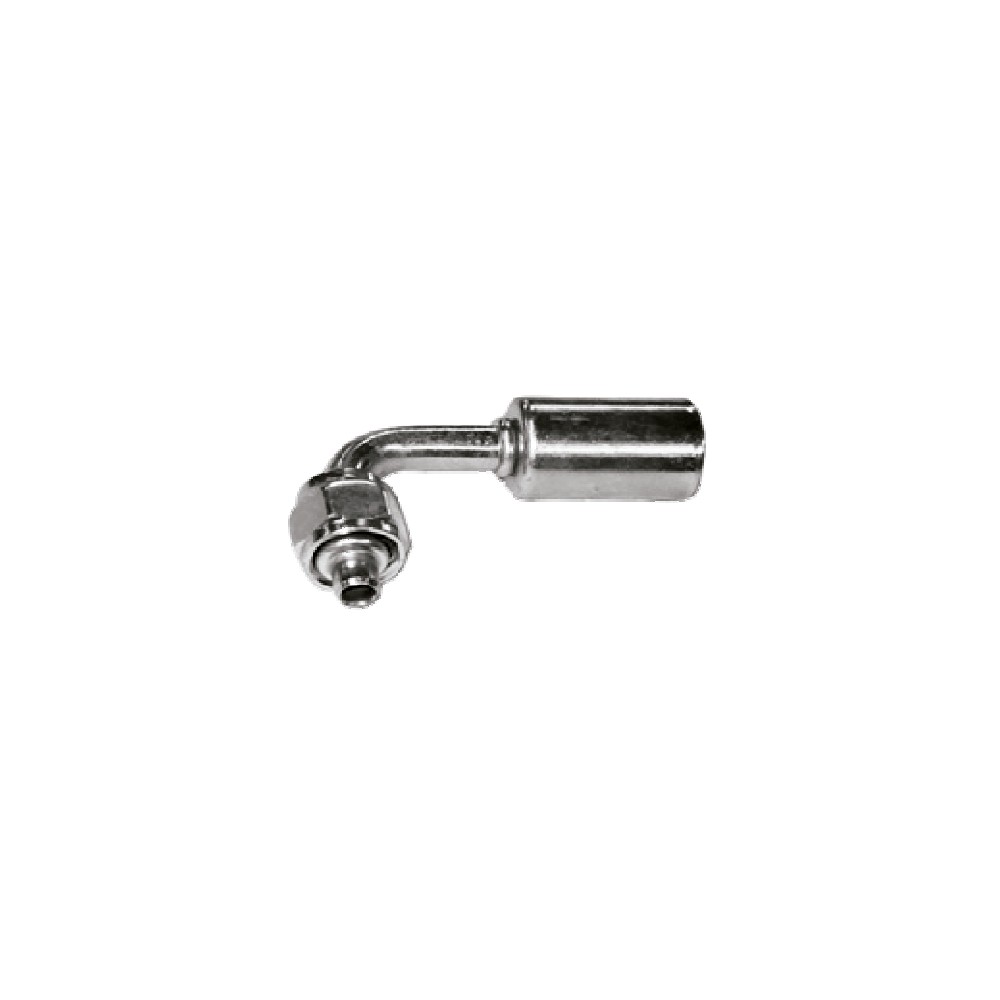

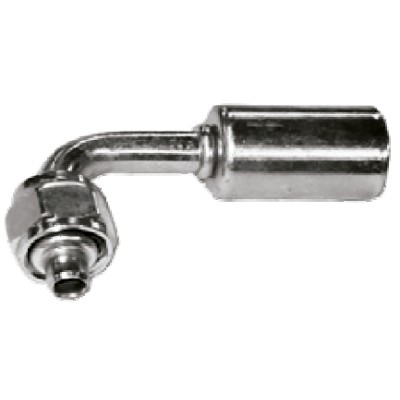

Codo 90º O-Ring
Hembra giratoria, codo 90º, con junta tórica verde sin válvula en acero al carbono, para manguera de aire acondicionado, Freon Barrier. En cuanto a las dimensiones de estos racores, cuenta con Diámetros Nominales (DN) desde 5/16\" hasta 5/8\" y con rosca desde 5/8\" 18h UNF hasta 1\"1/16 12h UNF\".
- Rosca
- UNF
Ref. COVASA | |||
---|---|---|---|
331141 | Galga 06 - 5/16" | — | 5/8" |
331141A | Galga 06 - 5/16" | Acero | 5/8" |
331141DR | Galga 06 - 5/16" | — | 5/8" |
331142 | Galga 08 - 13/32" | — | 3/4" |
331142A | Galga 08 - 13/32" | — | 3/4" |
331142DR | Galga 08 - 13/32" D.R. | — | 3/4" |
331143 | Galga 10 - 1/2" | — | 7/8" |
3311437/8 | Galga 08 - 13/32" | — | 7/8" |
331143DR | Galga 10 - 1/2" D.R. | — | 5/8" |
331144 | Galga 12 - 5/8" | — | 1" 1/16 |
331144DR | Galga 12 - 5/8" D.R. | — | 1" 11/16 |
331145 | Galga 12 - 5/8" | — | 7/8" |
331146 | Galga 08 - 13/32" | — | 5/8" |
331147 | Galga 06 - 5/16" | — | 3/4" |
331148 | Galga 10 - 1/2" | — | 3/4" |
331149 | Galga 10 - 1/2" | — | 1" 1/16 |
