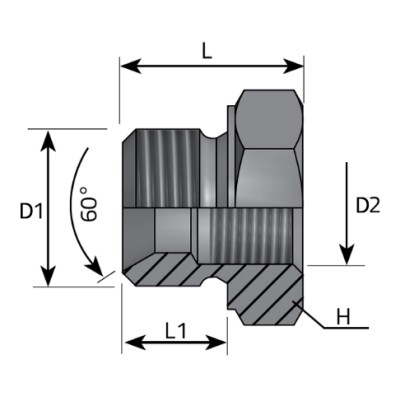

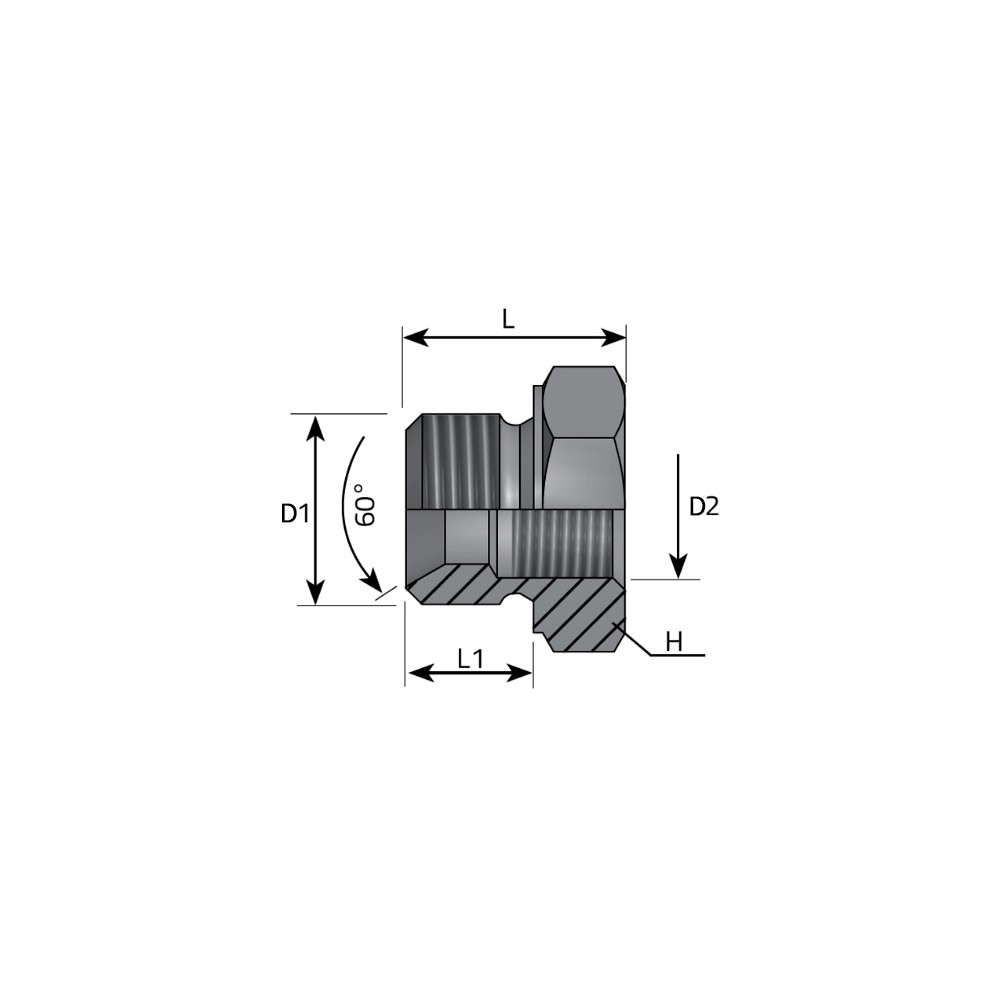

Adaptador Tapón Reductor Macho - Hembra VITILLO

Réf.	Ref. Vitillo	P. Trabajo	Hexágono	Largo (L)	Largo (L1)	Rosca (D1)	Rosca (D2)
081100-04-02	ARMFC0402	350 bar 5075 psi	19 mm	18 mm	11 mm	1/4"	1/8"
081100-06-02	ARMFC0602	350 bar 5075 psi	22 mm	21,5 mm	12,5 mm	3/8"	1/8"
081100-06-04	ARMFC0604	350 bar 5075 psi	22 mm	21,5 mm	12,5 mm	3/8"	1/4"
081100-08-02	ARMFC0802	315 bar 4568 psi	27 mm	24 mm	14 mm	1/2"	1/8"
081100-08-04	ARMFC0804	315 bar 4568 psi	27 mm	24 mm	14 mm	1/2"	1/4"
081100-08-06	ARMFC0806	315 bar 4568 psi	27 mm	24 mm	14 mm	1/2"	3/8"
081100-12-04	ARMFC1204	250 bar 3625 psi	32 mm	27 mm	16 mm	3/4"	1/4"
081100-12-06	ARMFC1206	250 bar 3625 psi	32 mm	27 mm	16 mm	3/4"	3/8"
081100-12-08	ARMFC1208	250 bar 3625 psi	32 mm	27 mm	16 mm	3/4"	1/2"
081100-16-08	ARMFC1608	200 bar 2900 psi	41 mm	31,5 mm	18 mm	1"	1/2"
081100-16-12	ARMFC1612	200 bar 2900 psi	41 mm	32 mm	18 mm	1"	3/4"
081100-20-12	ARMFC2012	160 bar 2320 psi	50 mm	34 mm	21 mm	1" 1/4	3/4"
081100-20-16	ARMFC2016	160 bar 2320 psi	50 mm	35,5 mm	21 mm	1" 1/4	1"
081100-24-12	ARMFC2412	125 bar 1810 psi	55 mm	36 mm	21 mm	1" 1/2	3/4"
081100-24-16	ARMFC2416	125 bar 1810 psi	55 mm	36 mm	21 mm	1" 1/2	1"
081100-24-20	ARMFC2420	125 bar 1810 psi	55 mm	36 mm	21 mm	1" 1/2	1" 1/4
081100-32-20	ARMFC3220	80 bar 1160 psi	70 mm	42,5 mm	25 mm	2"	1" 1/4
081100-32-24	ARMFC3224	80 bar 1160 psi	70 mm	42,5 mm	25 mm	2"	1" 1/2
