Réf.	Ref. Vitillo	D.N.	A	B	P. Trabajo	Hexágono	Para Manguera	Rosca
06460-04-06	F45ORFS0406	6	45 mm	15 mm	450 bar 6500 psi	17 mm	6,4 mm 1/4"	9/16"
06460-04-09	F45ORFS0409	6	45,5 mm	15,5 mm	450 bar 6500 psi	22 mm	6,4 mm 1/4"	11/16"
06460-05-09	F45ORFS0509	8	46 mm	15,5 mm	350 bar 5075 psi	22 mm	7,9 mm 5/16"	11/16"
06460-06-06	F45ORFS0606	10	55 mm	24 mm	445 bar 6454 psi	19 mm	9,5 mm 3/8"	9/16"
06460-06-09	F45ORFS0609	10	51 mm	13 mm	445 bar 6454 psi	22 mm	9,5 mm 3/8"	11/16"
06460-06-11	F45ORFS0611	10	52 mm	17 mm	445 bar 6454 psi	24 mm	9,5 mm 3/8"	13/16"
06460-08-11	F45ORFS0811	13	58 mm	18 mm	415 bar 6010 psi	24 mm	12,8 mm 1/2"	13/16"
06460-08-13	F45ORFS0811	13	61 mm	20 mm	415 bar 6010 psi	30 mm	12,8 mm 1/2"	1"
06460-08-14	F45ORFS0814	13	62 mm	24 mm	415 bar 6010 psi	36 mm	12,8 mm 1/2"	1" 3/16
06460-10-13	F45ORFS1013	16	55 mm	20 mm	350 bar 5075 psi	30 mm	16 mm 5/8"	1"
06460-10-14	F45ORFS1013	16	57 mm	21 mm	350 bar 5075 psi	36 mm	16 mm 5/8"	1" 3/16
06460-12-14	F45ORFS1214	20	58 mm	23 mm	350 bar 5075 psi	36 mm	19 mm 3/4"	1" 3/16
06460-12-15	F45ORFS1215	20	62,5 mm	27 mm	350 bar 5075 psi	41 mm	19 mm 3/4"	1" 7/16
06460-16-15	F45ORFS1615	25	81 mm	26 mm	280 bar 4060 psi	41 mm	25,4 mm 1"	1" 7/16
06460-20-21	F45ORFS2021	32	93 mm	34 mm	210 bar 3045 psi	50 mm	31,8 mm 1" 1/4	1" 11/16
06460-24-32	F45ORFS2432	38	112 mm	45 mm	185 bar 2683 psi	60 mm	38,1 mm 1" 1/2	2"

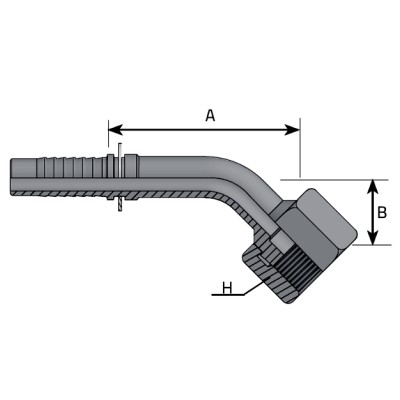

Codo 45 Prensar ORFS VITILLO
