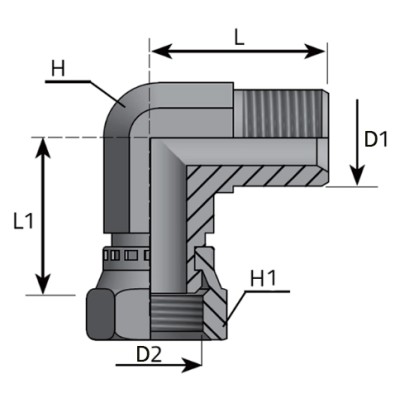

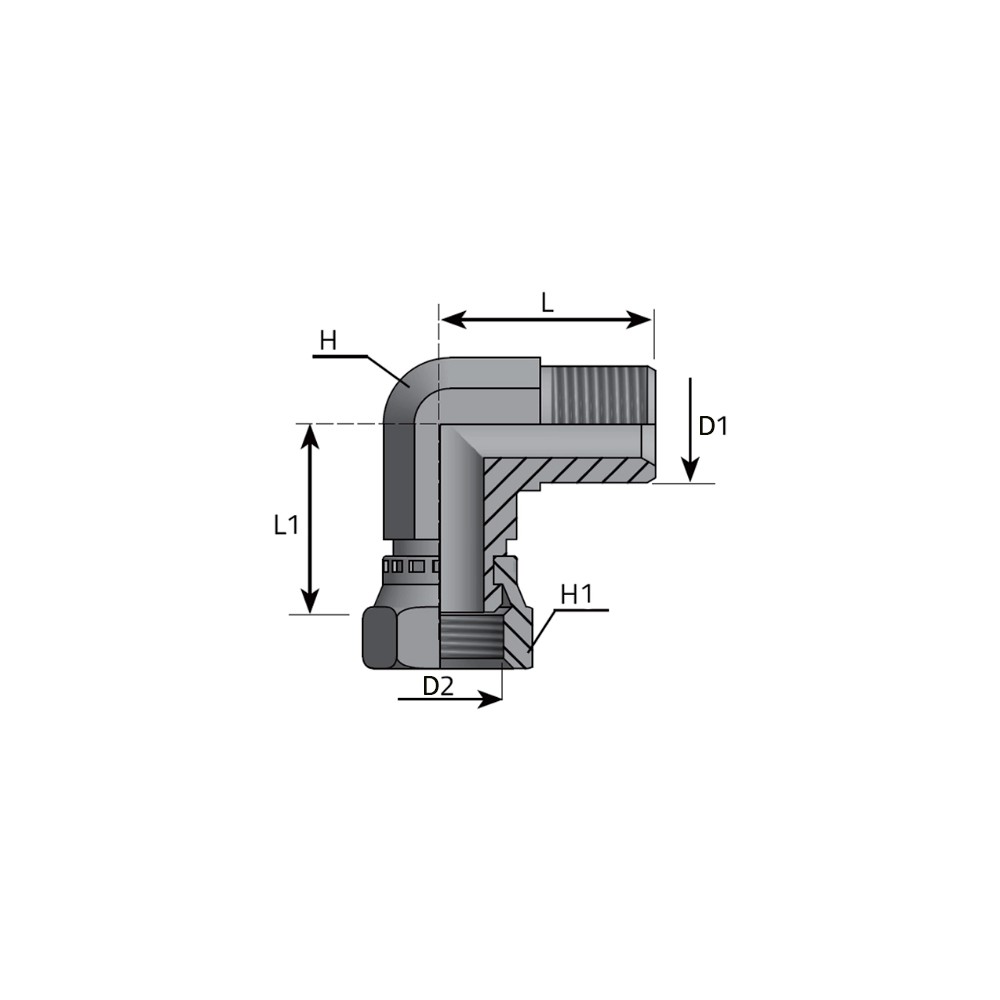

Codo 90 Macho - Tuerca Loca BSP 60 Forjado VITILLO

Réf.	Ref. Vitillo	P. Trabajo	Hexágono	Hexagono 1	Largo (L)	Largo (L1)	Rosca (D1)	Rosca (D2)
086210-04-04	LMG04FGG04	350 bar 5075 psi	14 mm	19 mm	27 mm	30,5 mm	1/4"	1/4"
086210-06-06	LMG06FGG06	350 bar 5075 psi	19 mm	22 mm	29 mm	36 mm	3/8"	3/8"
086210-08-08	LMG08FGG08	315 bar 4568 psi	22 mm	27 mm	36,5 mm	39 mm	1/2"	1/2"
086210-12-12	LMG12FGG12	250 bar 3625 psi	27 mm	32 mm	42 mm	45 mm	3/4"	3/4"
086210-16-16	LMG16FGG16	200 bar 2900 psi	33 mm	38 mm	50 mm	50 mm	1"	1"
086210-20-20	LMG20FGG20	160 bar 2320 psi	41 mm	50 mm	56 mm	64 mm	1" 1/4	1" 1/4
