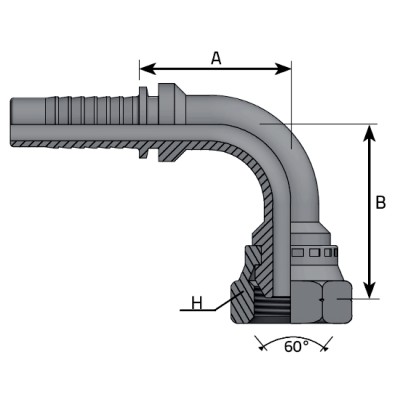

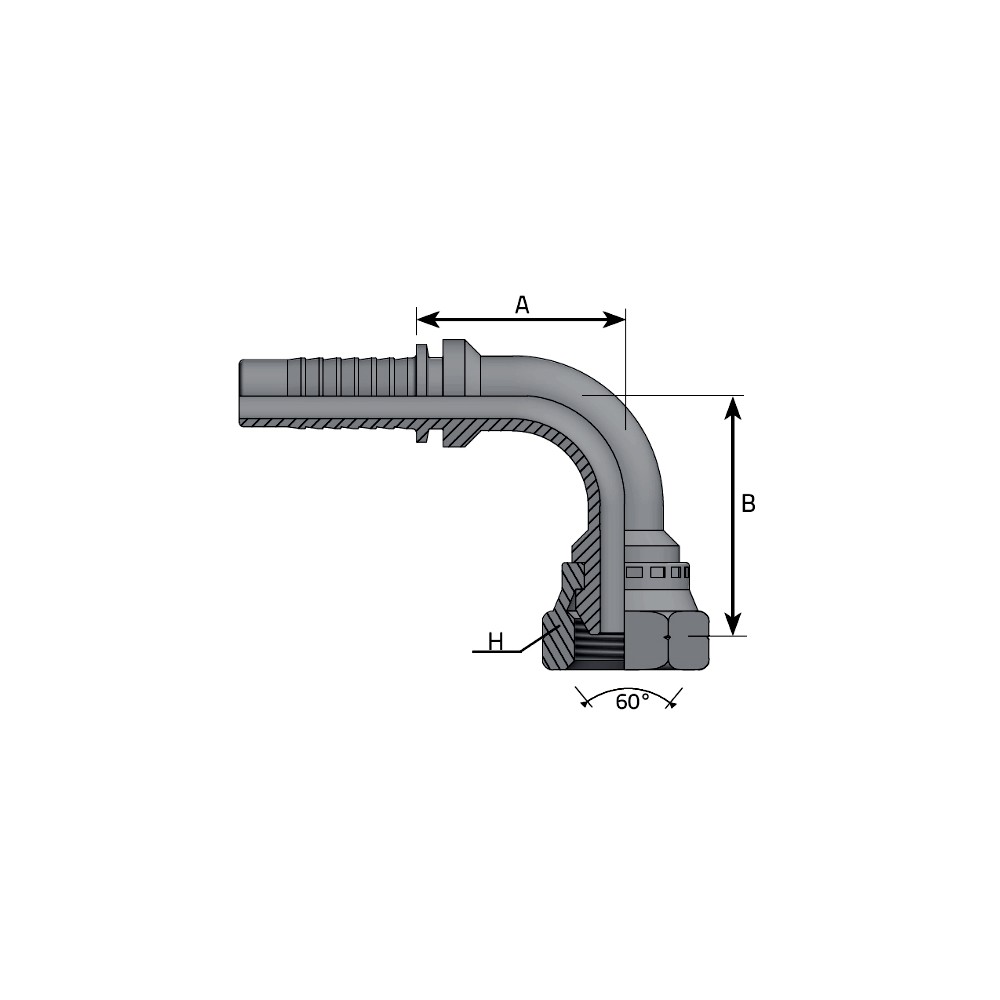

Codo 90 Prensar Asiento 60 VITILLO

Conector: Hembra
Rosca: Métrica, Métrica 24º
Tipo: Estándar

Réf.	Ref. Vitillo	D.N.	A	B	P. Trabajo	Hexágono	Para Manguera	Rosca	Nota
06330-03-10	F90M0310	5	23 mm	29 mm	350 bar 5075 psi	15 mm	4,8 mm 3/16"	M 10	—
06330-03-12	F90M0312	5	23 mm	29 mm	350 bar 5075 psi	17 mm	4,8 mm 3/16"	M 12	—
06330-04-10	F90M0410	6	23 mm	29 mm	350 bar 5075 psi	15 mm	6,4 mm 1/4"	M 10	—
06330-04-12	F90M0412	6	23 mm	29 mm	350 bar 5075 psi	17 mm	6,4 mm 1/4"	M 12	—
06330-04-14	F90M0414	6	23 mm	29 mm	350 bar 5075 psi	19 mm	6,4 mm 1/4"	M 14	—
06330-04-16	F90M0416	6	23 mm	32 mm	350 bar 5075 psi	22 mm	6,4 mm 1/4"	M 16	—
06330-04-18	F90M0418	6	23 mm	32 mm	350 bar 5075 psi	22 mm	6,4 mm 1/4"	M 18	—
06330-05-14	F90M0514	8	31,5 mm	33,5 mm	350 bar 5075 psi	19 mm	7,9 mm 5/16"	M 14	—
06330-05-16	F90M0516	8	31,5 mm	35,5 mm	350 bar 5075 psi	22 mm	7,9 mm 5/16"	M 16	—
06330-05-18	F90M0518	8	31,5 mm	35,5 mm	350 bar 5075 psi	22 mm	7,9 mm 5/16"	M 18	—
06330-06-14	F90M0614	10	33 mm	37 mm	350 bar 5075 psi	19 mm	9,5 mm 3/8"	M 14	—
06330-06-16	F90M0616	10	33 mm	38 mm	350 bar 5075 psi	22 mm	9,5 mm 3/8"	M 16	—
06330-06-18	F90M0618	10	33 mm	38 mm	350 bar 5075 psi	22 mm	9,5 mm 3/8"	M 18	—
06330-06-20	F90M0620	10	33 mm	42 mm	315 bar 4568 psi	27 mm	9,5 mm 3/8"	M 20	—
06330-06-22	—	10	33 mm	42 mm	315 bar 4568 psi	27 mm	9,5 mm 3/8"	M 22	—
06330-08-18	F90M0818	13	39 mm	43 mm	315 bar 4568 psi	24 mm	12,8 mm 1/2"	M 18	—
06330-08-20	F90M0820	—	39 mm	45 mm	315 bar 4568 psi	27 mm	12,8 mm 1/2"	M 20	—
06330-08-22	F90M0822	13	39 mm	45 mm	315 bar 4568 psi	27 mm	12,8 mm 1/2"	M 22	—
06330-08-24	F90M0824	13	39 mm	—	250 bar 3625 psi	30 mm	12,8 mm 1/2"	M 24	—
06330-08-26	F90M0826	13	39 mm	51 mm	250 bar 3625 psi	32 mm	12,8 mm 1/2"	M 26	—
06330-10-26	F90M1026	16	49 mm	56 mm	250 bar 3625 psi	32 mm	16 mm 5/8"	M 26	—
06330-10-27	F90M1027	16	49 mm	56 mm	350 bar 5075 psi	32 mm	16 mm 5/8"	M 27	—
06330-12-26	F90M1226	20	53,5 mm	59 mm	250 bar 3625 psi	32 mm	19 mm 3/4"	M 26	—
06330-12-27	F90M1227	20	53,5 mm	59 mm	250 bar 3625 psi	32 mm	19 mm 3/4"	M 27	—
06330-12-30	F90M1230	20	53,5 mm	63 mm	—	36 mm	19 mm 3/4"	M 30	*
06330-16-38	F90M1638	25	73 mm	72 mm	—	46 mm	25,4 mm 1"	M 38	*
06330-20-45	F90M2045	32	93 mm	89 mm	—	50 mm	31,8 mm 1" 1/4	M 45	*
06330-24-52	F90M2452	38	99 mm	110 mm	—	55 mm	38,1 mm 1" 1/2	M 52	*
