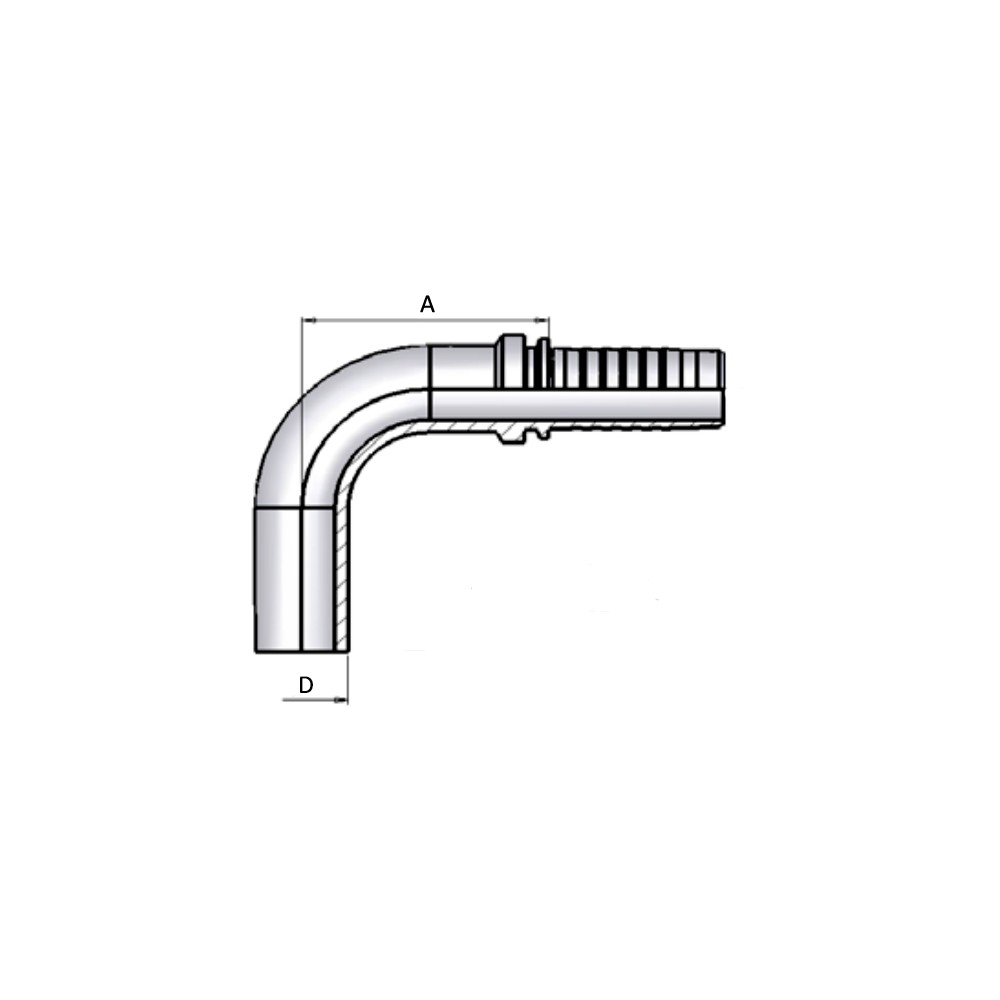

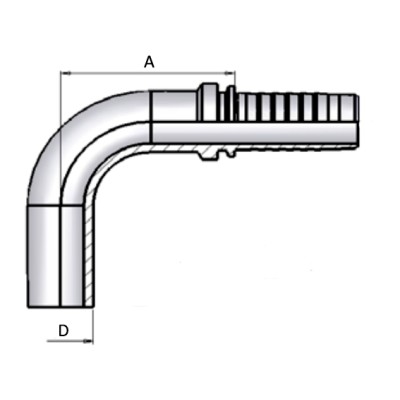

Espiga Lisa Prensar Codo 90

Réf.	I.M.M.	D.N.	A	Diametro	Para Manguera
06530-03-06	0650-03-06	5	20 mm	6 mm	4,8 mm 3/16"
06530-04-06	0650-04-06	6	23 mm	6 mm	6,4 mm 1/4"
06530-04-08	0650-04-08	6	25 mm	8 mm	6,4 mm 1/4"
06530-04-10	0650-04-10	6	25 mm	10 mm	6,4 mm 1/4"
06530-04-12	0650-04-12	6	25 mm	12 mm	6,4 mm 1/4"
06530-05-10	0650-05-10	8	29 mm	10 mm	7,9 mm 5/16"
06530-05-12	0650-05-12	8	29 mm	12 mm	7,9 mm 5/16"
06530-06-10	0650-06-10	10	27 mm	10 mm	9,5 mm 3/8"
06530-06-12	0650-06-12	10	30 mm	12 mm	9,5 mm 3/8"
06530-06-14	0650-06-14	10	33 mm	14 mm	9,5 mm 3/8"
06530-08-12	0650S08-12	13	31 mm	12 mm	12,8 mm 1/2"
06530-08-14	0650-08-14	13	36 mm	14 mm	12,8 mm 1/2"
06530-08-15	0650-08-15	13	42 mm	15 mm	12,8 mm 1/2"
06530-08-16	0650-08-16	13	45 mm	16 mm	12,8 mm 1/2"
06530-08-18	0650S08-18	13	42 mm	18 mm	12,8 mm 1/2"
06530-10-18	0650S10-18	16	42 mm	18 mm	16 mm 5/8"
06530-10-20	0650S10-20	16	48 mm	20 mm	16 mm 5/8"
06530-12-22	0650S12-22	16	53 mm	22 mm	16 mm 5/8"
06530-12-25	0650S12-25	20	57 mm	25 mm	19 mm 3/4"
06530-16-25	0650S16-25	25	58 mm	25 mm	25,4 mm 1"
06530-16-28	0650S16-28	25	65 mm	28 mm	25,4 mm 1"
06530-16-30	0650S16-30	25	66 mm	30 mm	25,4 mm 1"
06530-20-35	0650S20-35	32	77 mm	35 mm	31,8 mm 1" 1/4
06530-20-38	0650S20-38	38	81 mm	38 mm	38,1 mm 1" 1/2
06530-24-42	0650S24-42	38	92 mm	42 mm	38,1 mm 1" 1/2
