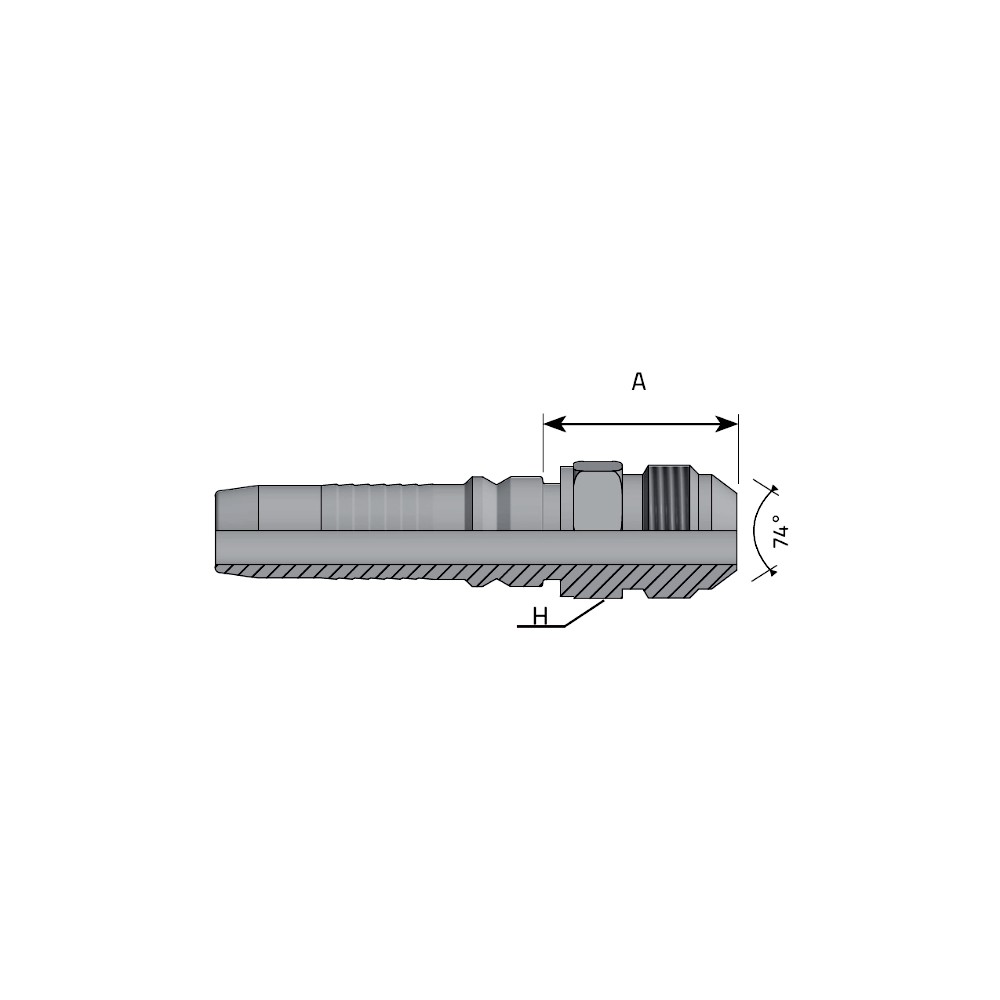

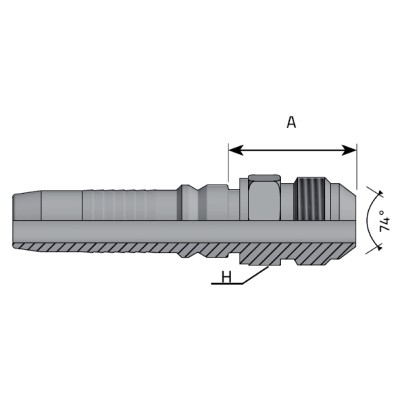

Macho Prensar INTERLOCK JIC VITILLO

Réf.	Ref. Vitillo	D.N.	A	P. Trabajo	Hexágono	Para Manguera	Rosca
H6210-12-12	KMJ1212	20	38 mm	420 bar 6100 psi	27 mm	19 mm 3/4"	1" 1/16
H6210-12-14	KMJ1214	20	39 mm	420 bar 6100 psi	32 mm	19 mm 3/4"	1" 3/16
H6210-12-16	KMJ1216	20	39 mm	420 bar 6100 psi	34 mm	19 mm 3/4"	1" 5/16
H6210-16-16	KMJ1616	25	40 mm	414 bar 6004 psi	34 mm	25,4 mm 1"	1" 5/16
H6210-16-20	KMJ1620	25	42,5 mm	414 bar 6004 psi	42 mm	25,4 mm 1"	1" 5/8
H6210-20-20	KMJ2020	32	44 mm	414 bar 6004 psi	42 mm	31,8 mm 1" 1/4	1" 5/8
H6210-20-24	KMJ2024	32	51 mm	414 bar 6004 psi	50 mm	31,8 mm 1" 1/4	1" 7/8
H6210-24-24	KMJ2424	38	51 mm	345 bar 5004 psi	50 mm	38,1 mm 1" 1/2	1" 7/8
H6210-32-32	KMJ3232	50	61,5 mm	345 bar 5004 psi	65 mm	50,8 mm 2"	2" 1/2
