Pasatabique Con Tuerca VITILLO

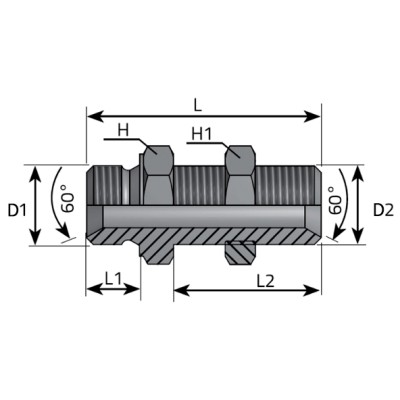

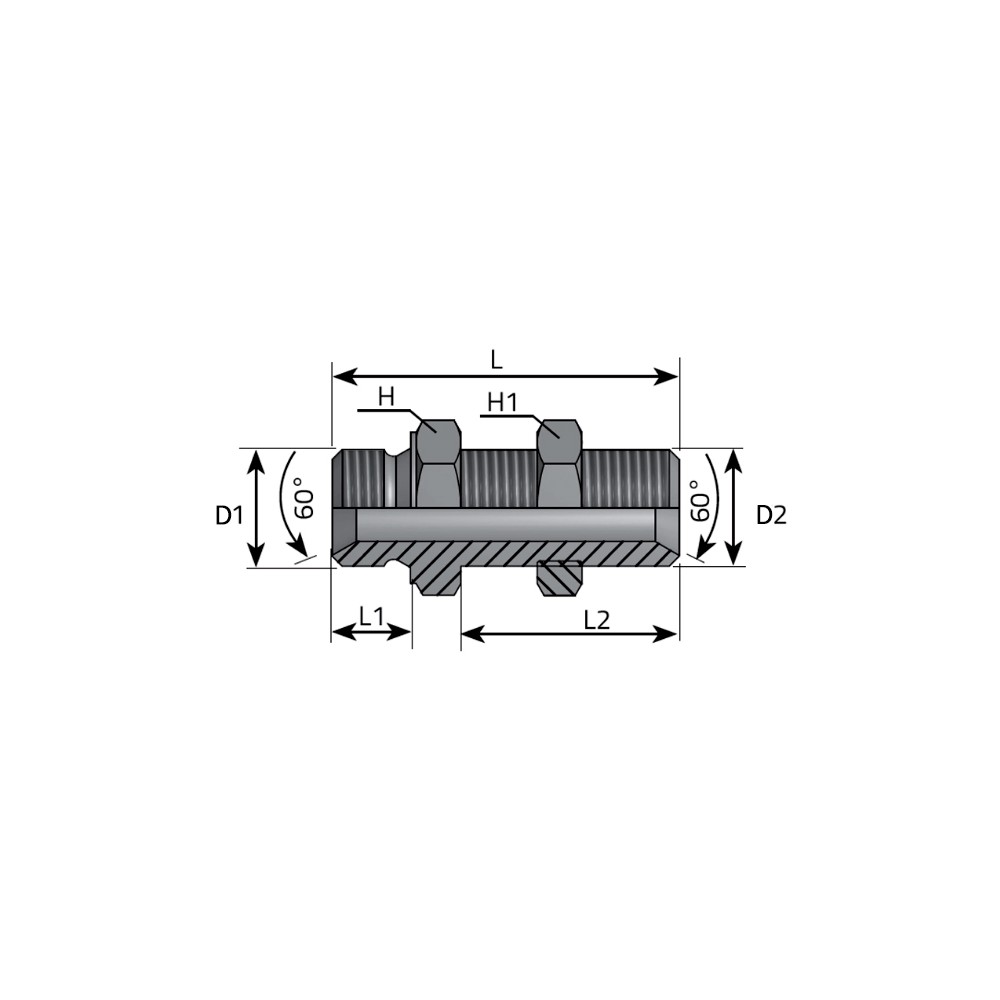

Réf.	Ref. Vitillo	P. Trabajo	Hexágono	Hexagono 1	Largo (L)	Largo (L1)	Largo (L2)	Rosca (D1)	Rosca (D2)
080900-04	ANGG0404P	350 bar	19 mm	19 mm	48 mm	11 mm	30 mm	1/4"	1/4"
080900-06	ANGG0606P	350 bar	22 mm	22 mm	55,5 mm	12,5 mm	35 mm	3/8"	3/8"
080900-08	ANGG0808P	315 bar	27 mm	27 mm	64 mm	14 mm	39 mm	1/2"	1/2"
080900-12	ANGG1212P	250 bar	32 mm	36 mm	73 mm	16 mm	46 mm	3/4"	3/4"
080900-16	ANGG1616P	200 bar	41 mm	41 mm	86 mm	18 mm	55,5 mm	1"	1"
080900-20	ANGG2020P	160 bar	50 mm	50 mm	81 mm	20 mm	44,5 mm	1" 1/4	1" 1/4
080900-24	ANGG2424P	125 bar	55 mm	55 mm	88 mm	22 mm	49 mm	1" 1/2	1" 1/2
080900-32	ANGG3232P	80 bar	70 mm	70 mm	95 mm	24 mm	54 mm	2"	2"
