Adaptador Macho BSP Macho BSPT VITILLO

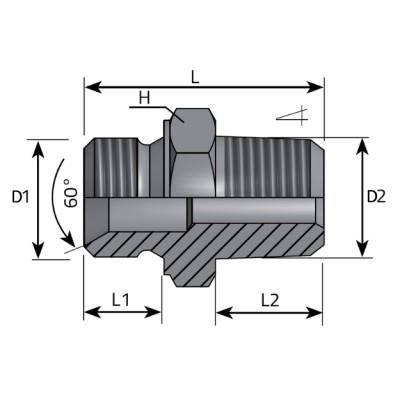

Ref.	Ref. Vitillo	P. Trabajo	Hexágono	Largo (L)	Largo (L1)	Largo (L2)	Rosca (D1)	Rosca (D2)
080701-02-02	ANGK0202	350 bar 5075 psi	14 mm	25,5 mm 1"	9,5 mm	9 mm	1/8"	1/8"
080701-04-04	ANGK0404	350 bar 5075 psi	19 mm	32 mm	11 mm	14 mm	1/4"	1/4"
080701-04-06	ANGK0406	350 bar 5075 psi	19 mm	32 mm	11 mm	14 mm	1/4"	3/8"
080701-06-04	ARGK0604	350 bar 5075 psi	22 mm	34,5 mm	12,5 mm	14 mm	3/8"	1/4"
080701-06-06	ANGK0606	350 bar 5075 psi	22 mm	34,5 mm	12,5 mm	14 mm	3/8"	3/8"
080701-06-08	ANGK0608	315 bar 4568 psi	22 mm	40,5 mm	12,5 mm	19 mm	3/8"	1/2"
080701-08-06	ARGK0806	315 bar 4568 psi	27 mm	38 mm	14 mm	14 mm	1/2"	3/8"
080701-08-08	ANGK0808	315 bar 4568 psi	27 mm	43 mm	14 mm	19 mm	1/2"	1/2"
080701-12-08	ARGK1208	250 bar 3625 psi	32 mm	46 mm	16 mm	19 mm	3/4"	1/2"
080701-12-12	ANGK1212	250 bar 3625 psi	32 mm	46 mm	16 mm	19 mm	3/4"	3/4"
080701-16-12	ARGK1612	200 bar 2900 psi	41 mm	50 mm	18 mm	19 mm	1"	3/4"
080701-16-16	ANGK1616	200 bar 2900 psi	41 mm	57 mm	18 mm	26 mm	1"	1"
080701-20-20	ANGK2020	160 bar 2320 psi	50 mm	59,5 mm	20 mm	25 mm	1" 1/4	1" 1/4
080701-24-24	ANGK2424	125 bar 1810 psi	55 mm	58 mm	21 mm	23 mm	1" 1/2	1" 1/2
080701-32-32	ANGK3232	80 bar 1160 psi	70 mm	67 mm	25 mm	27 mm	2"	2"
