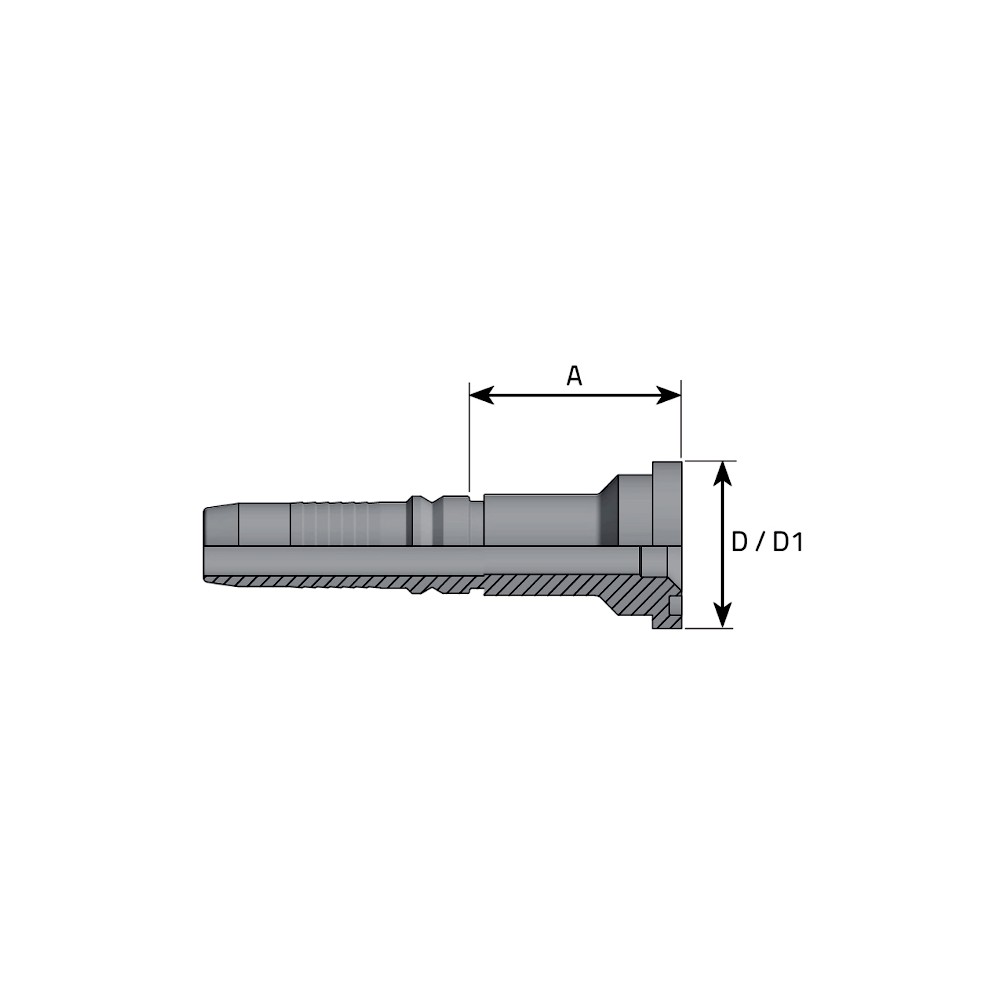

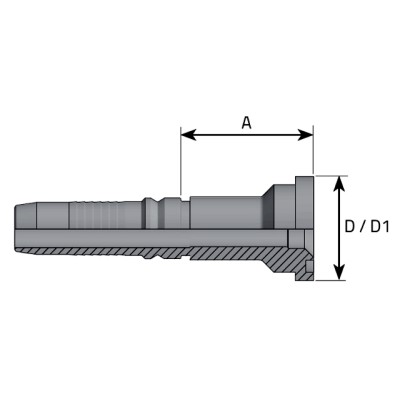

Brida Recta INTERLOCK 3000 Psi VITILLO

Ref.	Ref. Vitillo	D.N.	A	P. Trabajo	Diametro	Diametro 1	Para Manguera
H6620-12-12	KFDL1212I	20	56,7 mm	420 bar	3/4"	38,1 mm	19 mm 3/4"
H6620-12-16	KFDL1216I	20	48,7 mm	420 bar	1"	44,5 mm	19 mm 3/4"
H6620-16-12	KFDL1612I	25	47,6 mm	415 bar	3/4"	38,1 mm	25,4 mm 1"
H6620-16-16	KFDL1616I	25	47,6 mm	415 bar	1"	44,5 mm	25,4 mm 1"
H6620-16-20	KFDL1620I	25	64,6 mm	415 bar	1" 1/4	50,8 mm 2"	25,4 mm 1"
H6620-20-20	KFDL2020I	32	68,7 mm	250 bar	1" 1/4	50,8 mm 2"	31,8 mm 1" 1/4
H6620-20-24	KFDL2024I	32	78,7 mm	250 bar	1" 1/2	60,3 mm	31,8 mm 1" 1/4
H6620-24-24	KFDL2424I	38	68,5 mm	200 bar	1" 1/2	60,3 mm	38,1 mm 1" 1/2
H6620-24-32	KFDL2432I	38	70,5 mm	200 bar	2"	71,4 mm	38,1 mm 1" 1/2
H6620-32-32	KFDL3232I	50	70,5 mm	200 bar	2"	71,4 mm	50,8 mm 2"
