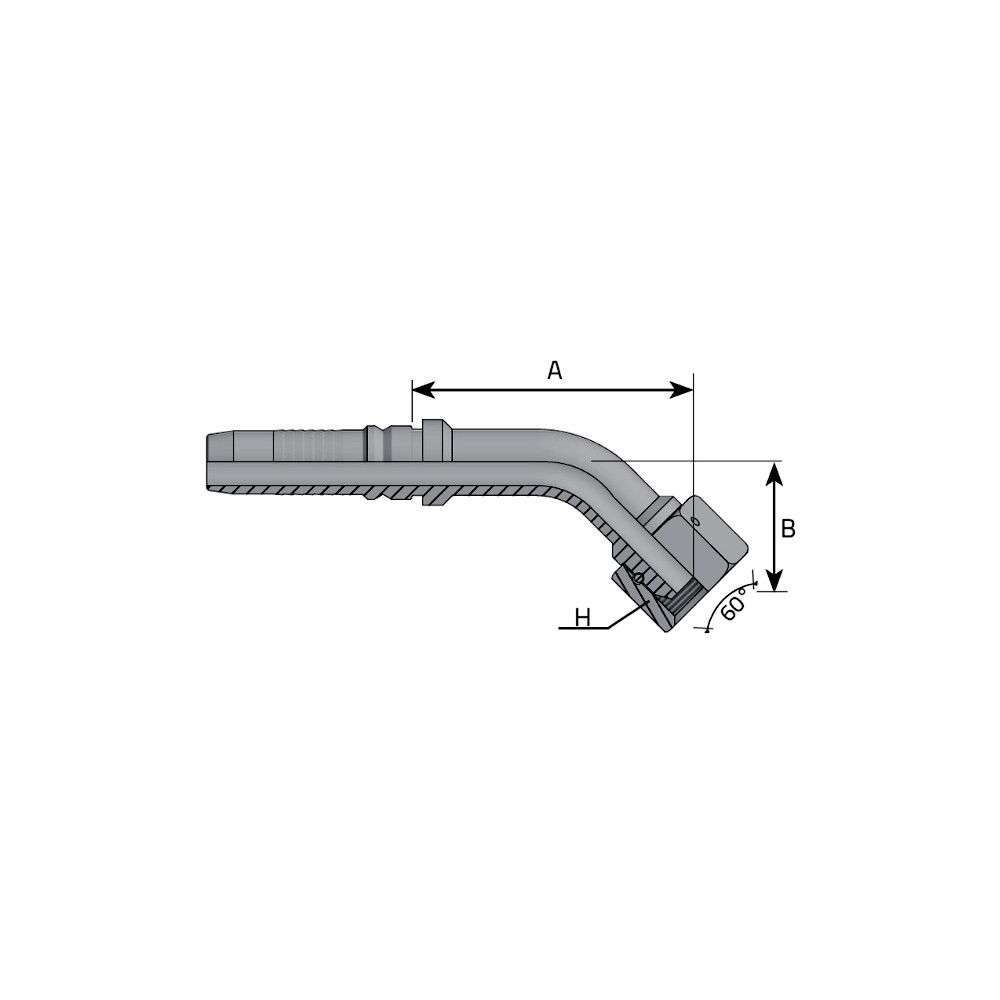

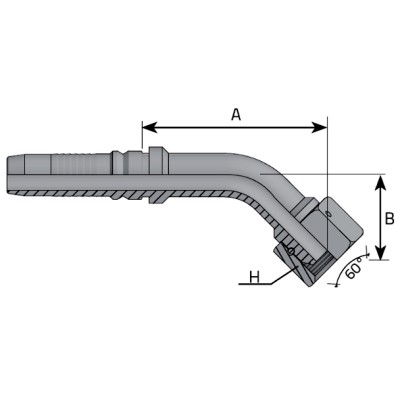

Codo 45 Prensar INTERLOCK VITILLO

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo	Hexágono	Para Manguera	Rosca
H6160-12-12	KF45G1212	20	60,7 mm	29 mm	420 bar	32 mm	19 mm 3/4"	3/4"
H6160-16-16	KF45G1616	25	87,5 mm	41 mm	420 bar	38 mm	25,4 mm 1"	1"
H6160-20-20	KF45G2020	32	100,5 mm	44 mm	420 bar	50 mm	31,8 mm 1" 1/4	1" 1/4
H6160-24-24	KF45G2424	38	116,5 mm	45 mm	345 bar	55 mm	38,1 mm 1" 1/2	1" 1/2
H6160-32-32	KF45G3232	50	156 mm	68 mm	345 bar	70 mm	50,8 mm 2"	2"
