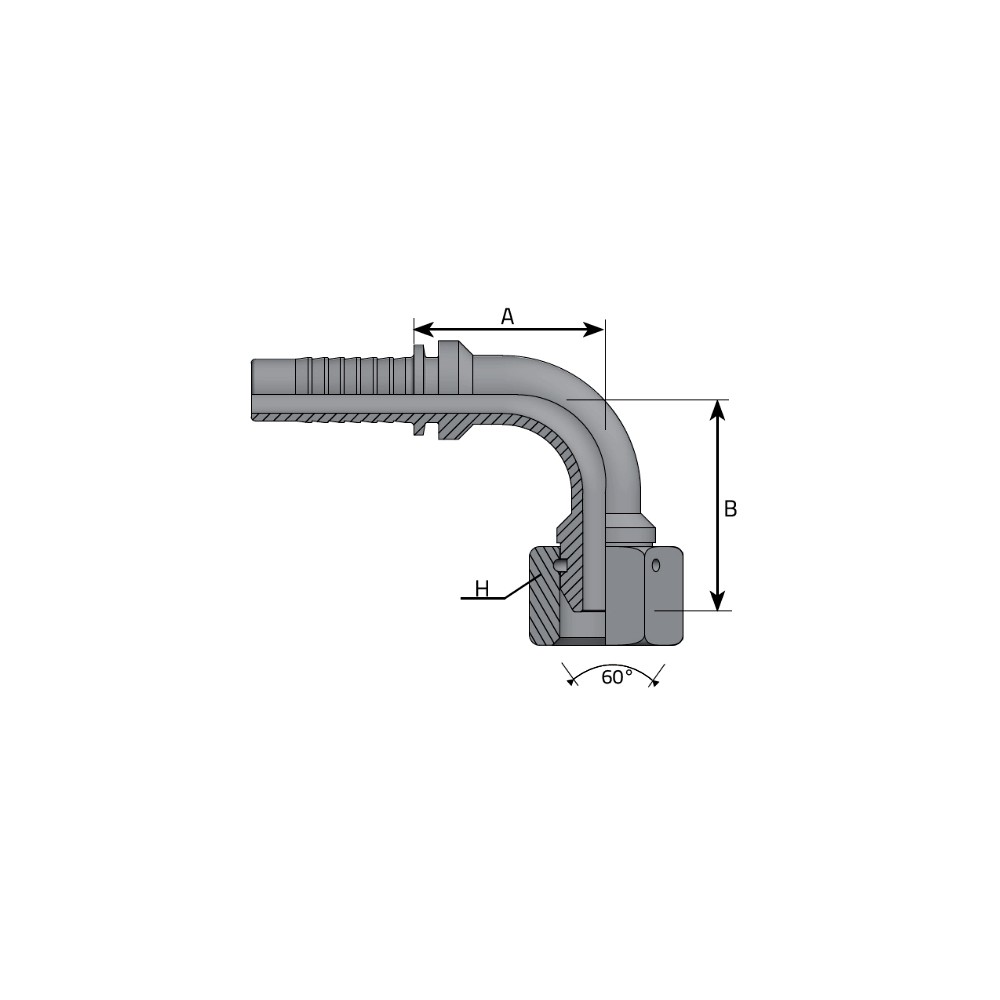

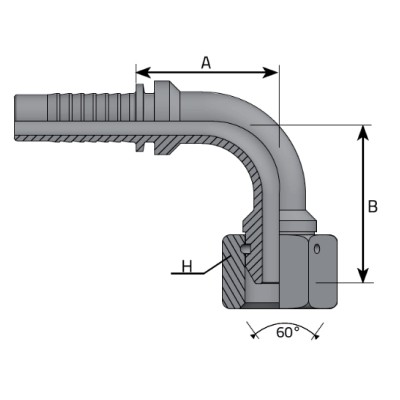

Codo 90 Prensar VITILLO

Conector: Hembra
Rosca: BSPP
Tipo: Estándar

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo	Hexágono	Para Manguera	Rosca
06130-03-02	F90G0302	5	23 mm	29 mm	350 bar 5075 psi	15 mm	4,8 mm 3/16"	1/8"
06130-03-04	F90G0304	5	23 mm	29 mm	415 bar 6010 psi	19 mm	4,8 mm 3/16"	1/4"
06130-04-02	F90G0402	6	23 mm	29 mm	350 bar 5075 psi	15 mm	6,4 mm 1/4"	1/8"
06130-04-04	F90G0404	6	23 mm	29 mm	450 bar 6500 psi	19 mm	6,4 mm 1/4"	1/4"
06130-04-06	F90G0406	6	23 mm	32 mm	450 bar 6500 psi	22 mm	6,4 mm 1/4"	3/8"
06130-04-08	F90G0408	6	31,5 mm	30 mm	350 bar 5075 psi	27 mm	6,4 mm 1/4"	1/2"
06130-05-04	F90G0504	8	31,5 mm	33,5 mm	350 bar 5075 psi	19 mm	7,9 mm 5/16"	1/4"
06130-05-06	F90G0506	8	31,5 mm	35,5 mm	350 bar 5075 psi	22 mm	7,9 mm 5/16"	3/8"
06130-05-08	F90G0508	8	31,5 mm	39 mm	350 bar 5075 psi	27 mm	7,9 mm 5/16"	1/2"
06130-06-04	F90G0604	10	33 mm	37 mm	450 bar 6500 psi	19 mm	9,5 mm 3/8"	1/4"
06130-06-06	F90G0402	10	33 mm	38 mm	450 bar 6500 psi	22 mm	9,5 mm 3/8"	3/8"
06130-06-08	F90G0608	10	33 mm	42 mm	450 bar 6500 psi	27 mm	9,5 mm 3/8"	1/2"
06130-08-06	F90G0806	13	39 mm	43 mm	415 bar 6010 psi	22 mm	12,8 mm 1/2"	3/8"
06130-08-08	F90G0808	13	39 mm	43 mm	415 bar 6010 psi	27 mm	12,8 mm 1/2"	1/2"
06130-08-10	F90G0810	13	39 mm	45 mm	415 bar 6010 psi	28 mm	12,8 mm 1/2"	5/8"
06130-08-12	F90G0812	13	39 mm	51 mm	415 bar 6010 psi	32 mm	12,8 mm 1/2"	3/4"
06130-10-08	F90G1008	16	49 mm	54 mm	350 bar 5075 psi	27 mm	16 mm 5/8"	1/2"
06130-10-10	F90G1010	16	49 mm	54 mm	350 bar 5075 psi	28 mm	16 mm 5/8"	5/8"
06130-10-12	F90G1012	16	49 mm	56 mm	350 bar 5075 psi	32 mm	16 mm 5/8"	3/4"
06130-12-08	F90G1208	20	53,5 mm	56 mm	350 bar 5075 psi	27 mm	19 mm 3/4"	1/2"
06130-12-10	F90G1210	20	53,5 mm	56 mm	350 bar 5075 psi	28 mm	19 mm 3/4"	5/8"
06130-12-12	F90G1212	20	53,5 mm	59 mm	350 bar 5075 psi	32 mm	19 mm 3/4"	3/4"
06130-12-16	F90G1216	20	53,5 mm	65 mm	350 bar 5075 psi	38 mm	19 mm 3/4"	1"
06130-16-12	F90G1612	25	68,5 mm	72 mm	280 bar 4060 psi	32 mm	25,4 mm 1"	3/4"
06130-16-16	F90G1616	25	73 mm	72 mm	280 bar 4060 psi	38 mm	25,4 mm 1"	1"
06130-16-20	F90G1620	25	73 mm	80 mm	280 bar 4060 psi	50 mm	25,4 mm 1"	1" 1/4
06130-20-20	F90G2020	32	89 mm	93 mm	210 bar 3045 psi	55 mm	31,8 mm 1" 1/4	1" 1/2
06130-20-24	F90G2024	32	89 mm	98,5 mm	210 bar 3045 psi	55 mm	31,8 mm 1" 1/4	1" 1/2
06130-24-24	F90G2424	38	101 mm	114 mm	185 bar 2683 psi	55 mm	38,1 mm 1" 1/2	1" 1/2
06130-24-32	F90G2432SP	38	101 mm	118 mm	185 bar 2683 psi	70 mm	38,1 mm 1" 1/2	2"
06130-32-32	F90G3232SP	50	135 mm	136 mm	165 bar 2393 psi	70 mm	50,8 mm 2"	2"
