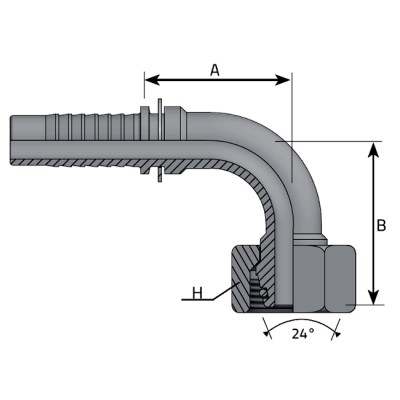

Codo 90 Prensar 24 Serie L VITILLO

Conector: Hembra
Rosca: DIN
Tipo: Estándar

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo	Diametro	Hexágono	Para Manguera	Rosca	Nota
06332-03-12	F90E0312L6	5	29,5 mm	31,5 mm	250 bar 3625 psi	6 mm	14 mm	4,8 mm 3/16"	M 12	—
06332-03-14	F90E0314L8	5	29,5 mm	31,5 mm	250 bar 3625 psi	8 mm	17 mm	4,8 mm 3/16"	M 14	—
06332-04-12	F90E0412L6	6	29,5 mm	31,5 mm	250 bar 3625 psi	6 mm	17 mm	6,4 mm 1/4"	M 12	*
06332-04-14	F90E0414L8	6	29,5 mm	31,5 mm	250 bar 3625 psi	8 mm	17 mm	6,4 mm 1/4"	M 14	—
06332-04-16	F90E0416L10	6	29 mm	32,5 mm	250 bar 3625 psi	10 mm	19 mm	6,4 mm 1/4"	M 16	—
06332-04-18	F90E0418L12	6	27 mm	30,5 mm	250 bar 3625 psi	12 mm	22 mm	6,4 mm 1/4"	M 18	—
06332-05-14	F90E0514L8	8	31,5 mm	36,7 mm	250 bar 3625 psi	8 mm	19 mm	7,9 mm 5/16"	M 14	*
06332-05-16	F90E0516L10	8	31 mm	32,5 mm	250 bar 3625 psi	10 mm	19 mm	7,9 mm 5/16"	M 16	—
06332-05-18	F90E0518L12	8	29 mm	37 mm	250 bar 3625 psi	12 mm	22 mm	7,9 mm 5/16"	M 18	—
06332-06-16	F90E0616L10	10	33 mm	38 mm	250 bar 3625 psi	10 mm	19 mm	9,5 mm 3/8"	M 16	*
06332-06-18	F90E0618L12	10	35,5 mm	37,5 mm	250 bar 3625 psi	12 mm	22 mm	9,5 mm 3/8"	M 18	—
06332-06-22	F90E0622L15	10	34 mm	42 mm	250 bar 3625 psi	15 mm	27 mm	9,5 mm 3/8"	M 22	—
06332-08-18	F90E0818L12	13	39 mm	49 mm	250 bar 3625 psi	12 mm	22 mm	12,8 mm 1/2"	M 18	*
06332-08-22	F90E0822L15	13	39,5 mm	44 mm	250 bar 3625 psi	15 mm	27 mm	12,8 mm 1/2"	M 22	—
06332-08-26	F90E0822L15	13	39,5 mm	46,5 mm	160 bar 2320 psi	18 mm	32 mm	12,8 mm 1/2"	M 26	—
06332-10-26	F90E1026L18	16	48,5 mm	50,5 mm	160 bar 2320 psi	18 mm	32 mm	16 mm 5/8"	M 26	—
06332-10-30	F90E1030L22	16	48,5 mm	53 mm	160 bar 2320 psi	22 mm	36 mm	16 mm 5/8"	M 30	—
06332-12-26	F90E1226L18	20	53,5 mm	63,5 mm	160 bar 2320 psi	18 mm	32 mm	19 mm 3/4"	M 26	—
06332-12-30	F90E1230L22	20	56,5 mm	55,5 mm	160 bar 2320 psi	22 mm	36 mm	19 mm 3/4"	M 30	—
06332-16-36	F90E1636L28	25	73 mm	72,5 mm	100 bar 1450 psi	28 mm	41 mm	25,4 mm 1"	M 36	—
06332-20-45	F90E2045L35	32	92 mm	86,5 mm	100 bar 1450 psi	35 mm	50 mm	31,8 mm 1" 1/4	M 42	—
06332-24-52	F90E2452L42	38	99 mm	94 mm	100 bar 1450 psi	42 mm	60 mm	38,1 mm 1" 1/2	M 52	—
