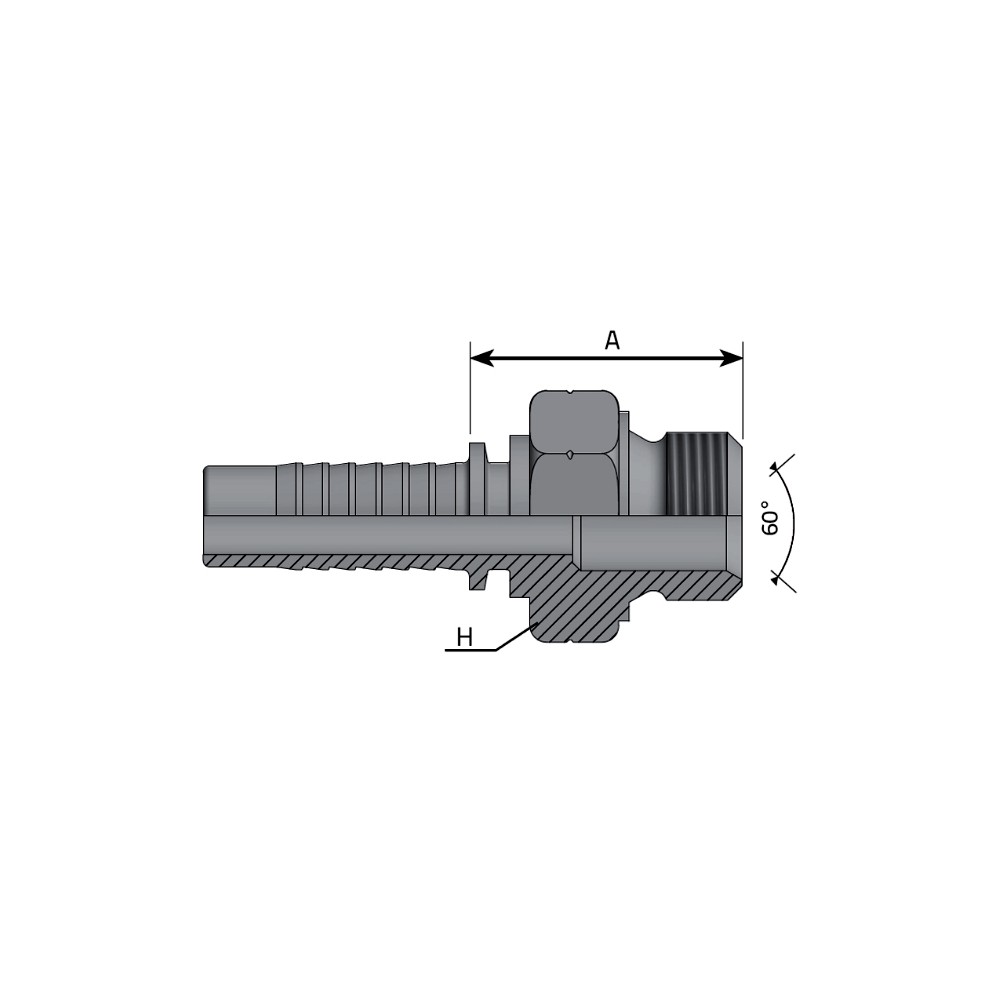

Macho Prensar 60 VITILLO

Ref.	Ref. Vitillo	D.N.	A	P. Trabajo	Hexágono	Para Manguera	Rosca
06310-03-10	MM0310	5	21 mm	400 bar	14 mm	4,8 mm 3/16"	M 10
06310-03-12	MM0312	5	24,5 mm	400 bar	17 mm	4,8 mm 3/16"	M 12
06310-04-10	MM0410	6	21 mm	400 bar	14 mm	6,4 mm 1/4"	M 10
06310-04-12	MM0412	6	1"	400 bar	17 mm	6,4 mm 1/4"	M 12
06310-04-14	MM0414	6	27 mm	400 bar	19 mm	6,4 mm 1/4"	M 14
06310-04-16	MM0416	6	29 mm	400 bar	22 mm	6,4 mm 1/4"	M 16
06310-04-18	MM0418	6	29 mm	400 bar	24 mm	6,4 mm 1/4"	M 18
06310-05-16	MM0516	8	29 mm	350 bar	22 mm	7,9 mm 5/16"	M 16
06310-05-18	MM0518	8	29 mm	350 bar	24 mm	7,9 mm 5/16"	M 18
06310-06-14	MM0614	10	27 mm	400 bar	19 mm	9,5 mm 3/8"	M 14
06310-06-16	MM0616	10	29 mm	400 bar	22 mm	9,5 mm 3/8"	M 16
06310-06-18	MM0618	10	29 mm	400 bar	24 mm	9,5 mm 3/8"	M 18
06310-06-22	MM0622	10	32 mm	350 bar	27 mm	9,5 mm 3/8"	M 22
06310-08-18	MM0818	13	29 mm	400 bar	24 mm	12,8 mm 1/2"	M 18
06310-08-20	MM0820	13	33 mm	350 bar	27 mm	12,8 mm 1/2"	M 20
06310-08-22	MM0822	13	33 mm	350 bar	27 mm	12,8 mm 1/2"	M 22
06310-08-24	MM0824	13	36 mm	315 bar	30 mm	12,8 mm 1/2"	M 24
06310-10-26	MM1026	16	36 mm	315 bar	32 mm	16 mm 5/8"	M 26
06310-12-26	MM1226	20	37 mm	315 bar	32 mm	19 mm 3/4"	M 26
06310-12-30	MM1230	20	36 mm	250 bar	36 mm	19 mm 3/4"	M 30
06310-16-38	MM1638	25	37 mm	200 bar	46 mm	25,4 mm 1"	M 38
06310-20-45	MM2045	32	43,5 mm	160 bar	50 mm	31,8 mm 1" 1/4	M 45
