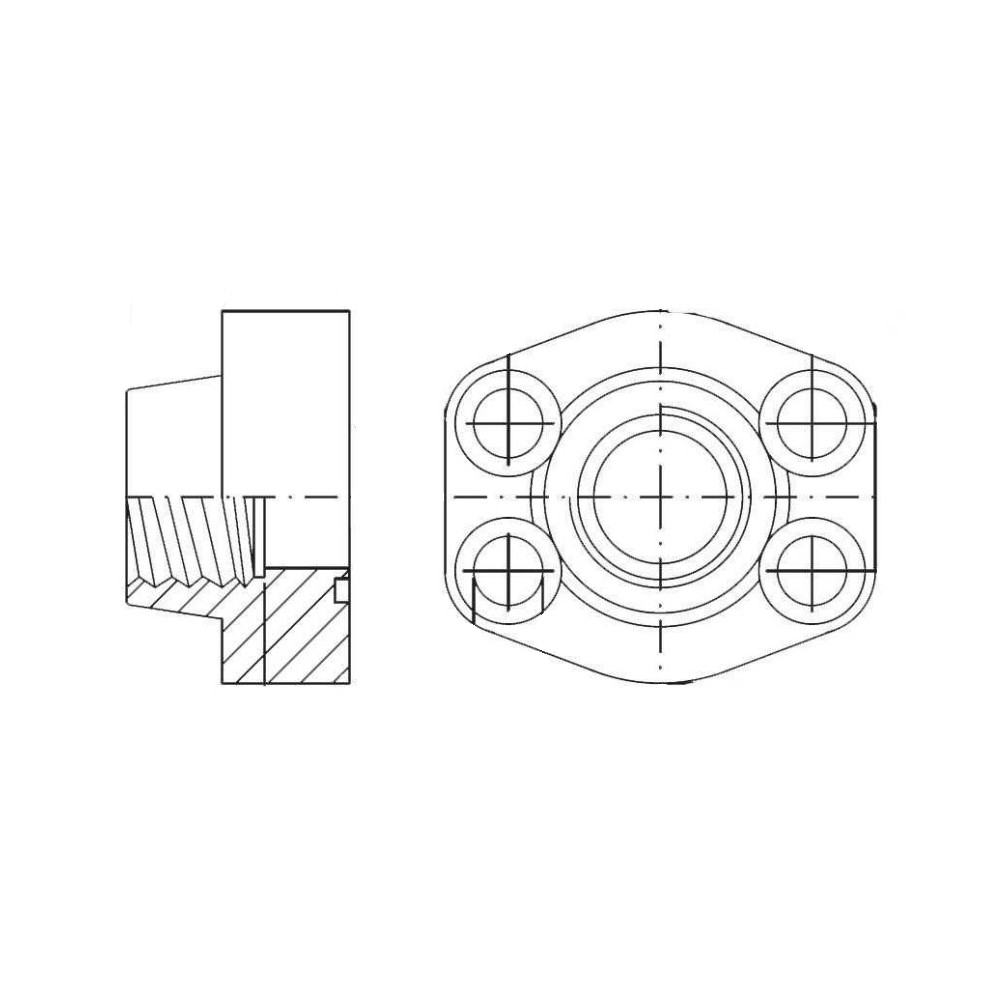

Brida SAE 3000 PSI Rosca Hembra BSP

Ref.	C	D	E	F	Rosca
089000-08-06	38,1 mm	57 mm	17,48 mm	46 mm	3/8"
089000-08-08	38,1 mm	57 mm	17,48 mm	46 mm	1/2"
089000-12-08	47,63 mm	65 mm	22,23 mm	50 mm	1/2"
089000-12-12	47,63 mm	65 mm	22,23 mm	50 mm	3/4"
089000-16-12	52,37 mm	70 mm	26,19 mm	55 mm	3/4"
089000-16-16	52,37 mm	70 mm	26,19 mm	55 mm	1"
089000-20-16	58,72 mm	79 mm	30,18 mm	68 mm	1"
089000-20-20	58,72 mm	79 mm	30,18 mm	68 mm	1" 1/4
089000-24-20	69,85 mm	93 mm	35,71 mm	78 mm	1" 1/4
089000-24-24	69,85 mm	93 mm	35,71 mm	78 mm	1" 1/2
089000-32-24	77,77 mm	102 mm	42,88 mm	90 mm	1" 1/2
089000-32-32	77,77 mm	102 mm	42,88 mm	90 mm	2"
089000-40-40	88,9 mm	—	50,8 mm	—	2" 1/2
089000-48-48	106,38 mm	—	61,93 mm	—	3"
