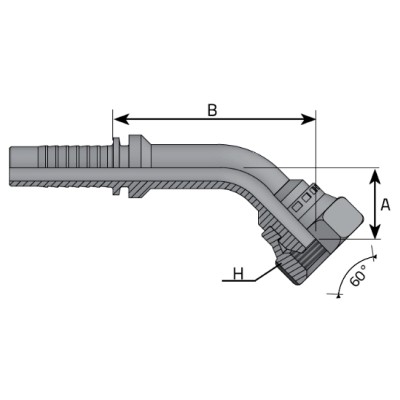

Codo 45 Prensar VITILLO

Conector: Hembra
Forma: Codo 45º
Rosca: BSPP
Tipo: Estándar

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo	Hexágono	Para Manguera	Rosca
06160-03-02	F45G0302	5	40 mm	17 mm	350 bar 5075 psi	15 mm	4,8 mm 3/16"	1/8"
06160-03-04	F45G0304	5	40 mm	17 mm	415 bar 6010 psi	19 mm	4,8 mm 3/16"	1/4"
06160-04-02	F45G0402	6	40 mm	17 mm	350 bar 5075 psi	15 mm	6,4 mm 1/4"	1/8"
06160-04-04	F45G0404	6	40 mm	17 mm	450 bar 6500 psi	19 mm	6,4 mm 1/4"	1/4"
06160-04-06	F45G0406	6	43 mm	20 mm	450 bar 6500 psi	22 mm	6,4 mm 1/4"	3/8"
06160-04-08	F45G0408	6	55 mm	24 mm	450 bar 6500 psi	27 mm	6,4 mm 1/4"	1/2"
06160-05-04	F45G0504	8	51 mm	20 mm	350 bar 5075 psi	19 mm	7,9 mm 5/16"	1/4"
06160-05-06	F45G0506	8	52 mm	21 mm	350 bar 5075 psi	22 mm	7,9 mm 5/16"	3/8"
06160-05-08	F45G0508	8	55 mm	24 mm	350 bar 5075 psi	27 mm	7,9 mm 5/16"	1/2"
06160-06-04	F45G0604	10	54 mm	19 mm	450 bar 6500 psi	19 mm	9,5 mm 3/8"	1/4"
06160-06-06	F45G0606	10	55 mm	23 mm	450 bar 6500 psi	22 mm	9,5 mm 3/8"	3/8"
06160-06-08	F45G0608	10	58 mm	23 mm	450 bar 6500 psi	27 mm	9,5 mm 3/8"	1/2"
06160-08-06	F45G0806	13	63 mm	20 mm	415 bar 6010 psi	22 mm	12,8 mm 1/2"	3/8"
06160-08-08	F45G0808	13	65 mm	23 mm	415 bar 6010 psi	27 mm	12,8 mm 1/2"	1/2"
06160-08-10	F45G0810	13	65 mm	23 mm	415 bar 6010 psi	28 mm	12,8 mm 1/2"	5/8"
06160-08-12	F45G0812	13	66 mm	21 mm	415 bar 6010 psi	32 mm	12,8 mm 1/2"	3/4"
06160-10-08	F45G1008	16	63 mm	25 mm	350 bar 5075 psi	27 mm	16 mm 5/8"	1/2"
06160-10-10	F45G1010	16	64 mm	25 mm	350 bar 5075 psi	28 mm	16 mm 5/8"	5/8"
06160-10-12	F45G1012	16	64 mm	26 mm	350 bar 5075 psi	32 mm	16 mm 5/8"	3/4"
06160-12-08	F45G1208	20	62 mm	28 mm	350 bar 5075 psi	27 mm	19 mm 3/4"	1/2"
06160-12-10	F45G1210	20	63 mm	29 mm	350 bar 5075 psi	28 mm	19 mm 3/4"	5/8"
06160-12-12	F45G1212	20	63 mm	29 mm	350 bar 5075 psi	32 mm	19 mm 3/4"	3/4"
06160-12-16	F45G1216	20	65 mm	31 mm	350 bar 5075 psi	38 mm	19 mm 3/4"	1"
06160-16-12	F45G1612	25	88 mm	39 mm	280 bar 4060 psi	32 mm	25,4 mm 1"	3/4"
06160-16-16	F45G1616	25	90 mm	41 mm	280 bar 4060 psi	38 mm	25,4 mm 1"	1"
06160-16-20	F45G1620	25	93 mm	44 mm	280 bar 4060 psi	50 mm	25,4 mm 1"	1" 1/4
06160-20-20	F45G2020	32	102 mm	44 mm	210 bar 3045 psi	50 mm	31,8 mm 1" 1/4	1" 1/4
06160-20-24	F45G2024	32	103 mm	45 mm	210 bar 3045 psi	55 mm	31,8 mm 1" 1/4	1" 1/2
06160-24-24	F45G2424	38	118 mm	45 mm	185 bar 2683 psi	55 mm	38,1 mm 1" 1/2	1" 1/2
06160-24-32	F45G2432SP	38	101 mm	118 mm	185 bar 2683 psi	70 mm	38,1 mm 1" 1/2	2"
06160-32-32	F45G3232SP	50	145 mm	55 mm	165 bar 2393 psi	70 mm	50,8 mm 2"	2"
