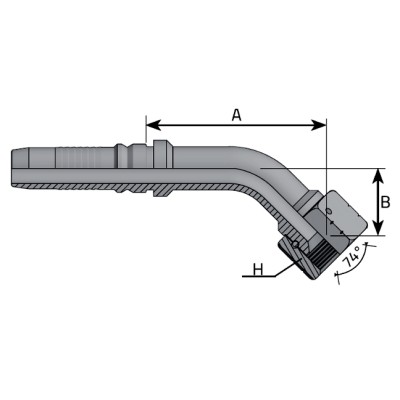

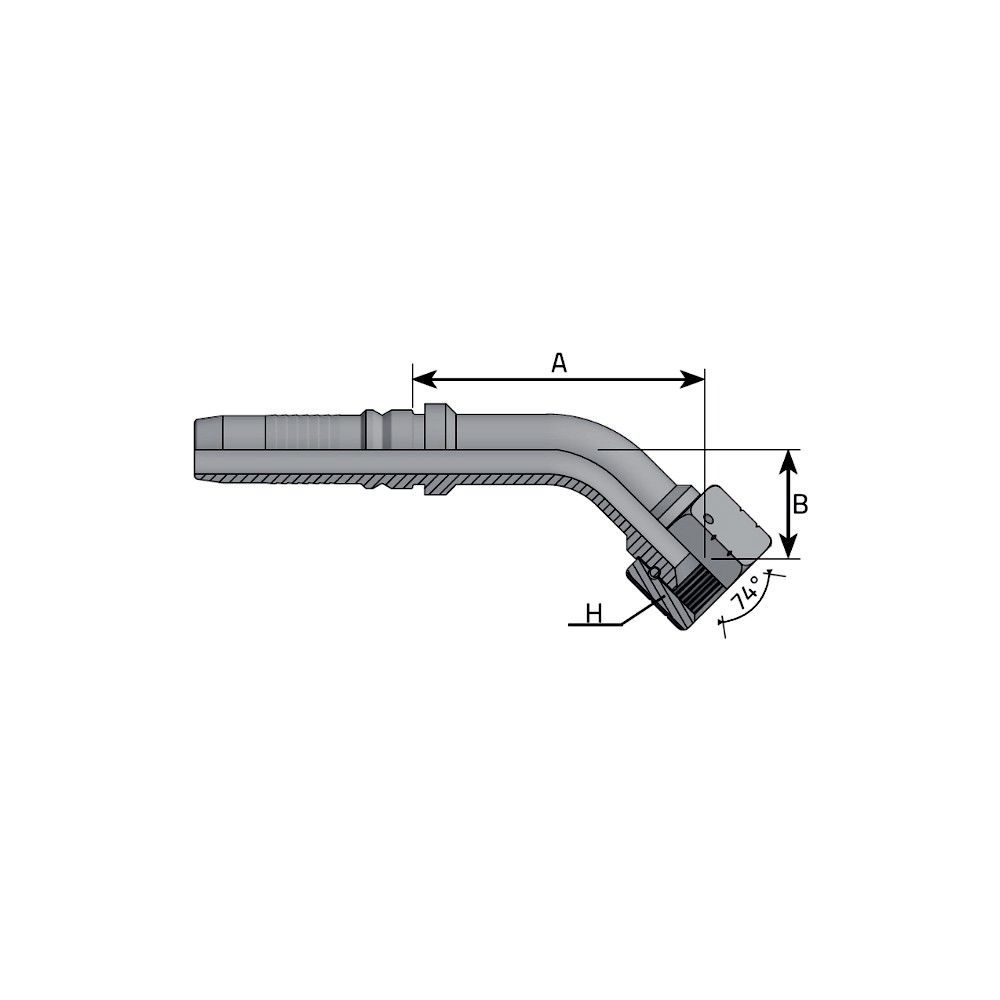

Codo 45 Prensar INTERLOCK JIC VITILLO

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo	Hexágono	Para Manguera	Rosca
H6260-12-12	KF45J1212	20	59,5 mm	29 mm	420 bar 6100 psi	32 mm	19 mm 3/4"	1" 1/16
H6260-12-14	KF45J1214	20	60,5 mm	29 mm	420 bar 6100 psi	36 mm	19 mm 3/4"	1" 3/16
H6260-12-16	KF45J1216	20	60,5 mm	29 mm	420 bar 6100 psi	41 mm	19 mm 3/4"	1" 5/16
H6260-16-16	KF45J1616	25	86 mm	39,5 mm	414 bar 6004 psi	41 mm	25,4 mm 1"	1" 5/16
H6260-16-20	KF45J1620	25	87 mm	38,5 mm	414 bar 6004 psi	50 mm	25,4 mm 1"	1" 5/8
H6260-20-20	KF45J2020	32	99,5 mm	44 mm	414 bar 6004 psi	50 mm	31,8 mm 1" 1/4	1" 5/8
H6260-20-24	KF45J2024	32	101,5 mm	45 mm	414 bar 6004 psi	55 mm	31,8 mm 1" 1/4	1" 7/8
H6260-24-24	KF45J2424	38	116,5 mm	45 mm	345 bar 5004 psi	55 mm	38,1 mm 1" 1/2	1" 7/8
H6260-32-32	KF45J3232	50	156 mm	65,8 mm	345 bar 5004 psi	70 mm	50,8 mm 2"	2" 1/2
