Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo	Hexágono	Para Manguera	Rosca
06230-03-04	F90J0304	5	23 mm	26 mm	350 bar 5075 psi	15 mm	4,8 mm 3/16"	7/16"
06230-03-05	F90J0305	5	23 mm	27 mm	350 bar 5075 psi	17 mm	4,8 mm 3/16"	1/2"
06230-04-04	F90J0404	6	23 mm	26 mm	350 bar 5075 psi	15 mm	6,4 mm 1/4"	7/16"
06230-04-05	F90J0405	6	23 mm	27 mm	350 bar 5075 psi	17 mm	6,4 mm 1/4"	1/2"
06230-04-06	F90J0406	6	23 mm	27 mm	250 bar 3620 psi	19 mm	6,4 mm 1/4"	9/16"
06230-05-05	F90J0505	8	31,5 mm	32 mm	350 bar 5075 psi	17 mm	7,9 mm 5/16"	1/2"
06230-05-06	F90J0506	8	31,5 mm	32 mm	250 bar 3620 psi	19 mm	7,9 mm 5/16"	9/16"
06230-05-07	F90J0507	8	31,5 mm	32,5 mm	—	22 mm	7,9 mm 5/16"	5/8"
06230-05-08	F90J0508	8	31,5 mm	32,5 mm	250 bar 3620 psi	24 mm	7,9 mm 5/16"	3/4"
06230-06-06	F90J0606	10	33 mm	35 mm	250 bar 3620 psi	19 mm	9,5 mm 3/8"	9/16"
06230-06-07	F90J0607	10	33 mm	35,5 mm	—	22 mm	9,5 mm 3/8"	5/8"
06230-06-08	F90J0608	10	33 mm	36,5 mm	250 bar 3620 psi	24 mm	9,5 mm 3/8"	3/4"
06230-06-10	F90J0610	10	33 mm	39,5 mm	200 bar 2900 psi	27 mm	9,5 mm 3/8"	7/8"
06230-08-08	F90J0808	13	39 mm	41 mm	250 bar 3620 psi	24 mm	12,8 mm 1/2"	3/4"
06230-08-10	F90J0810	13	39 mm	42,5 mm	200 bar 2900 psi	27 mm	12,8 mm 1/2"	7/8"
06230-08-12	F90J0812	13	39 mm	50 mm	200 bar 2900 psi	32 mm	12,8 mm 1/2"	1" 1/16
06230-10-10	F90J1010	16	49 mm	50 mm	200 bar 2900 psi	27 mm	16 mm 5/8"	7/8"
06230-10-12	F90J1012	16	49 mm	55 mm	200 bar 2900 psi	32 mm	16 mm 5/8"	1" 1/16
06230-12-10	F90J1210	20	53,5 mm	58 mm	200 bar 2900 psi	27 mm	19 mm 3/4"	7/8"
06230-12-12	F90J1212	20	53,5 mm	58 mm	200 bar 2900 psi	32 mm	19 mm 3/4"	1" 1/16
06230-12-14	F90J1214	20	53,5 mm	61 mm	160 bar 2320 psi	36 mm	19 mm 3/4"	1" 3/16
06230-12-16	F90J1216	20	53,5 mm	62,5 mm	160 bar 2320 psi	41 mm	19 mm 3/4"	1" 5/16
06230-16-12	F90J1612	25	69 mm	80 mm	200 bar 2900 psi	32 mm	25,4 mm 1"	1" 1/16
06230-16-16	F90J1616	25	73 mm	69,5 mm	160 bar 2320 psi	41 mm	25,4 mm 1"	1" 5/16
06230-16-20	F90J1620	25	73 mm	78,5 mm	125 bar 1810 psi	50 mm	25,4 mm 1"	1" 5/8
06230-20-20	F90J2020	32	89 mm	91,5 mm	125 bar 1810 psi	50 mm	31,8 mm 1" 1/4	1" 5/8
06230-20-24	F90J2024	32	89 mm	99 mm	100 bar 1450 psi	55 mm	31,8 mm 1" 1/4	1" 7/8
06230-24-24	F90J2424	38	101 mm	112,5 mm	100 bar 1450 psi	55 mm	38,1 mm 1" 1/2	1" 7/8
06230-32-32	F90J3232SP	50	135 mm	136 mm	80 bar 1160 psi	70 mm	50,8 mm 2"	2" 1/2

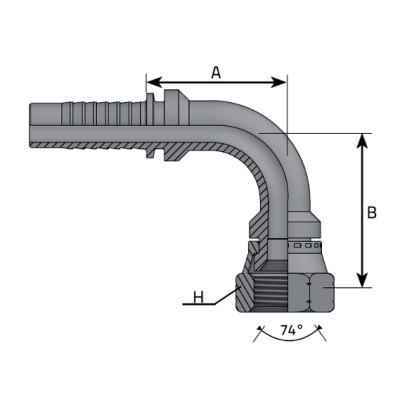

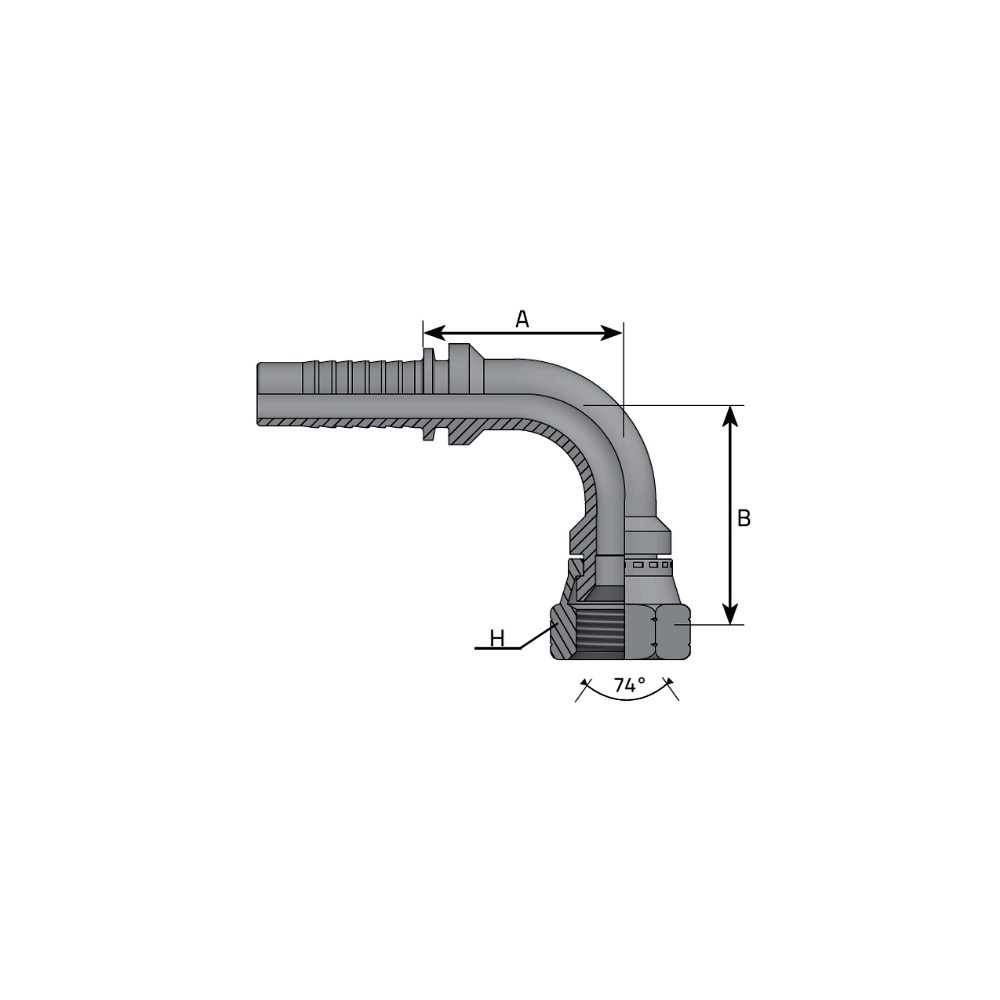

Codo 90 Prensar JIC VITILLO
