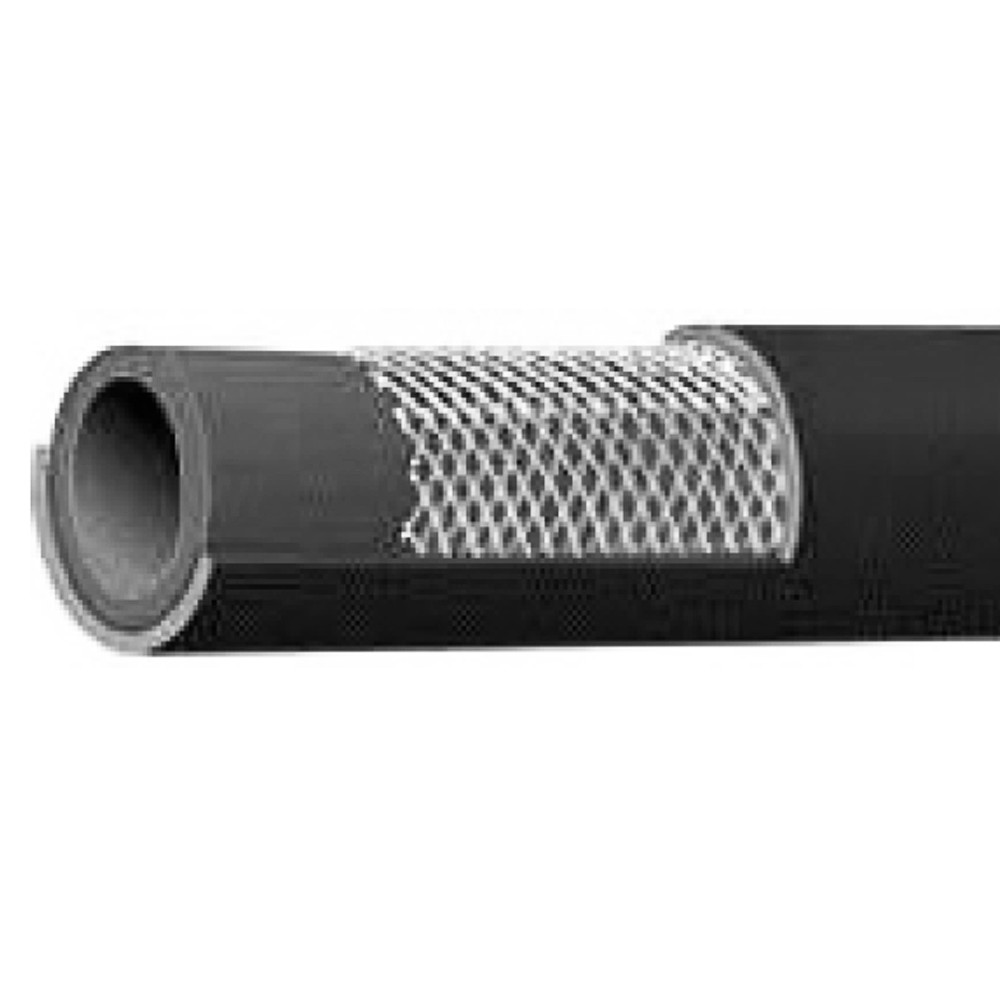

Tubería Hidrocarburos 20 Bar

Característica
Resistencia a la abrasión, Resistente al Ozono
Material
Caucho sintético resistente al aceite
Normativa
UNI EN ISO 1307/97
Temperatura
-25ºC / +90ºC (-13ºF / +194ºF)
Ref.
Ø Interno
Ø Exterior
P. Trabajo
P. Rotura
R. Curvatura
10431-04 6 mm
1/4"
12 mm 20 bar 60 bar 50 mm
10431-05 8 mm
5/16"
16 mm 20 bar 60 bar 65 mm
10431-06 10 mm
3/8"
18 mm 20 bar 60 bar 80 mm
10431-08 13 mm
1/2"
21 mm 20 bar 60 bar 105 mm
10431-10 15 mm
5/8"
26 mm 20 bar 60 bar 130 mm
10431-12 19 mm
3/4"
30 mm 20 bar 60 bar 150mm
10431-16 25 mm
1"
36 mm 20 bar 60 bar 200 mm
 Product is available
 Product is no longer in stock
 Product is no in stock, but is allowed to be back-ordered
