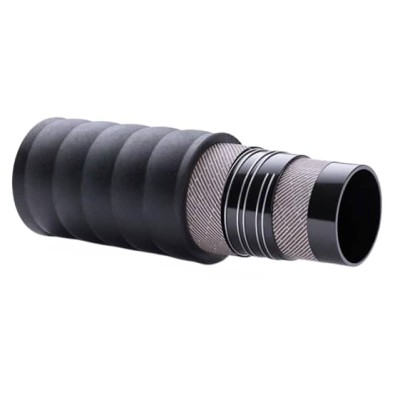

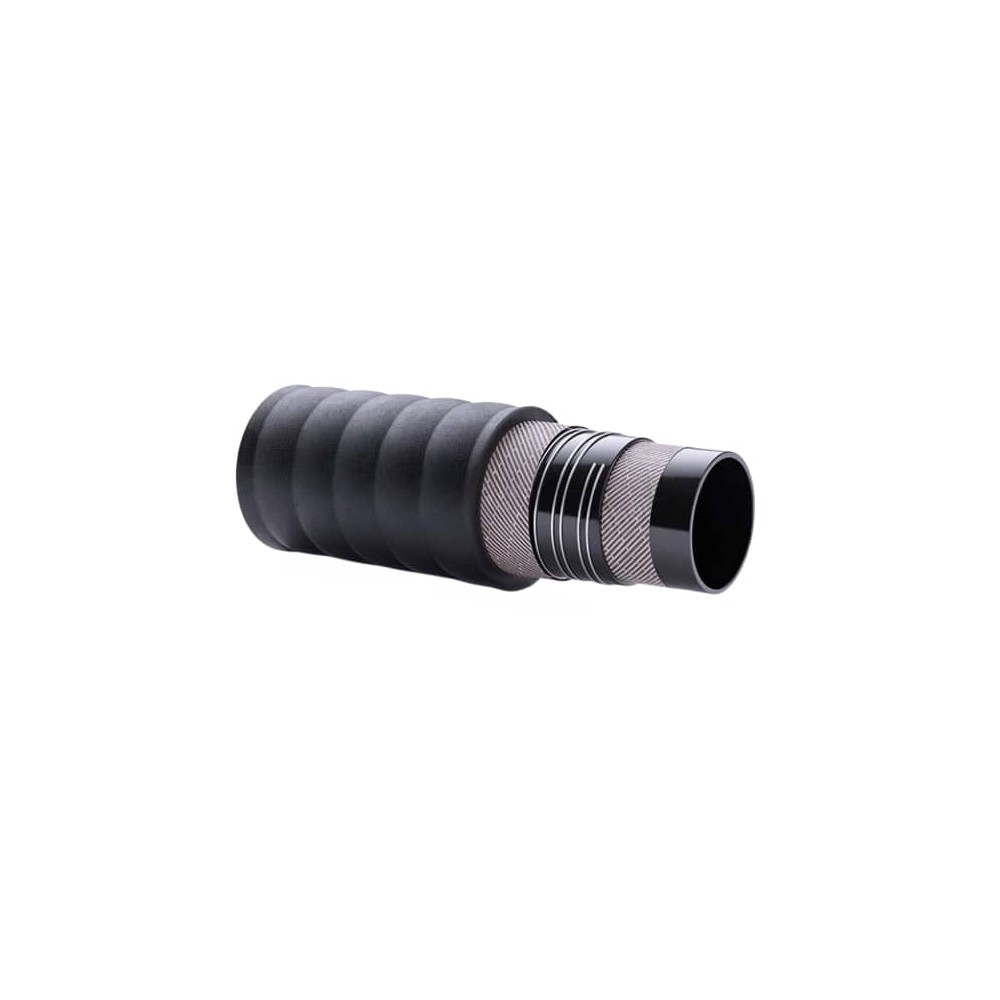

Tubería Hidrocarburos Multiflex 13 Bar
Mandrel built suction and delivery hose suitable for multiple applications with hot water until 120ºC and petroleum products up to 50% of aromatic content oleo dynamic oil in return current circuits until 100ºC. High flexibility thanks to its corrugated cover.
| Ref. | |||
|---|---|---|---|
| 10436M-102 | 102 mm | 13 bar | 205 mm |
| 10436M-50 | 51 mm | 13 bar | 100 mm |
| 10436M-60 | 60 mm | 13 bar | 120 mm |
| 10436M-63 | 63mm | 13 bar | 125 mm |
| 10436M-76 | 76 mm | 13 bar | 150mm |
Product is available
Product is no longer in stock
Product is no in stock, but is allowed to be back-ordered
Tube: Blank NBR conductive rubber.
Reinforcement: High tensile textile plies and helix wire embedded.
Cover: Black NBR conductive rubber, resistant to abrasion, oils, fats, weather and ozone. Flame resistant according to TRbF 131 - Teil 2 – 5,5.
Temperature for mineral oils: -25ºC +100ºC
Temperature for hot water: -25ºC 120ºC
Working pressure: 13 bar
Burst pressure: 39 bar
