Adaptador Macho - Macho BSPP (Pulgadas) VITILLO

Adaptador Macho-Macho BSPP

Conector: Macho
Rosca: BSPP

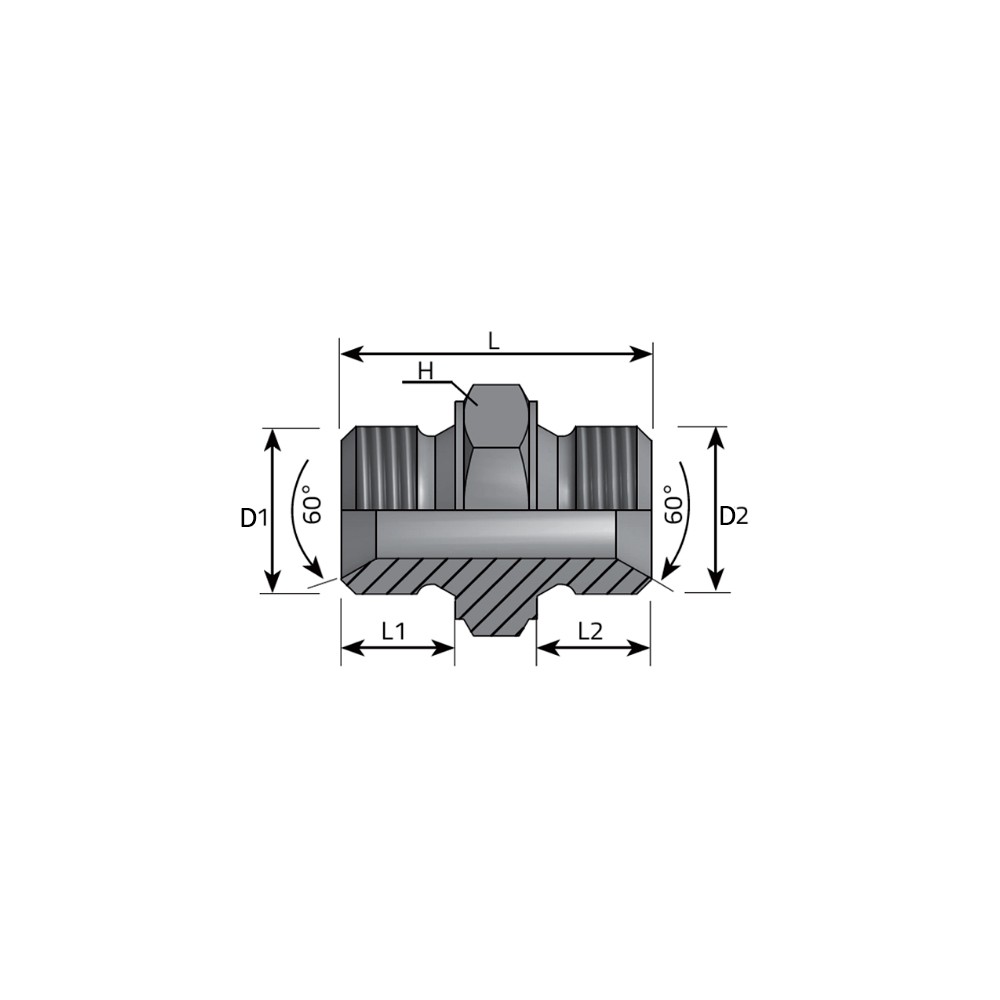

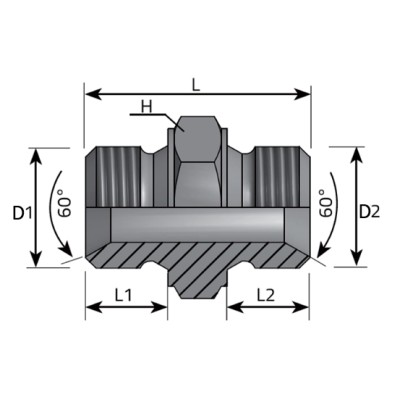

Ref. COVASA	Ref. Vitillo	P. Trabajo	Hexágono	Largo (L)	Largo (L1)	Largo (L2)	Longitud	Rosca (D1)	Rosca (D2)
080700-02-02	ANGG0202	350 bar	14 mm	25 mm	19,5 mm	9,5 mm	—	1/8"	1/8"
080700-04-02	ARGG0402	350 bar	19 mm	27,5 mm	11 mm	9,5 mm	—	1/4"	1/8"
080700-04-04	ANGG0404	350 bar	19 mm	29 mm	11 mm	11 mm	—	1/4"	1/4"
080700-06-02	ARGG0602	350 bar	22 mm	30 mm	12,5 mm	9,5 mm	—	3/8"	1/8"
080700-06-04	ARGG0604	350 bar	22 mm	31,5 mm	12,5 mm	11 mm	—	3/8"	1/4"
080700-06-06	ANGG0606	350 bar	22 mm	34 mm	12,5 mm	12,5 mm	—	3/8"	3/8"
080700-08-04	ARGG0804	315 bar	27 mm	35 mm	14 mm	11 mm	—	1/2"	1/4"
080700-08-06	ARGG0806	315 bar	27 mm	36,5 mm	14 mm	12,5 mm	—	1/2"	3/8"
080700-08-08	ANGG0808	315 bar	27 mm	38 mm	14 mm	14 mm	—	1/2"	1/2"
080700-10-08	ARGG1008	315 bar	30 mm	40 mm	16 mm	14 mm	—	5/8"	1/2"
080700-10-10	ANGG1010	315 bar	30 mm	42 mm	16 mm	16 mm	—	5/8"	5/8"
080700-12-04	ARGG1204	250 bar	32 mm	37,5 mm	16 mm	11 mm	—	3/4"	1/4"
080700-12-06	ARGG1206	250 bar	32 mm	38,5 mm	16 mm	12,5 mm	—	3/4"	3/8"
080700-12-08	ARGG1208	250 bar	32 mm	40 mm	16 mm	14 mm	—	3/4"	1/2"
080700-12-10	ARGG1210	250 bar	32 mm	43,5 mm	16 mm	16 mm	—	3/4"	5/8"
080700-12-12	ANGG1212	250 bar	32 mm	42 mm	16 mm	16 mm	—	3/4"	3/4"
080700-16-06	ARGG1606	200 bar	41 mm	42,5 mm	18 mm	12,5 mm	—	1"	3/8"
080700-16-08	ARGG1608	200 bar	41 mm	44 mm	18 mm	14 mm	—	1"	1/2"
080700-16-12	ARGG1612	200 bar	41 mm	46 mm	18 mm	16 mm	—	1"	3/4"
080700-16-16	ANGG1616	200 bar	41 mm	48 mm	18 mm	18 mm	—	1"	1"
080700-20-12	ARGG2012	160 bar	50 mm	50,5 mm	20 mm	16 mm	—	1" 1/4	3/4"
080700-20-16	ARGG2016	160 bar	50 mm	52,5 mm	20 mm	18 mm	—	1" 1/4	1"
080700-20-20	ANGG2020	160 bar	50 mm	54 mm	20 mm	20 mm	—	1" 1/4	1" 1/4
080700-24-12	ARGG2412	125 bar	55 mm	53 mm	22 mm	16 mm	—	1" 1/2	3/4"
080700-24-16	ARGG2416	125 bar	55 mm	55 mm	22 mm	18 mm	—	1" 1/2	1"
080700-24-20	ARGG2420	125 bar	55 mm	57 mm	22 mm	20 mm	—	1" 1/2	1" 1/4
080700-24-24	ANGG2424	125 bar	55 mm	57 mm	21 mm	21 mm	—	1" 1/2	1" 1/2
080700-32-16	ARGG3216	80 bar	70 mm	60 mm	25 mm	18 mm	—	2"	1"
080700-32-20	ARGG3220	80 bar	70 mm	60,5 mm	25 mm	20 mm	—	2"	1" 1/4
080700-32-24	ARGG3224	80 bar	70 mm	63 mm	25 mm	21 mm	—	2"	2"
080700-32-32	ANGG3232	80 bar	70 mm	67 mm	25 mm	25 mm	—	2"	2"
080700-35-32	—	—	85 mm	—	—	—	72 mm	2" 1/2	2"
