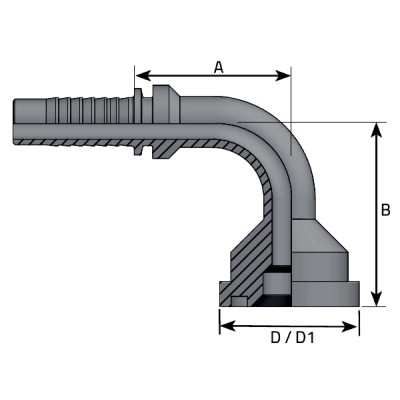

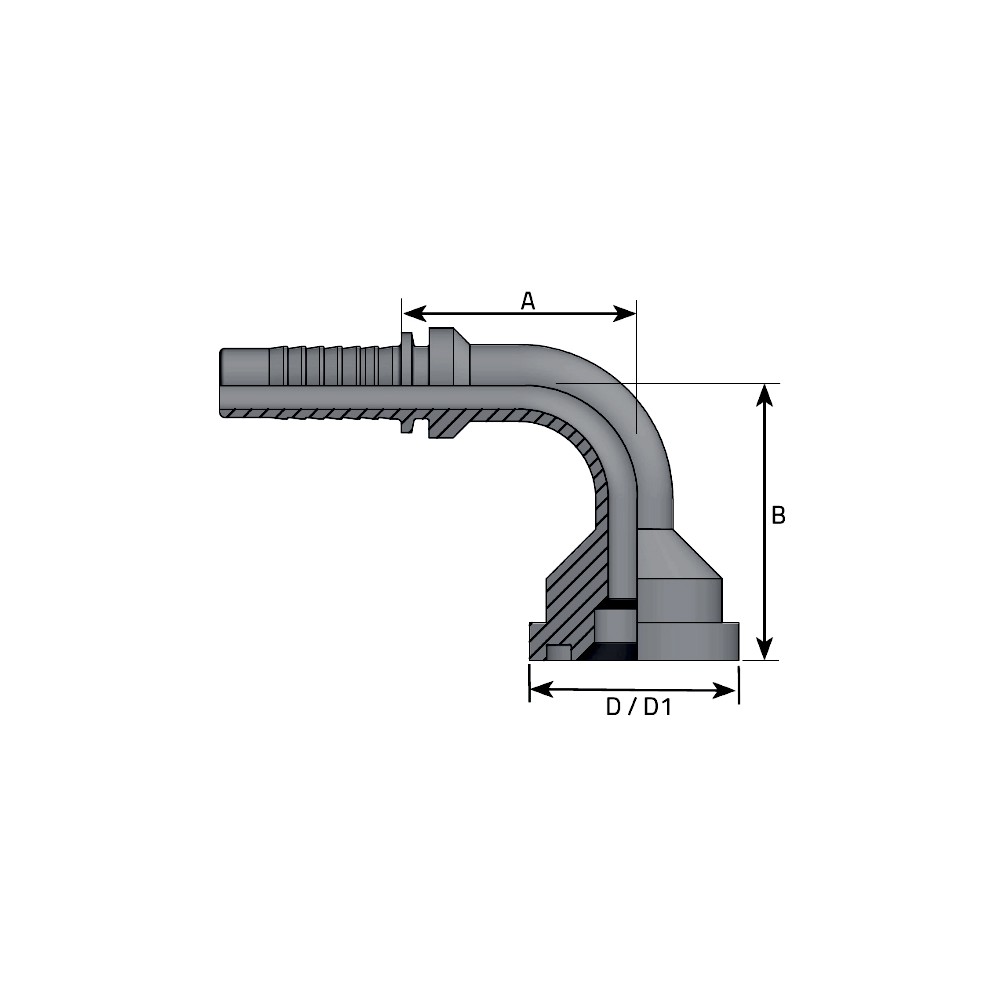

Imagen	Ref. CVS	Ref. Vitillo	D.N.	Para Manguera	A	Diametro 1	Diametro	B	P. Trabajo	Nota
	06630-08-08	F90L0808I	13	12,8 mm 1/2"	39 mm	30,2 mm	1/2"	43 mm	350 bar 5075 psi
	06630-08-10	F90L0810I	13	12,8 mm 1/2"	39 mm	34 mm	5/8"	47 mm	350 bar 5075 psi	*
	06630-08-12	F90L0812I	13	12,8 mm 1/2"	39 mm	38,1 mm	3/4"	50 mm	350 bar 5075 psi
	06630-10-08	F90L1008I	16	16 mm 5/8"	49 mm	30,2 mm	1/2"	49 mm	350 bar 5075 psi
	06630-10-12	F90L1012I	16	16 mm 5/8"	49 mm	38,1 mm	3/4"	55 mm	350 bar 5075 psi
	06630-12-08	F90L1208I	20	19 mm 3/4"	57 mm	30,2 mm	1"	52 mm	350 bar 5075 psi
	06630-12-12	F90L1212I	20	19 mm 3/4"	57 mm	38,1 mm	3/4"	58 mm	350 bar 5075 psi
	06630-12-16	F90L1216I	25	25,4 mm 1"	57 mm	44,5 mm	1"	62 mm	350 bar 5075 psi
	06630-16-12	F90L1612I	25	25,4 mm 1"	77 mm	38,1 mm	3/4"	60 mm	280 bar 4060 psi
	06630-16-16	F90L1616I	25	25,4 mm 1"	77 mm	44,5 mm	1"	64 mm	280 bar 4060 psi
	06630-16-20	F90L1620I	25	25,4 mm 1"	77 mm	50,8 mm 2"	1" 1/4	70 mm	280 bar 4060 psi
	06630-20-16	F90L2016I	32	31,8 mm 1" 1/4	89 mm	44,5 mm	1"	82 mm	210 bar 3045 psi
	06630-20-20		32	31,8 mm 1" 1/4	89 mm	50,8 mm 2"	1" 1/4	87 mm	210 bar 3045 psi
	06630-20-24	F90L2024I	32	31,8 mm 1" 1/4	89 mm	60,3 mm	1" 1/2	88 mm	210 bar 3045 psi
	06630-24-24	F90L2424I	38	38,1 mm 1" 1/2	101 mm	60,3 mm	1" 1/2	102 mm	185 bar 2683 psi
	06630-24-32	F90L2432I	38	38,1 mm 1" 1/2	101 mm	71,4 mm	2"	118 mm	185 bar 2683 psi
	06630-32-32	F90L3232I	50	50,8 mm 2"	144 mm	71,4 mm	2"	120 mm	170 bar 2466 psi
Total: 0,0

Brida Prensar Codo 90º 3000 Psi VITILLO
