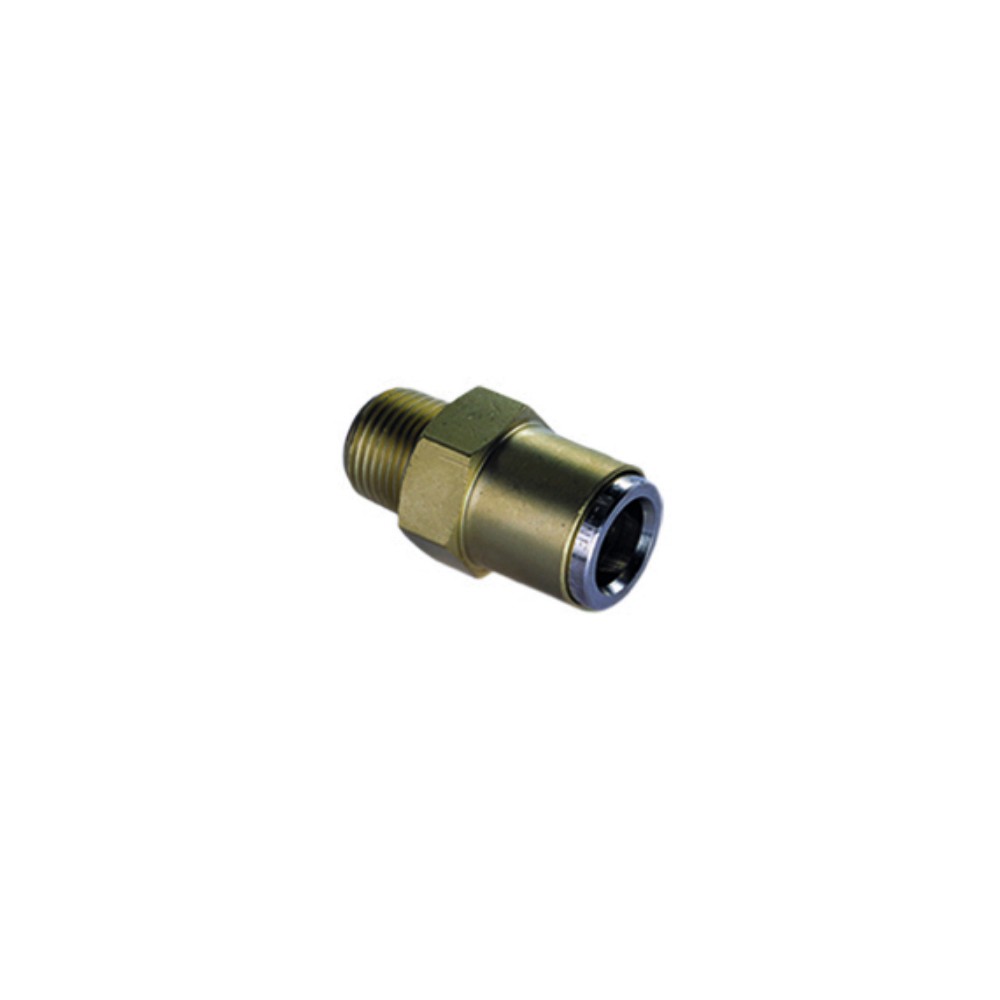

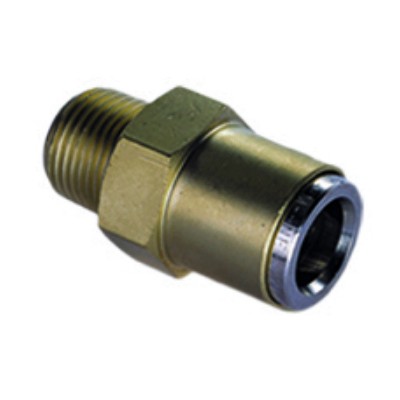

Unión Simple IMI NORGREN

Forma: Recto
Normativa: DIN 74324
Presión de Trabajo: 0 - 10 bar
Temperatura: - 40°C/+100°C - Picos de +125ºC, -40°C/+100°C - Picos de +125ºC

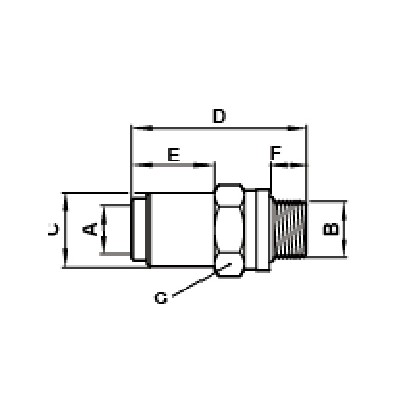

Ref. COVASA	IMI NORGREN	Hexágono	Rosca	Tubo
051101	97466631	14 mm	10/100	6
051102	97466633	17 mm	12/150	6
051103	97466634	19 mm	14/150	6
051104	97466635	22 mm	16/150	6
051105	97466638	27 mm	22/150	6
051106	97466641	17 mm	10/100	8
051107	97466643	17 mm	12/150	8
051108	97466644	19 mm	14/150	8
051109	97466645	22 mm	16/150	8
051110	97466648	27 mm	22/150	8
051111	97466651	17 mm	10/100	10
051112	97466653	17 mm	12/150	10
051113	97466654	19 mm	14/150	10
051114	97466655	22 mm	16/150	10
051115	97466658	27 mm	22/150	10
051117	97466663	22 mm	12/150	12
051118	97466664	—	14/150	12
051119	97466665	22 mm	16/150	12
051120	97466668	27 mm	22/150	12
051130	97466670	27 mm	22/150	15
051134	97466679	27 mm	16/150	16
051135	97466675	27 mm	22/150	16
052102	94466633	17 mm	12/150	1/4"
052104	94466635	22 mm	16/150	1/4"
052107	94466653	17 mm	12/150	3/8"
052109	94466655	22 mm	16/150	3/8"
052110	94466658	27 mm	22/150	3/8"
052114	94466665	22 mm	16/150	1/2"
052116	94466668	27 mm	22/150	1/2"
052130	94466675	27 mm	22/150	5/8"
