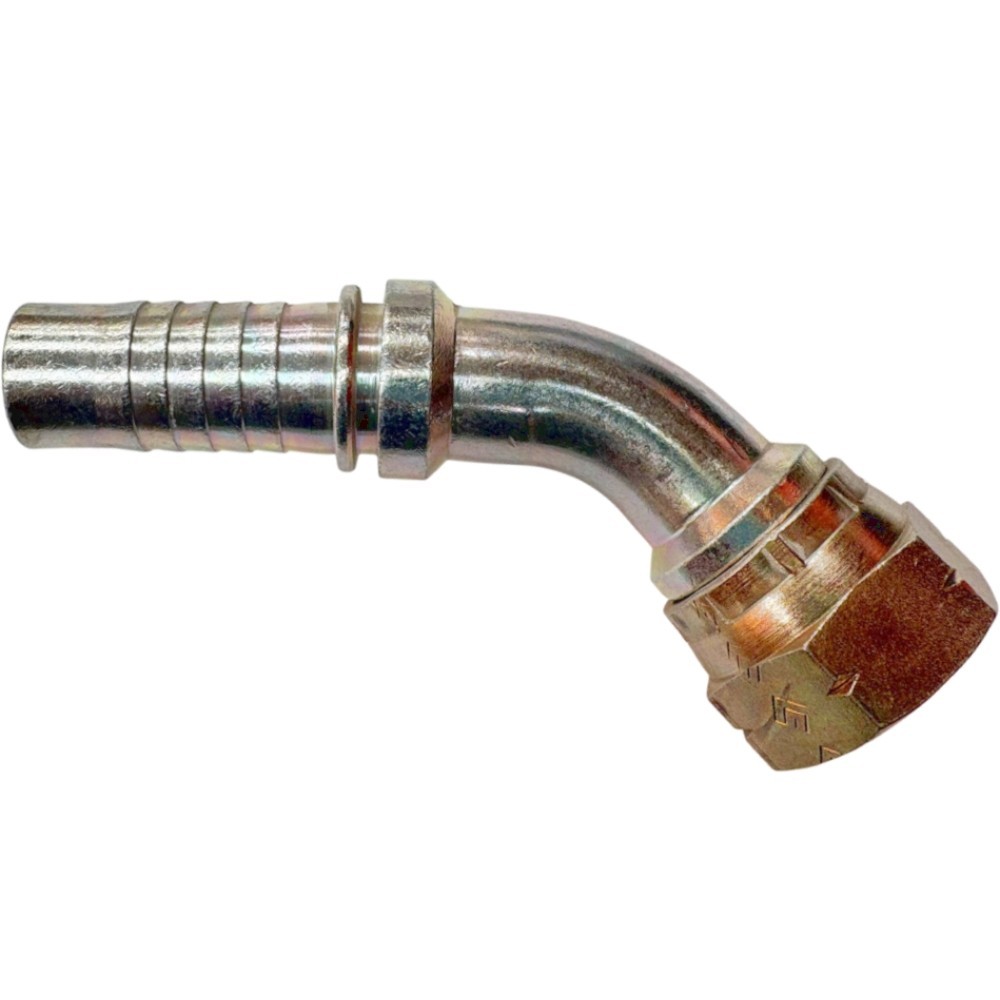

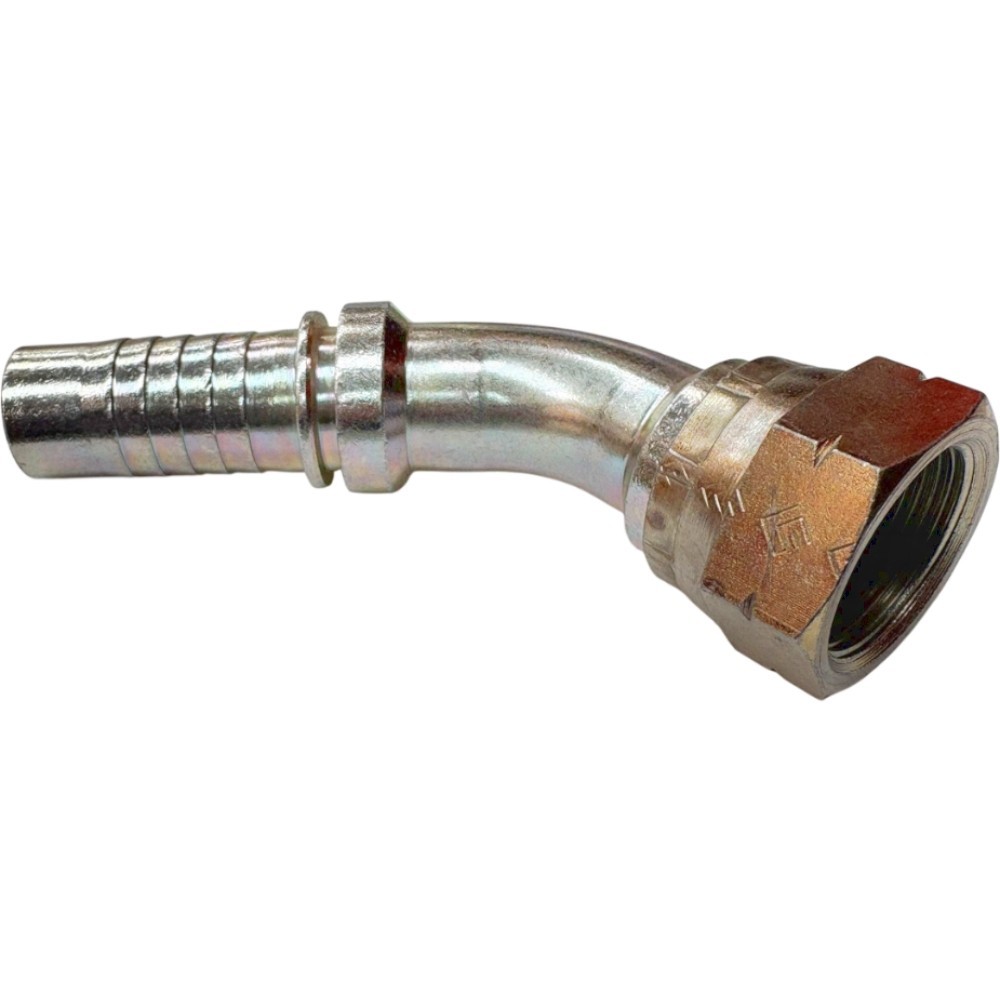

Codo 45º Prensar 60º VITILLO

Hembra Giratoria a 45º Métrica Cono 60º. *** Refs. 06360-16-38, 06360-20-45, 06360-24-52 con Tuerca desmontable.

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo (bar)	Hexágono	Para Manguera	Rosca
06360-03-10	F45M0310	5	40 mm	17 mm	350 bar	15 mm	3/16	M 10
06360-03-12	F45M0312	5	40 mm	17 mm	350 bar	17 mm	3/16	M 12
06360-04-10	F45M0410	6	40 mm	17 mm	350 bar	15 mm	1/4	M 10
06360-04-12	F45M0412	6	40 mm	17 mm	350 bar	17 mm	1/4	M 12
06360-04-14	F45M0414	6	40 mm	17 mm	350 bar	19 mm	1/4	M 14
06360-04-16	F45M0416	6	43 mm	20 mm	350 bar	22 mm	1/4	M 16
06360-04-18	F45M0418	6	43 mm	20 mm	350 bar	22 mm	1/4	M 18
06360-05-14	F45M0514	8	40 mm	17 mm	350 bar	19 mm	5/16	M 14
06360-05-16	F45M0516	8	43 mm	20 mm	350 bar	22 mm	5/16	M 16
06360-05-18	F45M0518	8	43 mm	20 mm	350 bar	22 mm	5/16	M 18
06360-06-14	F45M0614	10	55 mm	20 mm	350 bar	19 mm	3/8	M 14
06360-06-16	F45M0616	10	55 mm	20 mm	350 bar	22 mm	3/8	M 16
06360-06-18	F45M0618	10	55 mm	20 mm	350 bar	22 mm	3/8	M 18
06360-06-20	F45M0620	10	58 mm	23 mm	315 bar	27 mm	3/8	M 20
06360-06-22	F45M0622	10	58 mm	23 mm	315 bar	27 mm	3/8	M 22
06360-08-18	F45M0818	13	65 mm	23 mm	315 bar	24 mm	1/2	M 18
06360-08-20	F45M0820	13	65 mm	23 mm	315 bar	27 mm	1/2	M 20
06360-08-22	F45M0822	13	65 mm	23 mm	315 bar	27 mm	1/2	M 22
06360-08-24	F45M0824	13	66 mm	21 mm	250 bar	30 mm	1/2	M 24
06360-08-26	F45M0826	13	66 mm	21 mm	250 bar	32 mm	1/2	M 26
06360-10-26	F45M1026	16	64 mm	26 mm	250 bar	32 mm	5/8	M 26
06360-10-27	F45M1027	16	64 mm	26 mm	250 bar	32 mm	5/8	M 27
06360-12-26	F45M1226	20	63 mm	29 mm	250 bar	32 mm	3/4	M 26
06360-12-27	F45M1227	20	63 mm	29 mm	250 bar	32 mm	3/4	M 27
06360-12-30	F45M1230	20	65 mm	31 mm	—	36 mm	3/4	M 30
06360-16-38	F45M1638	25	90 mm	41 mm	—	46 mm	1	M 38
06360-20-45	F45M2045	32	103 mm	45 mm	—	50 mm	1 1/4	M 45
06360-24-52	F45M2452	38	119 mm	53 mm	—	55 mm	1 1/2	M 52
