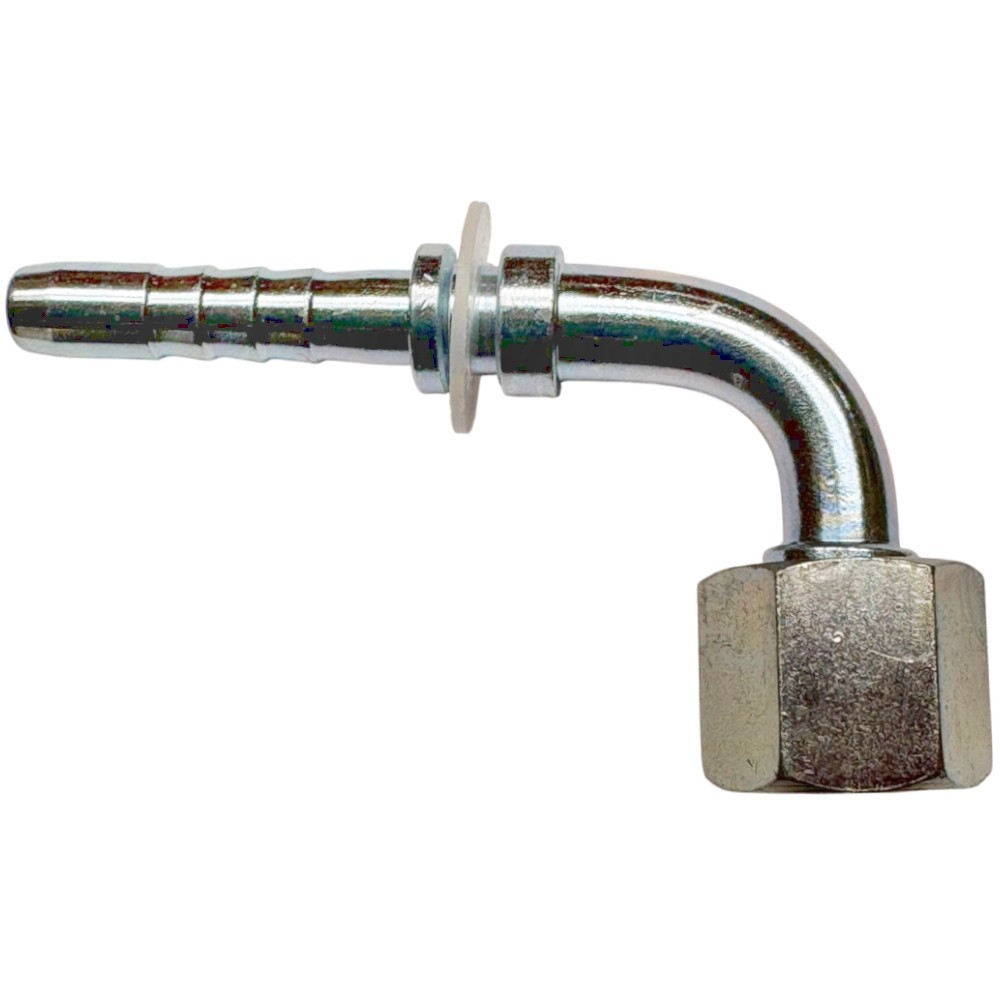

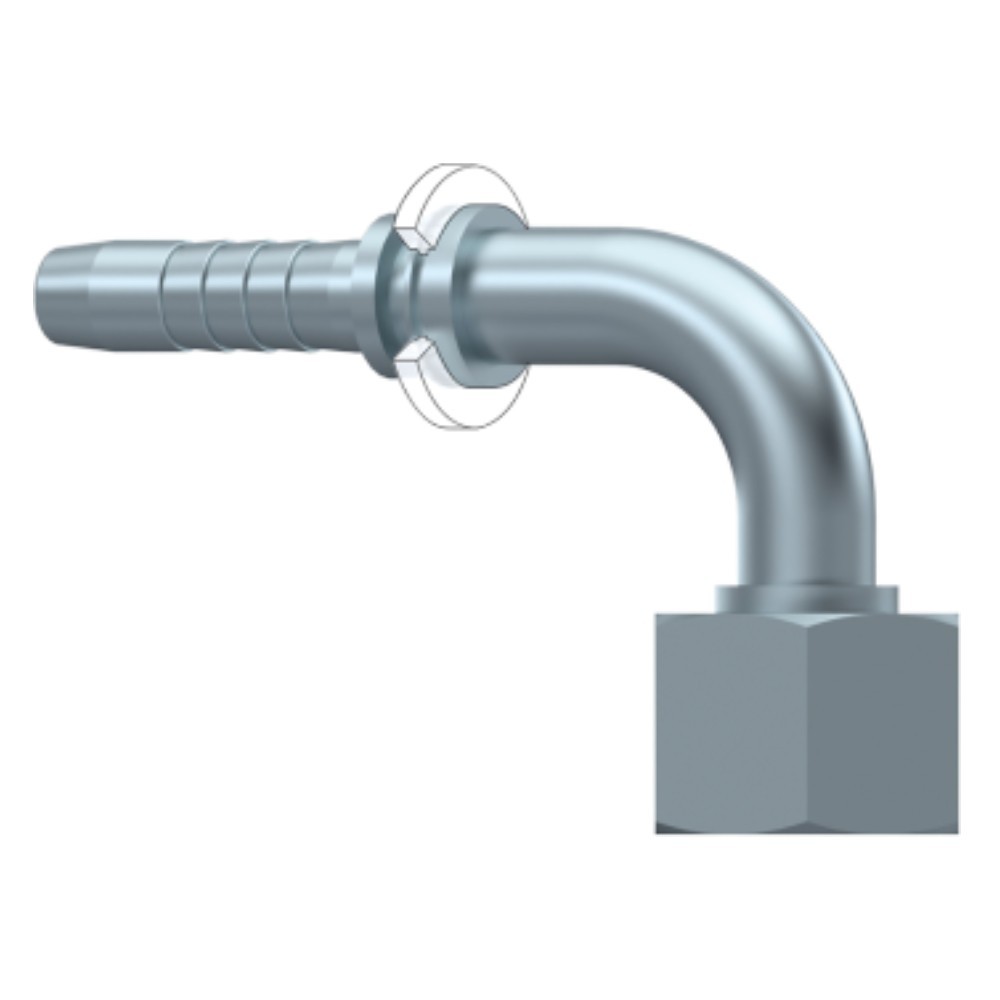

Codo 90º Prensar Asiento 60º VITILLO

Hembra Giratoria a 90º Métrica Cono 60º

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo (bar)	Hexágono	Para Manguera	Rosca	Nota
06330-03-10	F90M0310	5	23	29	350	15	3/16	M 10	—
06330-03-12	F90M0312	5	23	29	350	17	3/16	M 12	—
06330-04-10	F90M0410	6	23	29	350	15	1/4	M 10	—
06330-04-12	F90M0412	6	23	29	350	17	1/4	M 12	—
06330-04-14	F90M0414	6	23	29	350	19	1/4	M 14	—
06330-04-16	F90M0416	6	23	32	350	22	1/4	M 16	—
06330-04-18	F90M0418	6	23	32	350	22	1/4	M 18	—
06330-05-14	F90M0514	8	31,5	33,5	350	19	5/16	M 14	—
06330-05-16	F90M0516	8	31,5	35,5	350	22	5/16	M 16	—
06330-05-18	F90M0518	8	31,5	35,5	350	22	5/16	M 18	—
06330-06-14	F90M0614	10	33	37	350	19	3/8	M 14	—
06330-06-16	F90M0616	10	33	38	350	22	3/8	M 16	—
06330-06-18	F90M0618	10	33	38	350	22	3/8	M 18	—
06330-06-20	F90M0620	10	33	42	315	27	3/8	M 20	—
06330-06-22	—	10	33	42	315	27	3/8	M 22	—
06330-08-18	F90M0818	13	39	43	315	24	1/2	M 18	—
06330-08-20	F90M0820	—	39	45	315	27	1/2	M 20	—
06330-08-22	F90M0822	13	39	45	315	27	1/2	M 22	—
06330-08-24	F90M0824	13	39	—	250	30	1/2	M 24	—
06330-08-26	F90M0826	13	39	51	250	32	1/2	M 26	—
06330-10-26	F90M1026	16	49	56	250	32	5/8	M 26	—
06330-10-27	F90M1027	16	49	56	350	32	5/8	M 27	—
06330-12-26	F90M1226	20	53,5	59	250	32	3/4	M 26	—
06330-12-27	F90M1227	20	53,5	59	250	32	3/4	M 27	—
06330-12-30	F90M1230	20	53,5	63	—	36	3/4	M 30	*
06330-16-38	F90M1638	25	73	72	—	46	1	M 38	*
06330-20-45	F90M2045	32	93	89	—	50	1 1/4	M 45	*
06330-24-52	F90M2452	38	99	110	—	55	1 1/2	M 52	*
