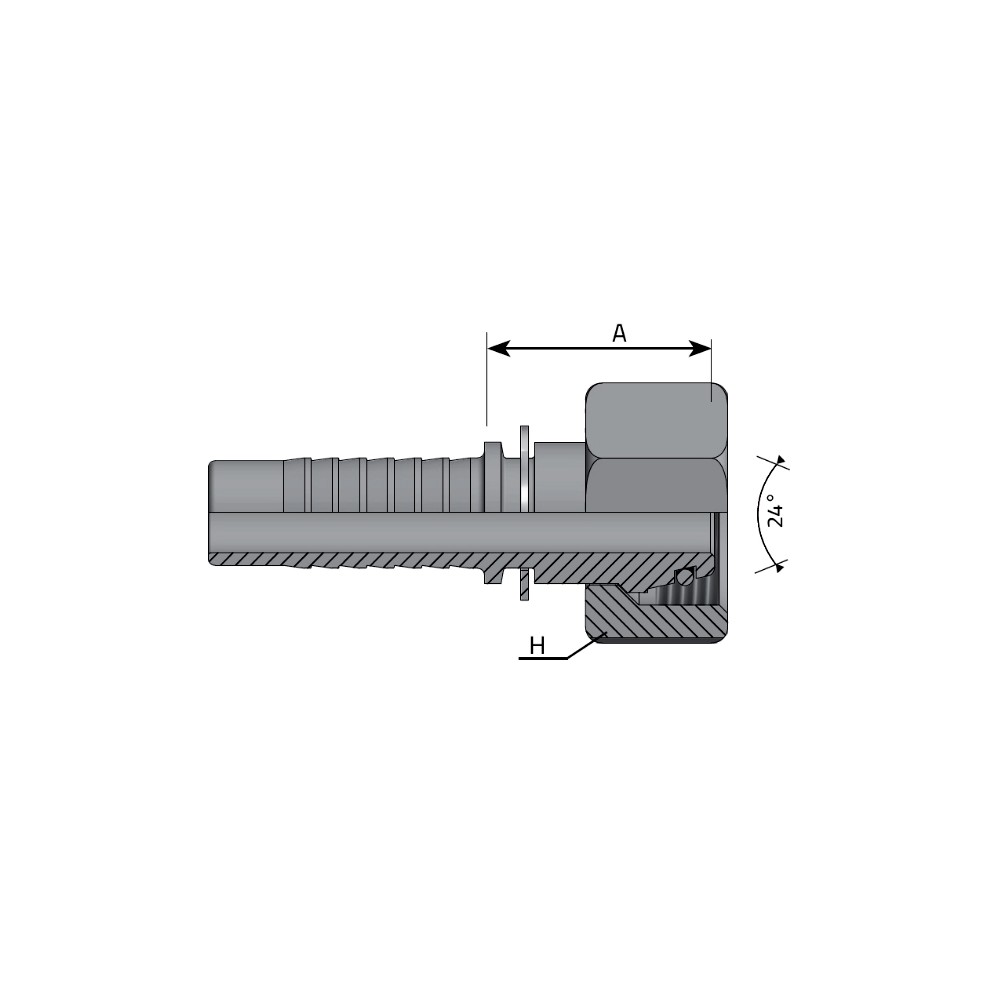

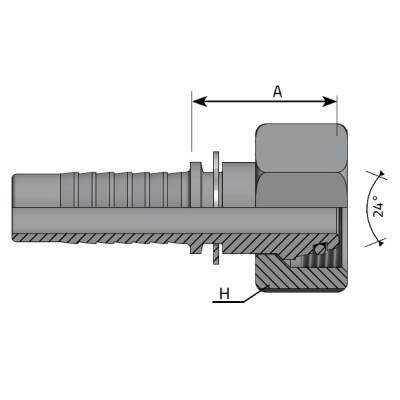

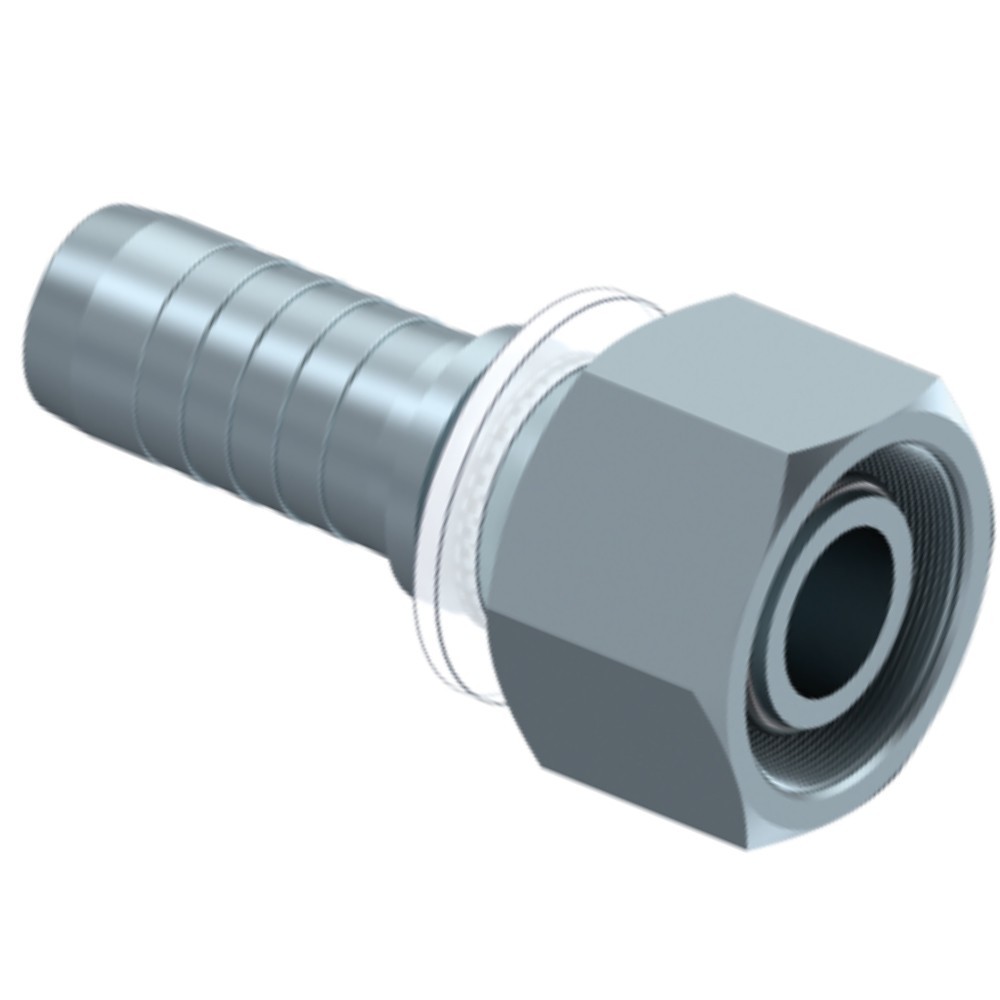

Hembra Recta Prensar 24º Serie S (mm) VITILLO

Hembra Métrica Cono 24º Con O-Ring - Serie S

Ref.	Ref. Vitillo	D.N.	A	P. Trabajo (bar)	Diametro	Hexágono	Para Manguera	Rosca
06323-03-14	FE0314S6	5	25,5	420	6 mm	19	3/16	M 14
06323-03-16	FE0316S8	5	25,5	420	8 mm	19	3/16	M 16
06323-04-14	FE0414S6	6	25,5	450	6 mm	17	1/4	M 14
06323-04-16	FE0416S8	6	26	450	8 mm	19	1/4	M 16
06323-04-18	FE0418S10	6	26	450	10 mm	22	1/4	M 18
06323-04-20	FE0420S12	6	26	450	12 mm	24	1/4	M 20
06323-05-18	FE0518S10	8	26,5	350	10 mm	22	5/16	M 18
06323-05-20	FE0520S12	8	26	350	12 mm	24	5/16	M 20
06323-06-18	FE0618S10	10	26,5	450	10 mm	22	3/8	M 18
06323-06-20	FE0620S12	10	26,5	450	12 mm	24	3/8	M 20
06323-06-22	FE0622S14	10	27	450	14 mm	27	3/8	M 22
06323-08-22	FE0822S14	13	27,5	420	14 mm	27	1/2	M 22
06323-08-24	FE0824S16	13	32	420	16 mm	30	1/2	M 24
06323-08-30	—	—	—	—	—	—	1/2	30/200
06323-10-24	FE1024S16	16	35	420	16 mm	30	5/8	M 24
06323-10-30	FE1030S20	16	37	350	20 mm	36	5/8	M 30
06323-12-30	FE1230S20	10	37,5	350	20 mm	36	3/4	M 30
06323-12-36	FE1236S25	20	38,5	350	25 mm	46	3/4	M 36
06323-12-42	—	—	—	—	—	—	3/4	42/200
06323-16-36	FE1636S25	25	39,5	280	25 mm	46	1	M 36
06323-16-42	FE1642S30	25	40,5	280	30 mm	50 mm	1	M 42
06323-20-42	FE2042S30	32	41,5	210	30 mm	50 mm	1 1/4	M 42
06323-20-52	FE2052S38	32	47	210	38 mm	60 mm	1 1/4	M 52
06323-24-52	FE2452S38	38	47	185	38 mm	60 mm	1 1/2	M 52
