Macho Prensar 24º Serie S (mm) VITILLO

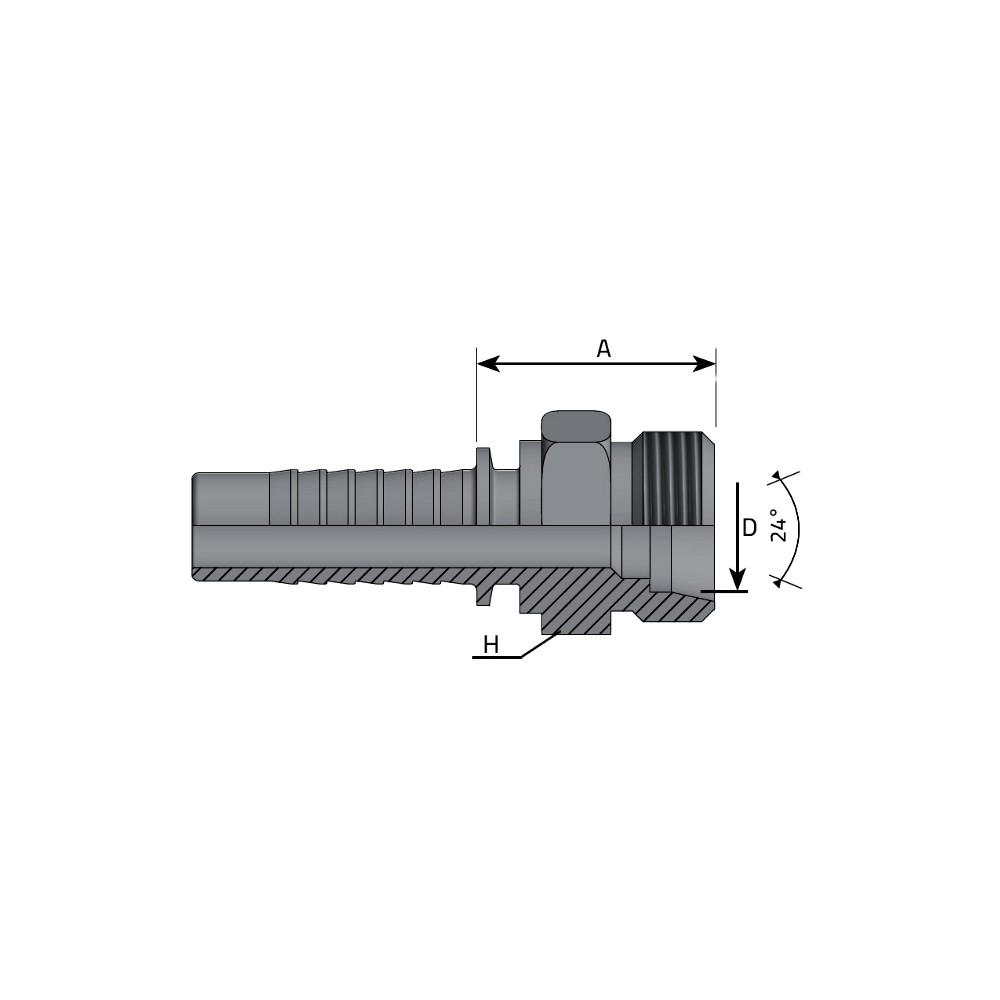

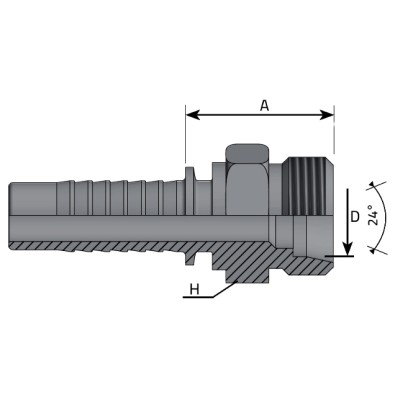

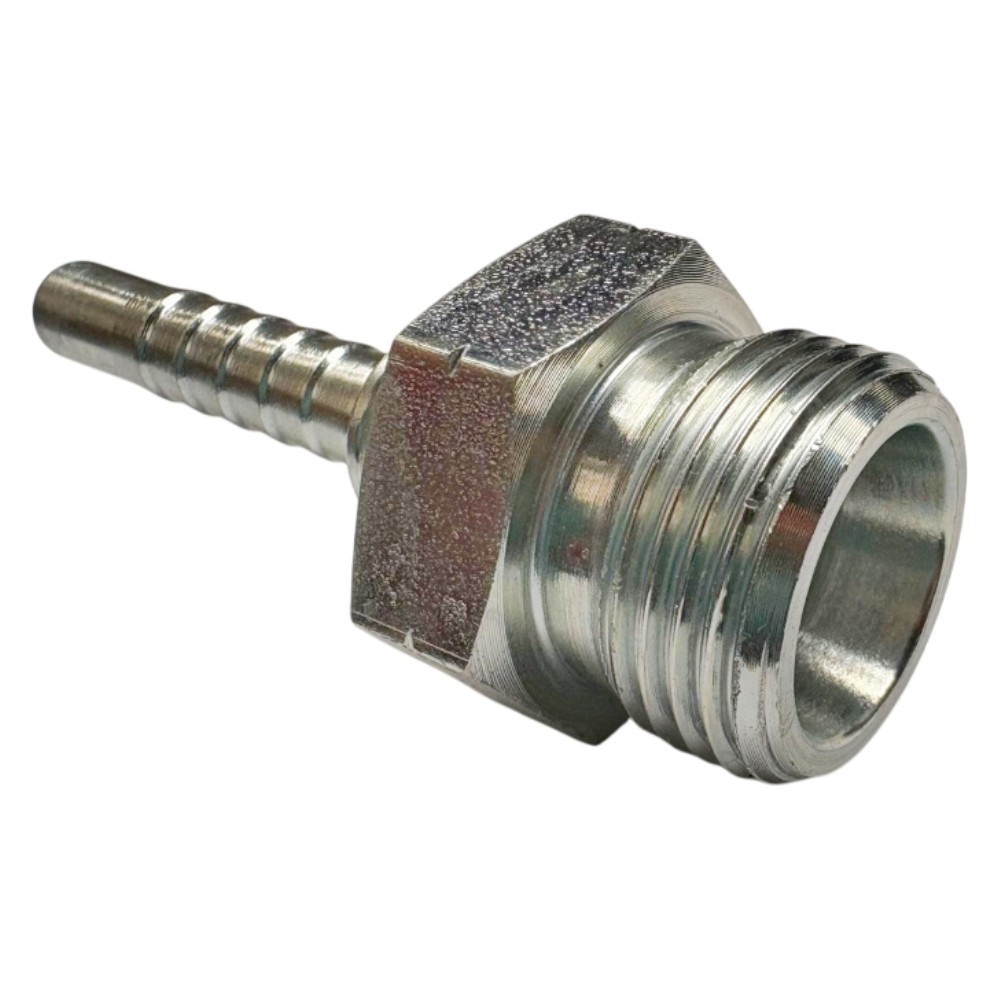

Macho Métrico Cono 24º - Serie S

Ref.	Ref. Vitillo	D.N.	A	P. Trabajo (bar)	Diametro	Hexágono	Para Manguera	Rosca
06313-03-14	ME0314S6	5	24	420	6 mm	15	3/16	M 14
06313-03-16	ME0316S8	5	25	420	8 mm	17	3/16	M 16
06313-04-14	ME0414S6	6	24	450	6 mm	15	1/4	M 14
06313-04-16	ME0416S8	6	25	450	8 mm	17	1/4	M 16
06313-04-18	ME0418S10	6	25	450	10 mm	19	1/4	M 18
06313-04-20	ME0420S12	6	27	450	12 mm	22	1/4	M 20
06313-05-18	ME0518S10	8	25	350	10 mm	19	5/16	M 18
06313-05-20	ME0520S12	8	26,5	350	12 mm	22	5/16	M 20
06313-06-18	ME0618S10	10	26	450	10 mm	19	3/8	M 18
06313-06-20	ME0620S12	10	27	450	12 mm	22	3/8	M 20
06313-06-22	ME0622S14	10	29	450	14 mm	24	3/8	M 22
06313-08-22	ME0822S14	13	30	420	14 mm	24	1/2	M 22
06313-08-24	ME0824S16	13	31	420	16 mm	27	1/2	M 24
06313-10-30	ME1030S20	16	33	350	20 mm	32	5/8	M 30
06313-12-30	ME1230S20	20	34	350	20 mm	32	3/4	M 30
06313-12-36	ME1236S25	20	36	350	25 mm	38	3/4	M 36
06313-12-42	ME1242S30	20	36,5	350	30 mm	38	3/4	M 42
06313-16-36	ME1636S25	25	38,5	280	25 mm	38	1	M 36
06313-16-42	ME1642S30	25	42	280	30 mm	46	1	M 42
06313-20-42	ME2042S30	32	42	210	30 mm	46	1 1/4	M 42
06313-20-52	ME2052S38	32	46	210	38 mm	55 mm	1 1/4	M 52
06313-24-52	ME2452S38	38	46	185	38 mm	55 mm	1 1/2	M 52
