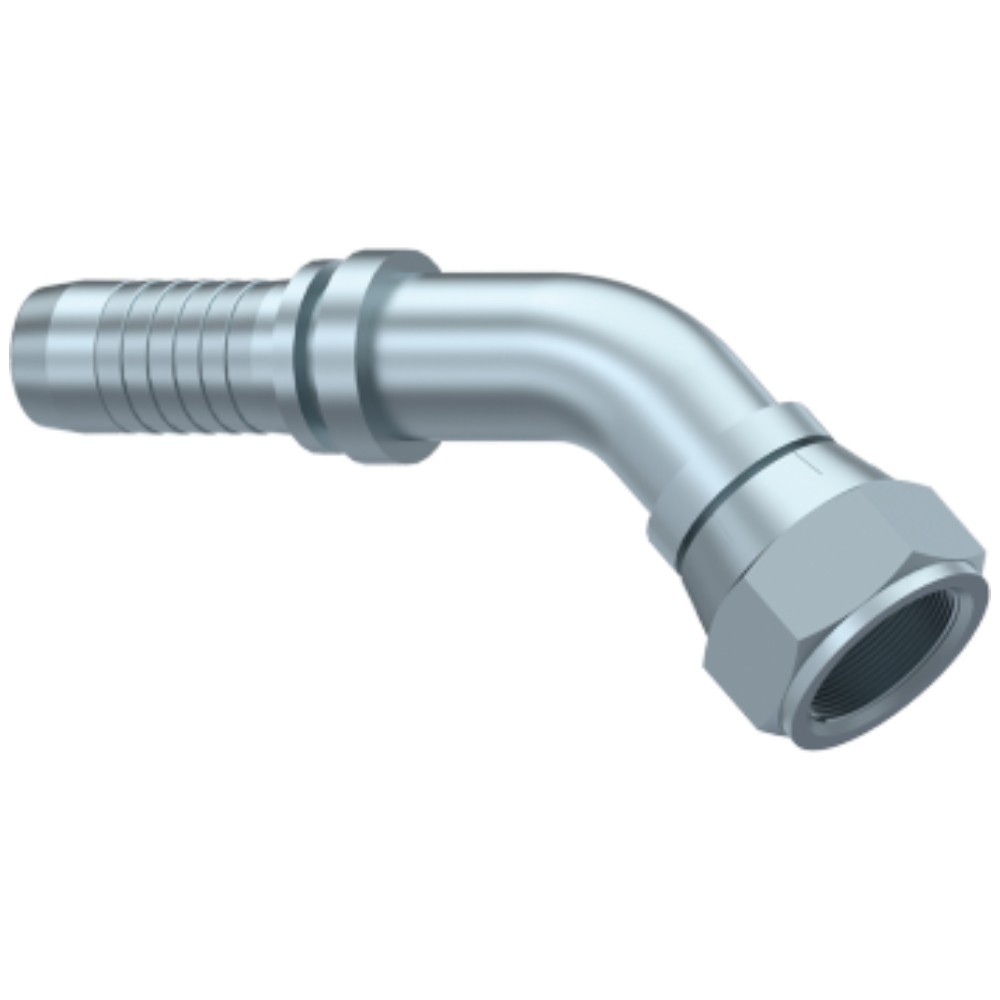

Codo 45º Prensar JIC VITILLO

Hembra Giratoria a 45º JIC Cono 37º

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo (bar)	Hexágono	Para Manguera	Rosca
06260-03-04	F45J0304	5	38	15	350	15	3/16	7/16
06260-03-05	F45J0305	5	40	17	350	17	3/16	1/2
06260-04-04	F45J0404	6	38	15	350	15	1/4	7/16
06260-04-05	F45J0405	6	40	17	350	17	1/4	1/2
06260-04-06	F45J0406	6	39,5	16,5	250	19	1/4	9/16
06260-05-05	F45J0505	8	40	17	350	17	5/16	1/2
06260-05-06	F45J0506	8	49,5	18,5	250	19	5/16	9/16
06260-05-07	F45J0507	8	50 mm	19	—	22	5/16	5/8
06260-05-08	F45J0508	8	50,5 mm	19,5	250	24	5/16	3/4
06260-06-06	F45J0606	10	53 mm	18	250	19	3/8	9/16
06260-06-07	F45J0607	10	54 mm	19	—	22	3/8	5/8
06260-06-08	F45J0608	10	54 mm	19	250	24	3/8	3/4
06260-06-10	F45J0610	10	56 mm	21	200	27	3/8	7/8
06260-08-08	F45J0808	13	62 mm	20	200	24	1/2	3/4
06260-08-10	F45J0810	13	63 mm	21	200	27	1/2	7/8
06260-08-12	F45J0812	13	64 mm	22	200	32	1/2	1 1/16
06260-10-10	F45J1010	16	60 mm	22	200	27	5/8	7/8
06260-10-12	F45J1012	16	63 mm	25	200	32	5/8	1 1/16
06260-12-10	F45J1210	20	62 mm	29	200	27	3/4	7/8
06260-12-12	F45J1212	20	62 mm	29	200	32	3/4	1 1/16
06260-12-14	—	—	—	—	—	—	3/4	—
06260-12-16	F45J1216	20	63 mm	29	160	41	3/4	1 5/16
06260-16-12	F45J1612	25	100	39,5	200	32	1	1 1/16
06260-16-16	F45J1616	25	88,5 mm	39,5	160	41	1	1 5/16
06260-16-20	F45J1620	25	89,5 mm	38,5	125	50 mm	1	1 5/8
06260-20-20	F45J2020	32	101	44	125	50 mm	1 1/4	1 5/8
06260-20-24	F45J2024	32	103	45	100	55 mm	1 1/4	1 7/8
06260-24-24	F45J2424	38	118	45	100	55 mm	1 1/2	1 7/8
06260-24-32	F45J2432SP	38	121	45,5	80	70 mm	1 1/2	2 1/2
06260-32-32	F45J3232SP	50	156	65,5 mm	80	70 mm	2	2 1/2
