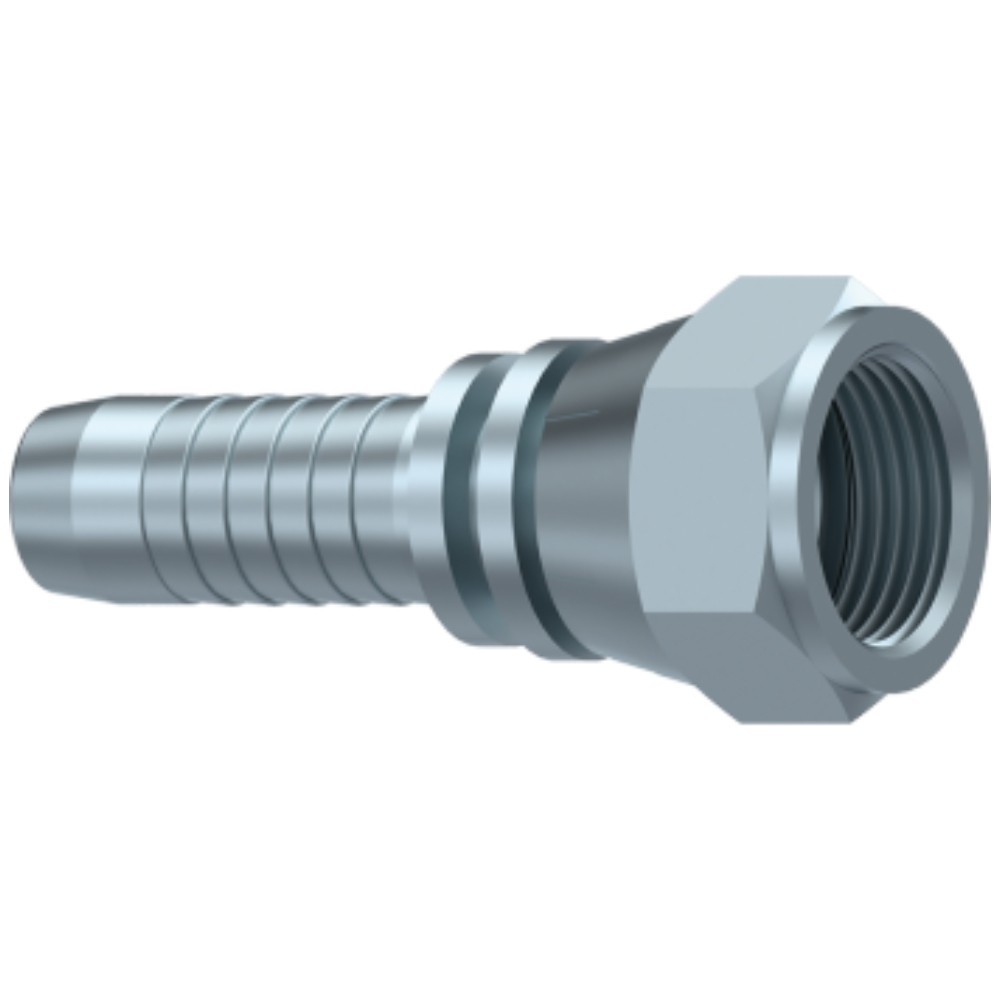

Hembra Recta Prensar JIC VITILLO

Hembra Giratoria JIC Cono 37º

Ref.	Ref. Vitillo	D.N.	A	P. Trabajo (bar)	Hexágono	Para Manguera	Rosca
06220-03-04	FDJ0304	5	15	350	15	3/16	7/16
06220-04-04	FDJ0404	6	15	350	15	1/4	7/16
06220-04-05	FDJ0405	6	16	350	17	1/4	1/2
06220-04-06	FDJ0406	6	16	250	19	1/4	9/16
06220-05-05	FDJ0505	8	16	350	17	5/16	1/2
06220-05-06	FDJ0506	8	16	250	19	5/16	9/16
06220-05-07	FDJ0507	8	17	—	22	5/16	5/8
06220-05-08	FDJ0508	8	17	250	24	5/16	3/4
06220-06-06	FDJ0606	10	16,5	250	19	3/8	9/16
06220-06-07	FDJ0607	10	17	—	22	3/8	5/8
06220-06-08	FDJ0608	10	17	250	24	3/8	3/4
06220-06-10	FDJ0610	10	18,5	200	27	3/8	7/8
06220-08-08	FDJ0808	13	18	250	24	1/2	3/4
06220-08-10	FDJ0810	13	19	200	27	1/2	7/8
06220-08-12	FDJ0812	13	22	200	32	1/2	1 1/16
06220-10-10	FDJ1010	16	19,5	200	27	5/8	7/8
06220-10-12	FDJ1012	16	22,5	200	32	5/8	1 1/16
06220-12-10	FDJ1210	20	20	200	27	3/4	7/8
06220-12-12	FDJ1212	20	23	200	32	3/4	1 1/16
06220-12-14	FDJ1214	20	23	160	36	3/4	1 3/16
06220-12-16	FDJ1216	20	23	160	41	3/4	1 5/16
06220-16-12	FDJ1612	25	24	200	32	1	1 1/16
06220-16-16	FDJ1616	25	24,5	160	41	1	1 5/16
06220-16-20	FDJ1620	25	28,5	125	50 mm	1	1 5/8
06220-20-20	FDJ2020	32	29	125	50 mm	1 1/4	1 5/8
06220-20-24	FDJ2024	32	31	100	55 mm	1 1/4	1 7/8
06220-24-24	FDJ2424	38	31	100	55 mm	1 1/2	1 7/8
06220-32-32	FDJ3232SP	50	33	80	70 mm	2	2 1/2
