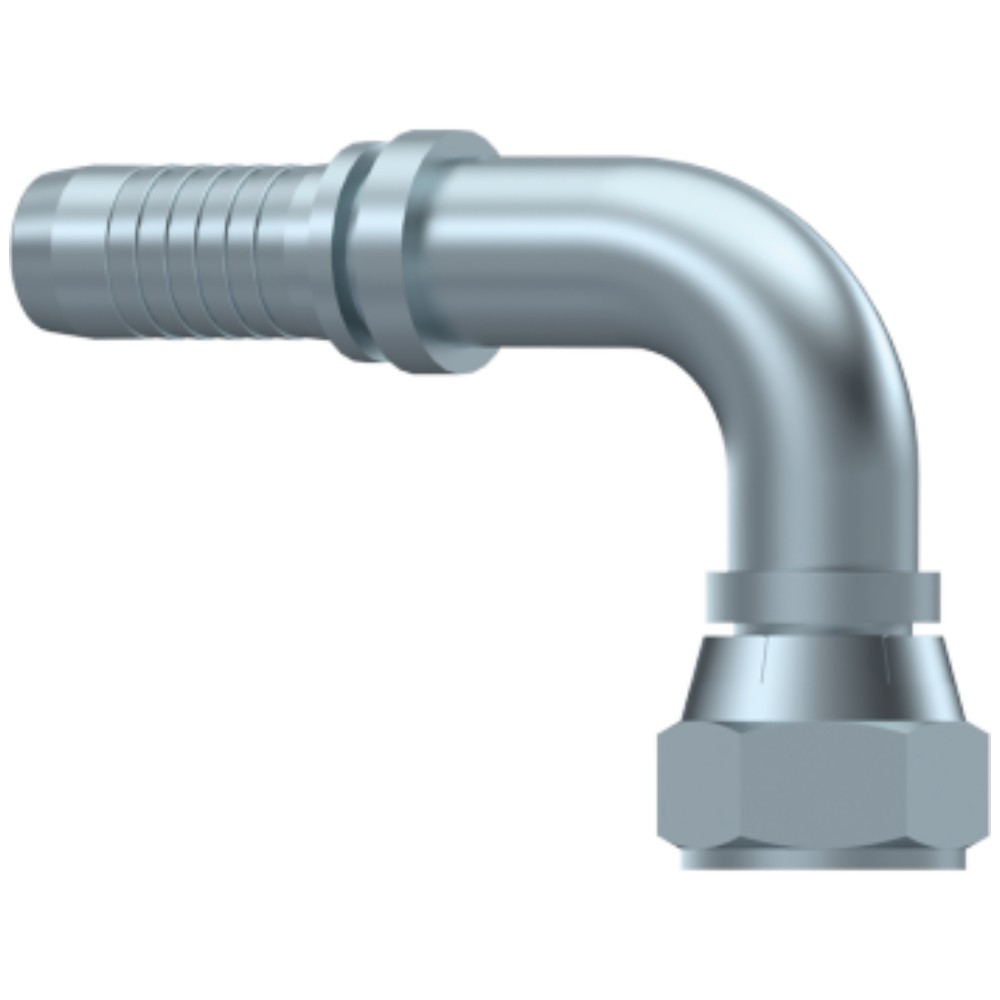

Codo 90º Prensar JIC VITILLO

Hembra Giratoria a 90º JIC Cono 37º

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo (bar)	Hexágono	Para Manguera	Rosca
06230-03-04	F90J0304	5	23	26	350	15	3/16	7/16
06230-03-05	F90J0305	5	23	27	350	17	3/16	1/2
06230-04-04	F90J0404	6	23	26	350	15	1/4	7/16
06230-04-05	F90J0405	6	23	27	350	17	1/4	1/2
06230-04-06	F90J0406	6	23	27	250	19	1/4	9/16
06230-05-05	F90J0505	8	31,5	32	350	17	5/16	1/2
06230-05-06	F90J0506	8	31,5	32	250	19	5/16	9/16
06230-05-07	F90J0507	8	31,5	32,5	—	22	5/16	5/8
06230-05-08	F90J0508	8	31,5	32,5	250	24	5/16	3/4
06230-06-06	F90J0606	10	33	35	250	19	3/8	9/16
06230-06-07	F90J0607	10	33	35,5	—	22	3/8	5/8
06230-06-08	F90J0608	10	33	36,5	250	24	3/8	3/4
06230-06-10	F90J0610	10	33	39,5	200	27	3/8	7/8
06230-08-08	F90J0808	13	39	41	250	24	1/2	3/4
06230-08-10	F90J0810	13	39	42,5	200	27	1/2	7/8
06230-08-12	F90J0812	13	39	50 mm	200	32	1/2	1 1/16
06230-10-10	F90J1010	16	49	50 mm	200	27	5/8	7/8
06230-10-12	F90J1012	16	49	55 mm	200	32	5/8	1 1/16
06230-12-10	F90J1210	20	53,5 mm	58 mm	200	27	3/4	7/8
06230-12-12	F90J1212	20	53,5 mm	58 mm	200	32	3/4	1 1/16
06230-12-14	F90J1214	20	53,5 mm	61 mm	160	36	3/4	1 3/16
06230-12-16	F90J1216	20	53,5 mm	62,5 mm	160	41	3/4	1 5/16
06230-16-12	F90J1612	25	69 mm	80 mm	200	32	1	1 1/16
06230-16-16	F90J1616	25	73 mm	69,5 mm	160	41	1	1 5/16
06230-16-20	F90J1620	25	73 mm	78,5 mm	125	50 mm	1	1 5/8
06230-20-20	F90J2020	32	89 mm	91,5 mm	125	50 mm	1 1/4	1 5/8
06230-20-24	F90J2024	32	89 mm	99 mm	100	55 mm	1 1/4	1 7/8
06230-24-24	F90J2424	38	101	112,5	100	55 mm	1 1/2	1 7/8
06230-32-32	F90J3232SP	50	135	136	80	70 mm	2	2 1/2
