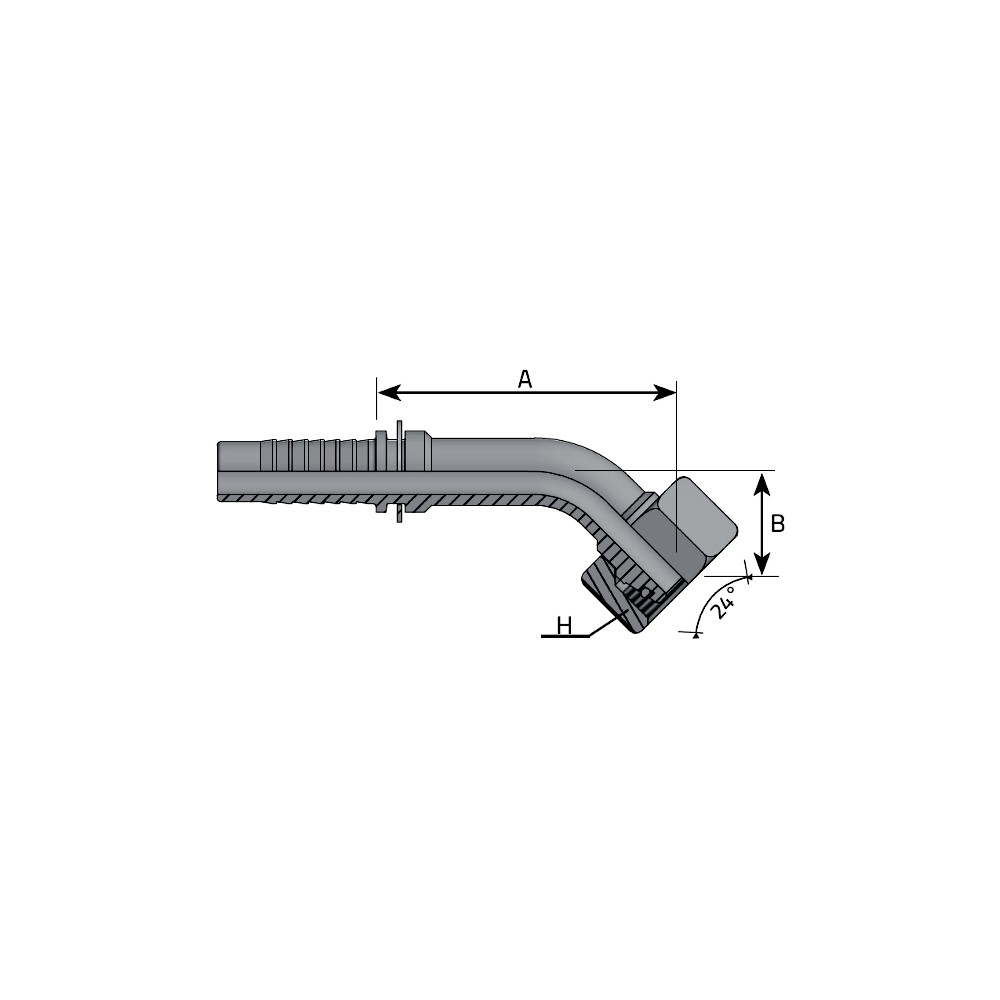

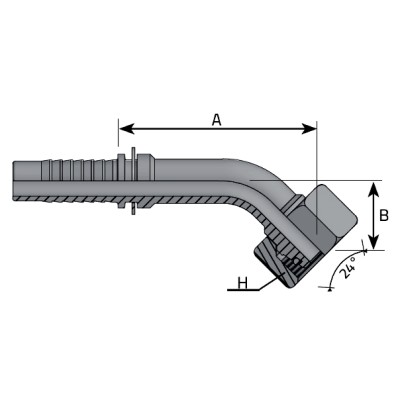

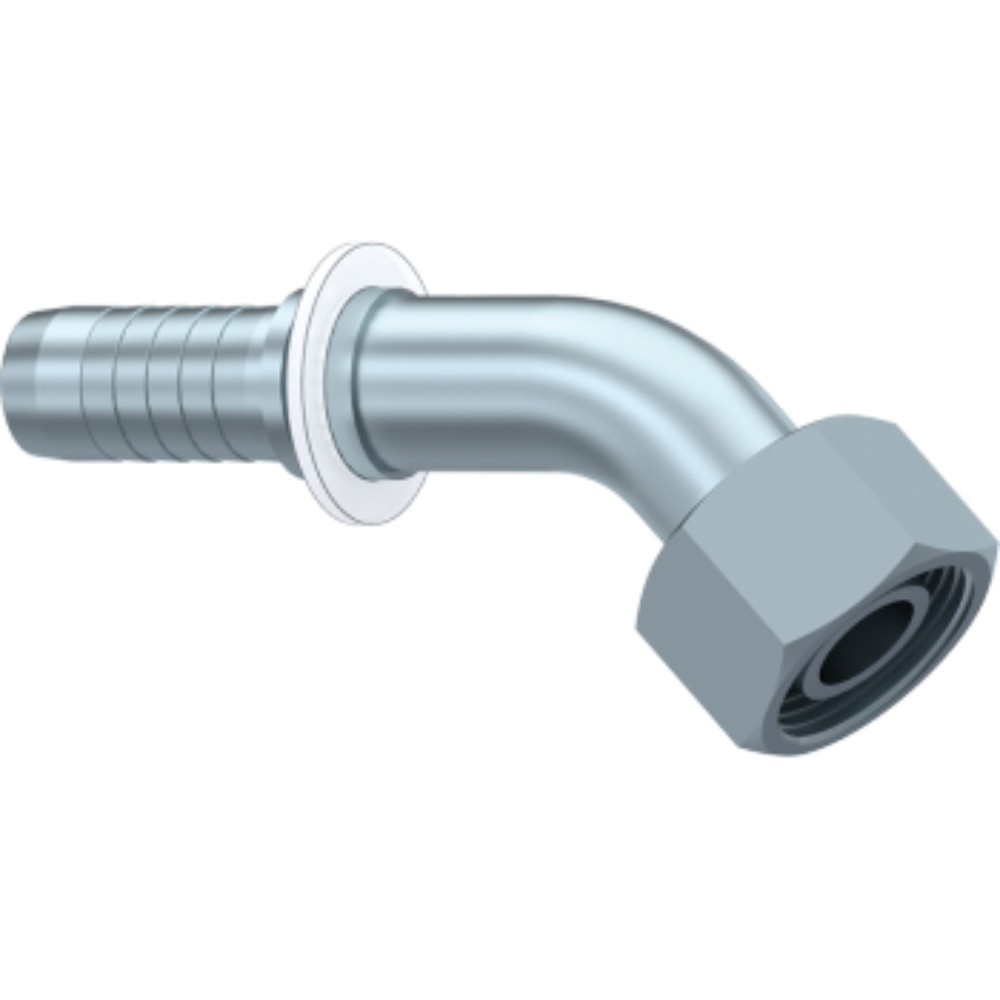

Codo 45º Prensar 24º Serie L (mm) VITILLO

Hembra Métrica a 45º con O-Ring Cono 24º - Serie L. ***Refs. 06362-04-12,06362-06-16 con Tuerca Prensada.

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo (bar)	Diametro	Hexágono	Para Manguera	Rosca
06362-03-12	F45E0312L6	5	37	15	250	6 mm	14	3/16	M 12
06362-03-14	F45E0314L8	5	37	15	250	8 mm	17	3/16	M 14
06362-04-12	F45E0412L6	6	40	17	250	6 mm	17	1/4	M 12
06362-04-14	F45E0414L8	6	50 mm	17	250	8 mm	17	1/4	M 14
06362-04-16	F45E0416L10	6	48,5	17	250	10 mm	19	1/4	M 16
06362-04-18	F45E0418L12	6	48,5	17	250	12 mm	22	1/4	M 18
06362-05-14	F45E0514L8	8	51 mm	23	250	8 mm	19	5/16	M 14
06362-05-16	F45E0516L10	8	52 mm	17	250	10 mm	19	5/16	M 16
06362-05-18	F45E0518L12	8	50 mm	20	250	12 mm	22	5/16	M 18
06362-06-16	F45E0616L10	10	55 mm	20	250	10 mm	19	3/8	M 16
06362-06-18	F45E0618L12	10	57 mm	17	250	12 mm	22	3/8	M 18
06362-06-22	F45E0622L15	10	59 mm	19	250	15 mm	27	3/8	M 22
06362-08-18	F45E0818L12	13	65 mm	27	250	12 mm	22	1/2	M 18
06362-08-22	F45E0822L15	13	64 mm	22	250	15 mm	27	1/2	M 22
06362-08-26	F45E0826L18	13	65 mm	26	160	18 mm	32	1/2	M 26
06362-10-26	F45E1026L18	16	61,5 mm	28	160	18 mm	32	5/8	M 26
06362-10-30	F45E1030L22	16	63,5 mm	—	160	22 mm	36	5/8	M 30
06362-12-26	F45E1226L18	20	63 mm	33,5	160	18 mm	32	3/4	M 26
06362-12-30	F45E1230L22	20	63 mm	27	160	22 mm	36	3/4	M 30
06362-16-36	F45E1636L28	25	85,5 mm	38,5	100	28 mm	41	1	M 36
06362-20-45	F45E2045L35	32	104,5	35	100	35 mm	50 mm	1 1/4	M 45
06362-24-52	F45E2452L42	38	119	45	100	42 mm	60 mm	1 1/2	M 52
