Hembra Recta Prensar 24º Serie L (mm) VITILLO

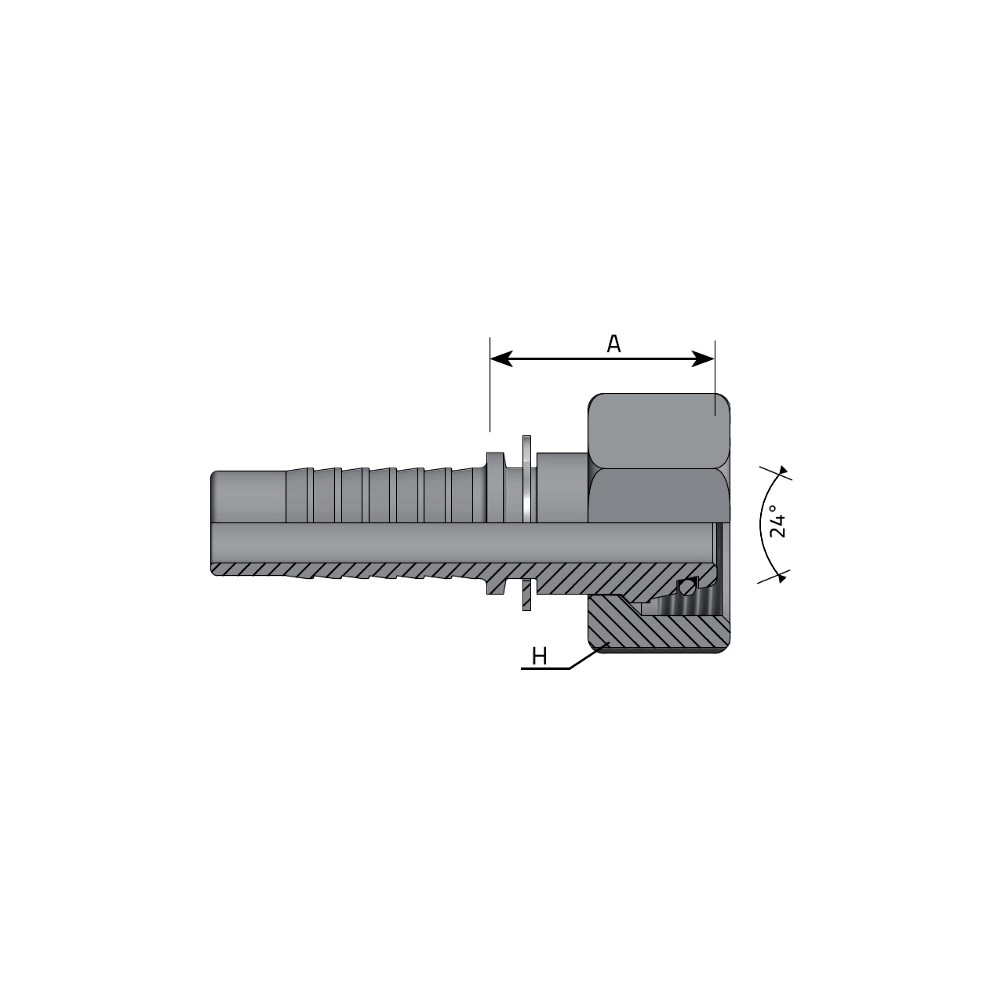

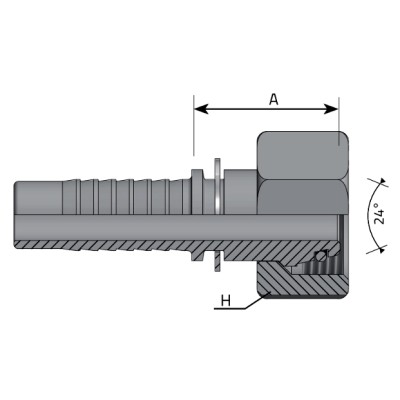

Hembra Giratoria Métrica con OFE0312L6-Ring 24º - Serie L

Ref.	Ref. Vitillo	D.N.	A	P. Trabajo (bar)	Diametro	Hexágono	Para Manguera	Rosca
06322-03-12	FE0312L6	5	25,5	250	6 mm	14	3/16	M 12
06322-03-14	FE0314L8	5	25,5	250	8 mm	17	3/16	M 14
06322-04-12	FE0412L6	6	21	250	6 mm	17	1/4	M 12
06322-04-14	FE0414L8	6	23,5	250	8 mm	17	1/4	M 14
06322-04-16	FE0416L10	6	26	250	10 mm	19	1/4	M 16
06322-04-18	FE0418L12	6	26	250	12 mm	22	1/4	M 18
06322-05-14	FE0514L8	8	21,5	250	8 mm	19	5/16	M 14
06322-05-16	FE0516L10	8	26	250	10 mm	19	5/16	M 16
06322-05-18	FE0518L12	8	26	250	12 mm	22	5/16	M 18
06322-06-16	FE0616L10	10	23,5	250	10 mm	19	3/8	M 16
06322-06-18	FE0618L12	10	26,5	250	12 mm	22	3/8	M 18
06322-06-22	FE0622L15	10	27	250	15 mm	27	3/8	M 22
06322-08-18	FE0818L12	13	25,5	250	12 mm	22	1/2	M 18
06322-08-22	FE0822L15	13	27,5	250	15 mm	27	1/2	M 22
06322-08-26	FE0826L18	13	28	160	18 mm	32	1/2	M 26
06322-10-22	FE1022L15	16	29	160	15 mm	32	5/8	M 22
06322-10-26	FE1026L18	16	30	160	18 mm	32	5/8	M 26
06322-10-30	FE1030L22	16	31	160	22 mm	36	5/8	M 30
06322-12-26	FE1226L18	20	29	160	18 mm	32	3/4	M 26
06322-12-30	FE1230L22	20	31	160	22 mm	36	3/4	M 30
06322-12-36	—	—	—	—	28 mm	—	3/4	36/200
06322-16-36	FE1636L28	25	33,5	100	28 mm	41	1	M 36
06322-16-45	—	—	—	—	—	—	1	45/200
06322-20-45	FE2045L35	32	38,5	100	35 mm	50	1 1/4	M 45
06322-24-52	FE2452L42	38	39	100	42 mm	60	1 1/2	M 52
